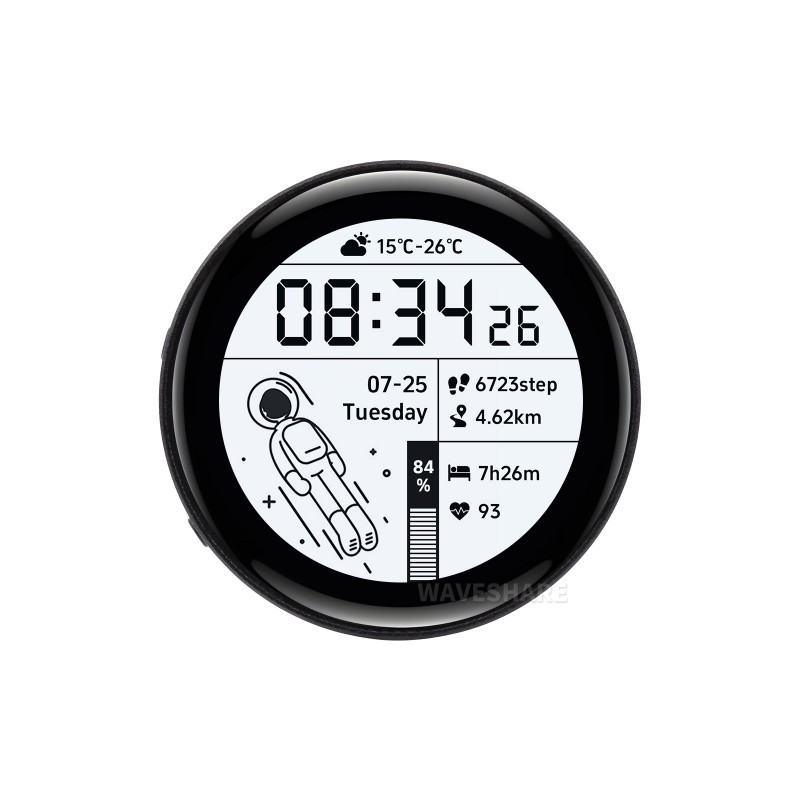

ESP32-S3-Touch-AMOLED-1.43-B is a complete development board with a high-resolution AMOLED display, equipped with a modern ESP32-S3 microcontroller with Wi-Fi and Bluetooth LE, sensors, and extensive communication interfaces. The CNC enclosure ensures durability and aesthetics, making the solution suitable for mobile applications, wearable devices, HMI controllers, and measurement and control systems.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-S3-Touch-AMOLED-1.43-B development board integrates the ESP32-S3R8 chip with a dual-core Xtensa LX7 processor clocked up to 240 MHz. It supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE, enabling rapid prototyping of HMI applications, wireless control, and IoT projects. It features a 1.43-inch AMOLED display with a resolution of 466×466 pixels, driven via a QSPI interface, and a capacitive touch panel controlled via an I2C bus. The board includes a QMI8658 motion sensor (IMU), PCF85063 real-time clock, TF card slot, lithium battery connector, and UART, I2C, and GPIO interfaces.

The board is delivered in a CNC aluminum enclosure with a matte finish, providing mechanical protection and an aesthetic appearance, ready for integration into mobile, wearable, and control applications.

Specifications

  • Microcontroller: ESP32-S3R8, dual-core Xtensa LX7, up to 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
  • AMOLED display: 1.43", 466×466, QSPI interface, 16.7 million colors
  • Capacitive touch panel: I2C, with interrupt support
  • Wireless: Wi-Fi 802.11 b/g/n 2.4 GHz, Bluetooth 5 LE, switchable internal/external antenna (via resistor)
  • IMU: QMI8658 (accelerometer and gyroscope)
  • RTC: PCF85063 with RTC battery connector
  • TF card slot: supports up to 16 GB
  • Battery connector: 3.7 V (MX1.25) with charge/discharge management
  • USB Type-C port: power, programming, debugging
  • Connectors: UART and I2C (SH1.0 4-pin), two 2×14 GPIO headers (1.27 mm pitch)
  • CNC aluminum enclosure: labeled ports, ready for mounting

Included

  • ESP32-S3-Touch-AMOLED-1.43-B x1
  • SH1.0 4PIN cable ~100 mm x2
