ESP32-P4-ETH Development Board Kit with 100 Mbps Ethernet, PoE and AI Speech + Camera - Waveshare 32089
ID: 1200125
zł127.51
Tax included
zł103.67 tax excl.
Development kit based on the high-performance ESP32-P4 microcontroller with a 100 Mbps Ethernet port, PoE support, and AI voice interaction. The KIT-A version includes the development board, PoE module, camera, and audio accessories, designed for HMI, edge computing, and IoT applications. Waveshare ESP32-P4-POE-ETH-KIT-A
Description
The development board included in the ESP32-P4-POE-ETH-KIT-A has been designed for applications requiring high computing performance, multimedia processing, and stable network communication. The core of the kit is the ESP32-P4 microcontroller with a dual-core 32-bit RISC-V architecture, offering advanced capabilities for image, audio, and data processing.

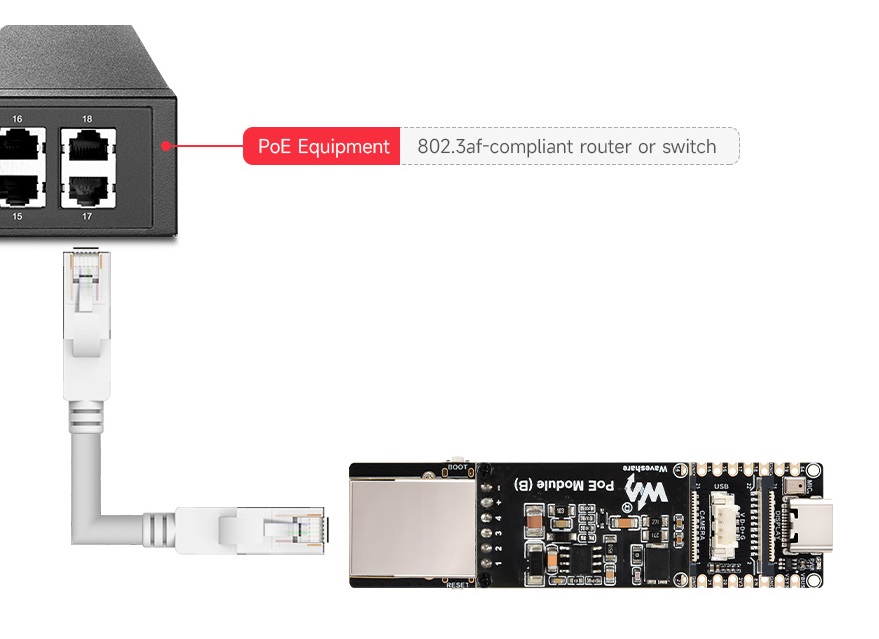

The board is equipped with a 100 Mbps RJ45 Ethernet port and supports Power over Ethernet (PoE), allowing simultaneous data transmission and power supply via a single Ethernet cable. Alternatively, the board can be powered via the USB Type-C port, which is also used for programming.
The set of interfaces includes MIPI-CSI for connecting cameras (including the supplied Raspberry Pi Camera B), MIPI-DSI for display support, USB OTG 2.0 High Speed, a TF (microSD) card slot, as well as microphone input and speaker output. As a result, the board is well suited for HMI projects, edge AI systems, image and speech recognition, and industrial automation.

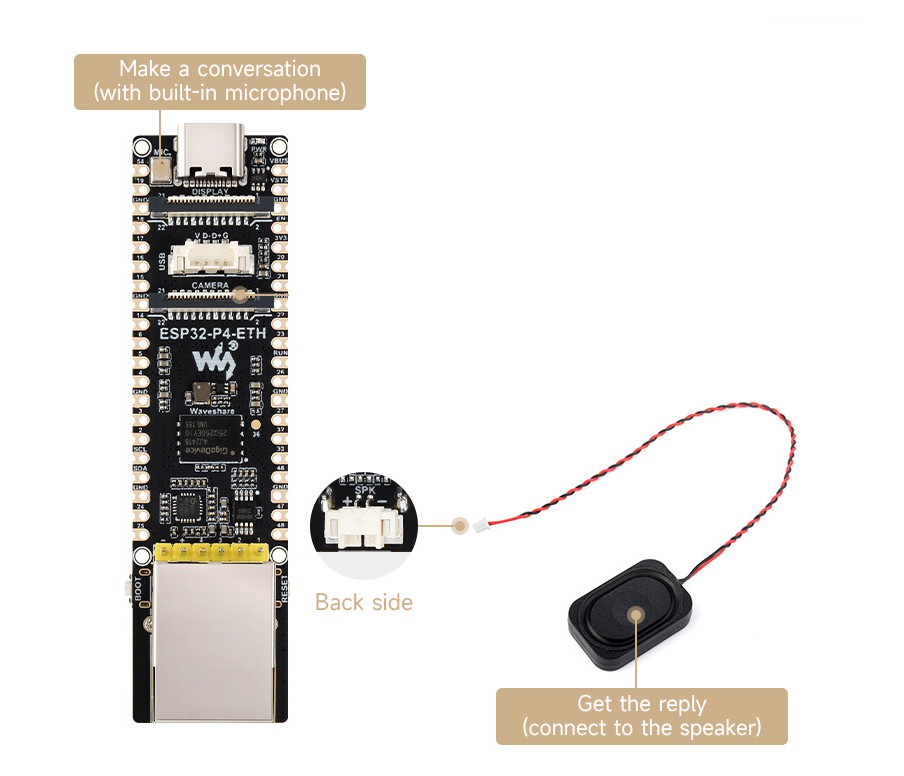

The KIT-A version does not include a touch display but provides full support for AI voice interaction thanks to the included speaker and onboard microphone.

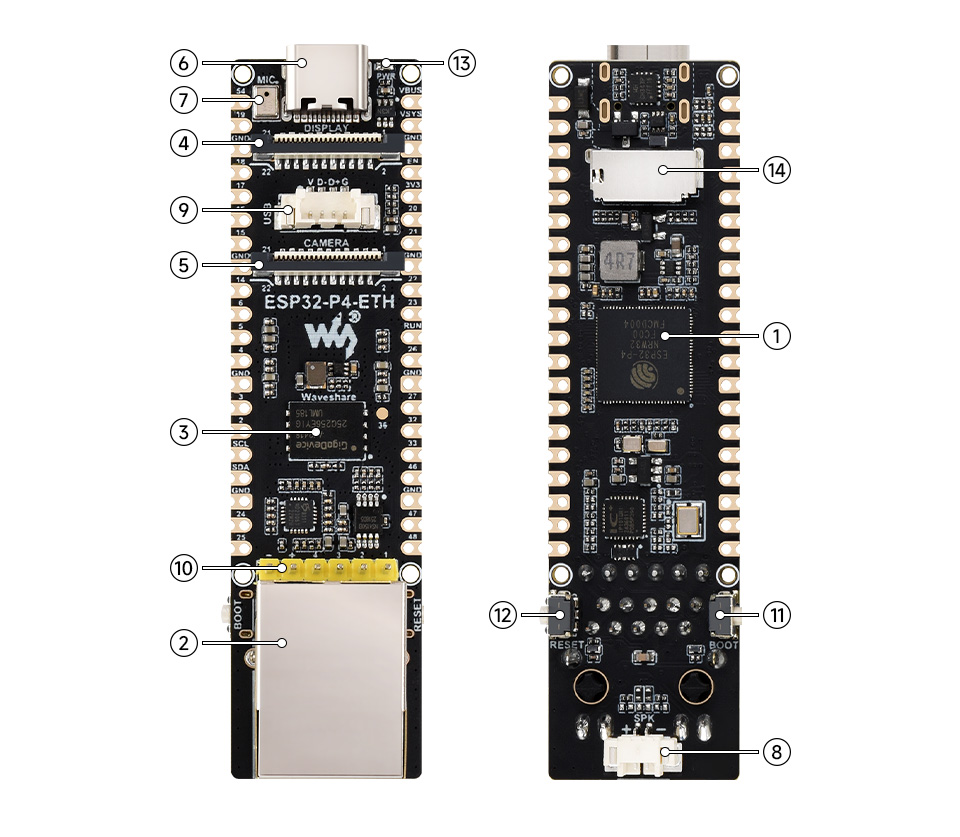

- ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
- 100M RJ45 Ethernet port
- 32MB Nor Flash
- Display interface - MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screens
- Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
- Type-C port - for power supply, program burning
- Onboard microphone
- Speaker header - MX1.25 2P connector, supports 80 2W speaker
- 4PIN USB header - USB OTG 2.0 High Speed interface
- PoE module & power supply header
- BOOT button - Press it when powering on or resetting to enter download mode
- RST Reset button
- Power indicator
- TF card slot - SDIO 3.0 interface protocol
Features
- Microcontroller: ESP32-P4
- Architecture: 32-bit RISC-V, dual-core
- PSRAM: 32 MB (integrated in ESP32-P4NRW32)
- Flash memory: 32 MB NOR
- Internal memory: 128 kB HP ROM, 16 kB LP ROM, 768 kB HP L2MEM, 32 kB LP SRAM, 8 kB TCM
- Networking: Ethernet RJ45 100 Mbps
- USB: USB Type-C (power supply and programming), USB OTG 2.0 High Speed
- Multimedia interfaces (supported by the board):
- MIPI-DSI (2-lane) – DSI display interface (display not included in KIT-A)
- MIPI-CSI (2-lane) – camera interface (Raspberry Pi Camera (B) included)
- Integrated ISP, hardware H.264 encoder, JPEG codecs, Pixel Processing Accelerator (PPA)
- Audio: onboard microphone, MX1.25 speaker connector (8 Ω / 2 W – speaker included)
- External storage: TF (microSD) card slot, SDIO 3.0

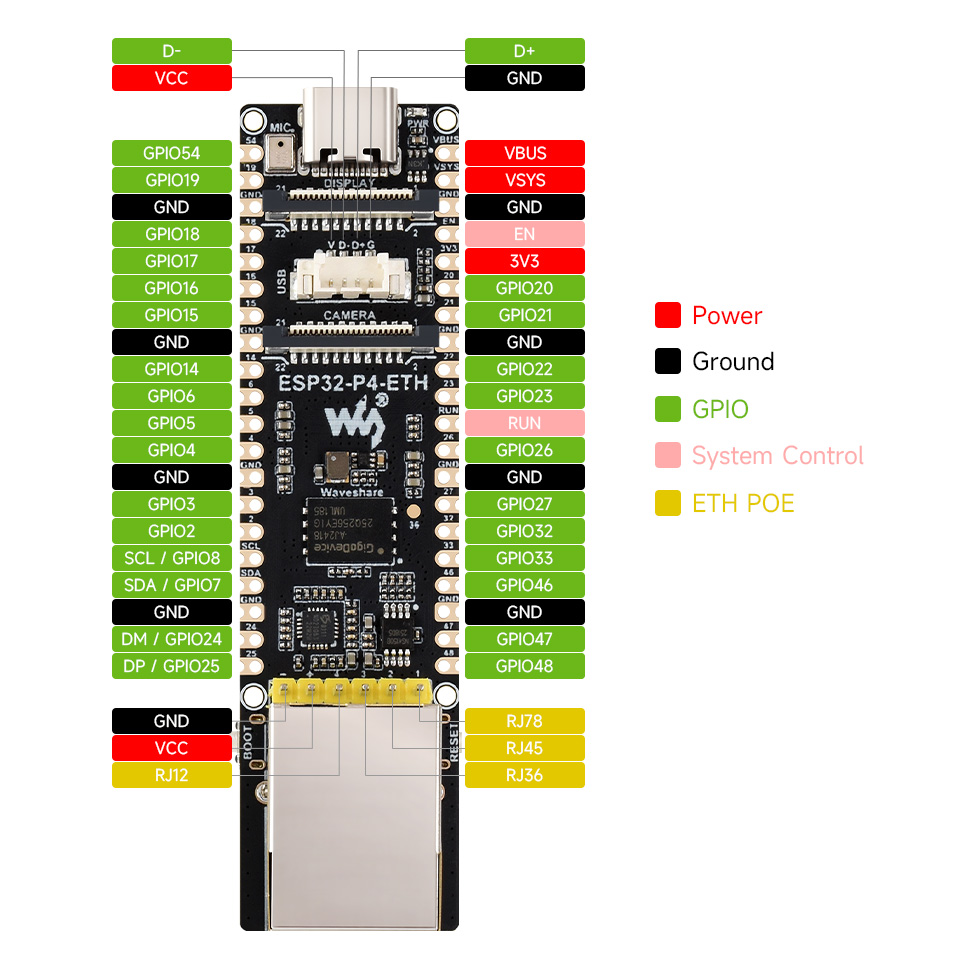

- GPIO: 2 × 20-pin headers, 27 programmable GPIO pins
- Security: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, hardware privilege separation
- Power supply: USB Type-C, PoE support
- Applications: HMI without display, camera-based image processing, edge computing, edge AI, industrial automation, IoT systems

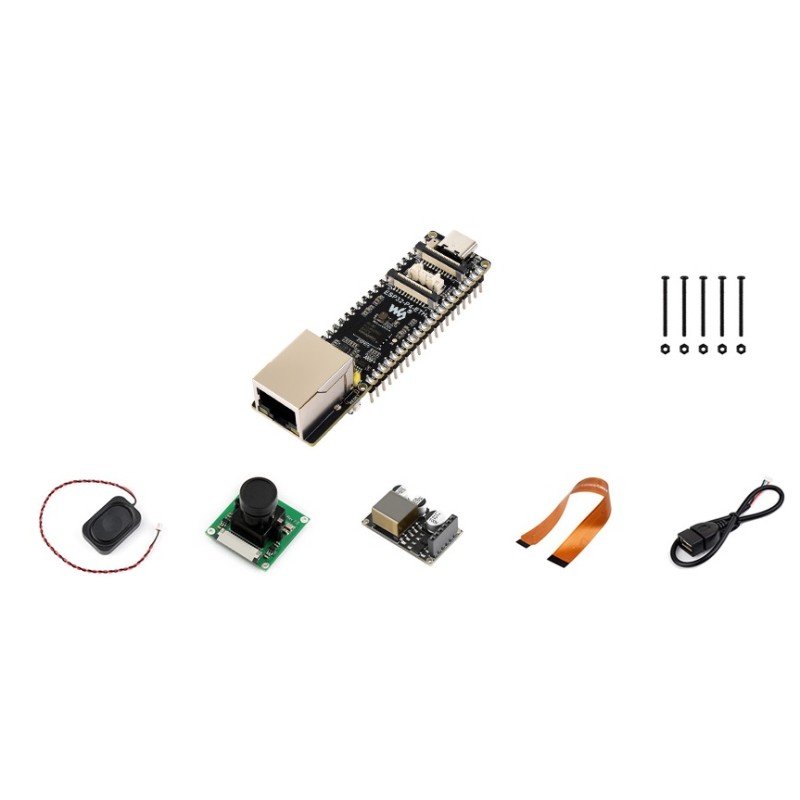

Kit includes
- ESP32-P4-ETH-M development board × 1
- PoE module × 1
- Screws pack × 1
- 8 Ω 2 W speaker × 1
- Pi 5 camera cable – 200 mm × 1
- FFC 15-pin cable × 1
- Raspberry Pi Camera (B) × 1
- MX1.25 4-pin to USB cable × 1
