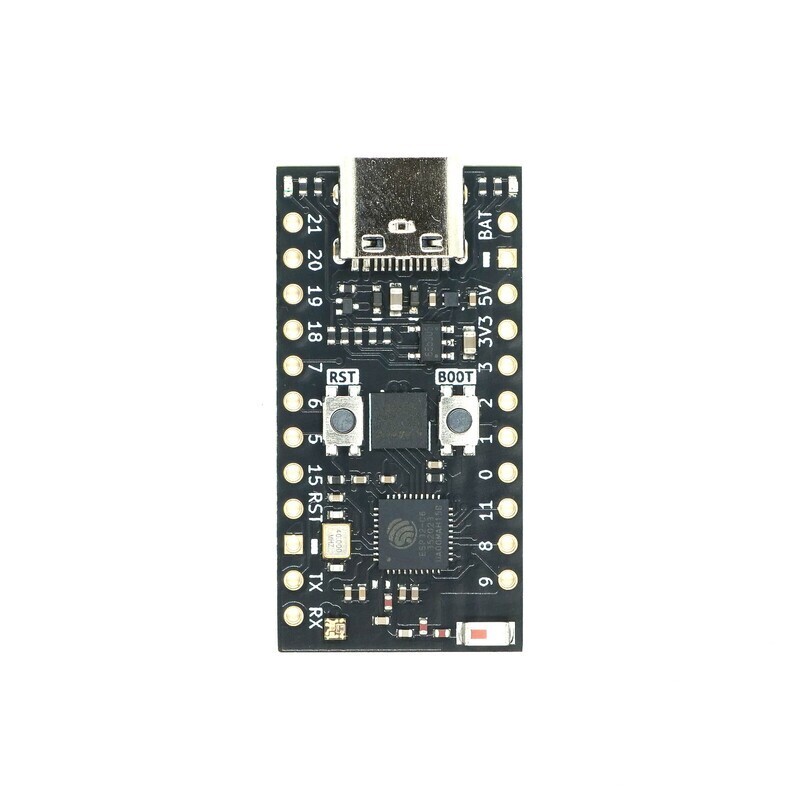

Main view
search
  • Main view
ID: 1201002
zł90.63
Tax included

zł73.68 tax excl.

This development board, based on the ESP32-C6 RISC-V microcontroller, combines high performance with energy efficiency. Equipped with a dual-core processor running at up to 160 MHz, it supports modern connectivity standards such as Wi-Fi 6, Bluetooth 5.3 LE, Zigbee, and Thread, making it an excellent platform for IoT projects and intelligent systems. The module features 8 MB of flash memory, a USB-C connector with short-circuit protection, and a LiPo battery charging circuit with voltage monitoring. TinyC6 ESP32-C6

24h
Available
Available quantity: 1

Description

TinyC6 is a modern development board based on the ESP32-C6 module and RISC-V architecture, offering exceptional performance, energy efficiency, and versatility in a compact form factor. Equipped with a dual-core RISC-V processor, combining high performance up to 160 MHz with low power consumption in eco mode (20 MHz), the module is an ideal solution for projects that require both computing power and energy efficiency.


The board supports the latest connectivity standards, including Wi-Fi 6 (802.11ax), Bluetooth 5.3 LE with Mesh support, as well as Zigbee and Thread (802.15.4), making it an excellent platform for IoT systems, smart home devices, and industrial applications. With built-in 8 MB QSPI Flash memory and an integrated 3.3 V regulator rated at 700 mA, it ensures reliable operation across a wide range of use cases. The module is equipped with a USB-C connector featuring reverse-voltage protection, ensuring safety during power supply and programming. The board also includes JST pads for connecting a LiPo battery, along with a built-in charging circuit and voltage monitoring for VBAT as well as 5 V presence detection.

The TinyC6 offers 17 GPIO pins enabling communication through UART, JTAG, SPI, I2C, and other interfaces. Additionally, the board includes an RGB LED as well as dedicated Power (red) and Charge (orange) LEDs indicating power and charging status. The optimized design allows for low power consumption in sleep mode, making the device ideal for battery-powered systems. The module is compact and easy to integrate into existing projects. It is fully compatible with earlier TinyPICO, TinyS2, and TinyS3 models, allowing for seamless project and code migration without hardware changes.


Features

  • Main processor: 32-bit RISC-V, up to 160 MHz
  • Low-power processor: 32-bit RISC-V, 20 MHz
  • Connectivity: Wi-Fi 6 (802.11ax), Bluetooth 5.3 LE + Mesh, Zigbee and Thread (802.15.4)
  • Flash memory: 8 MB QSPI
  • Regulator: 3.3 V LDO, 700 mA
  • Connector: USB-C with reverse-voltage protection
  • LiPo battery charging support
  • JST pads on the underside (compatible with PH plug)
  • LED indicators: Power (red), Charge (orange), RGB (low current)
  • VBAT voltage and 5 V presence detection
  • Number of GPIOs: 17
  • Interfaces: UART, JTAG, I2C, SPI
  • Antenna 3D
  • Deep sleep current draw: ultra low
  • Dimensions: 35 × 17.8 mm
  • Compatibility: TinyPICO, TinyS2, TinyS3
