Development kit with ESP32-P4 and ESP32-C6, Wi-Fi 6, Bluetooth 5, 32 MB PSRAM, 5 MP camera, Ethernet, audio – Waveshare 32055
search
  • Development kit with ESP32-P4 and ESP32-C6, Wi-Fi 6, Bluetooth 5, 32 MB PSRAM, 5 MP camera, Ethernet, audio – Waveshare 32055
  • ESP32-P4-WIFI6-DEV-KIT-A
  • ESP32-P4-WIFI6-DEV-KIT-A
  • ESP32-P4-WIFI6-DEV-KIT-A
  • ESP32-P4-WIFI6-DEV-KIT-A
ID: 1201089
zł144.80
Tax included

zł117.72 tax excl.

ESP32-P4-WIFI6-DEV-KIT-A is an advanced development kit with a 5 MP camera and Wi-Fi 6 support, intended for implementing HMI projects, voice control, vision systems and network applications. The integration of multimedia interfaces, Ethernet and hardware security enables the creation of modern, high-performance IoT systems.

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-P4-WIFI6-DEV-KIT-A is an extended version of the development board based on the ESP32-P4 chip with a dual-core RISC-V processor, supported by the ESP32-C6 providing Wi-Fi 6 (2.4 GHz) and Bluetooth 5/BLE. Integrated 32 MB PSRAM and 16 MB Flash memory allow implementing complex IoT projects, image and sound processing, edge applications and HMI interfaces.

The kit includes a 5 MP OV5647 camera (MIPI-CSI interface), 8 Ω 2 W speaker and a complete set of connection cables. The board offers a 100 Mb/s Ethernet port, microSD card slot (SDIO 3.0), USB OTG 2.0 (HOST/DEVICE), MIPI-DSI, I2C, I3C interfaces, microphone, 3.5 mm audio jack and a full 40-pin GPIO header.

ESP32-P4-WIFI6-DEV-KIT-A enables creating solutions with access to AI platforms, as well as PoE support via an external module (not included in the kit). It supports security mechanisms such as Secure Boot, Flash Encryption and TRNG.

Properties

  • ESP32-P4 with 400 MHz RISC-V processor (dual-core), 32 MB PSRAM, 16 MB Flash
  • ESP32-C6 for Wi-Fi 6 and Bluetooth 5/BLE communication (SDIO interface)
  • OV5647 5 MP camera, MIPI-CSI interface, manual focus adjustment
  • RJ45 100 Mb/s Ethernet port
  • microSD card slot (SDIO 3.0)
  • MIPI-CSI, MIPI-DSI, USB OTG 2.0, I2C, I3C interfaces
  • Microphone, 3.5 mm audio jack output, MX1.25 speaker connector (8 Ω, 2 W)
  • Power via USB-C or PoE module (connector for external PoE HAT)

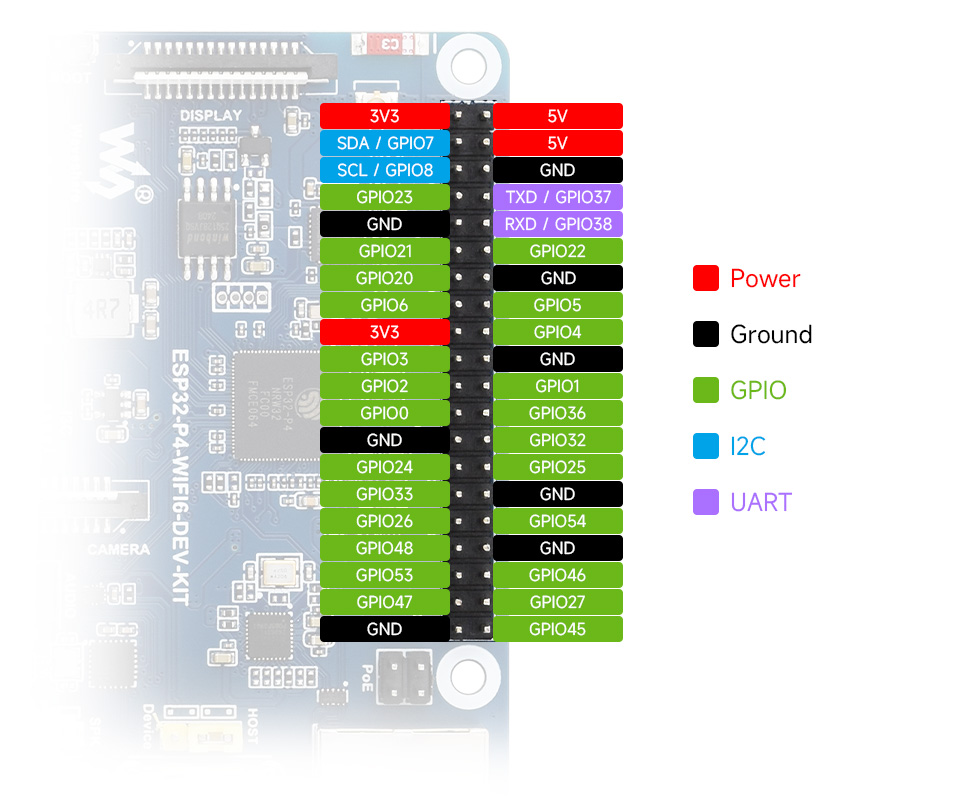

  • 40-pin GPIO header, 28 programmable I/O pins
  • RTC with rechargeable backup battery connection
  • Security mechanisms: Secure Boot, Flash Encryption, TRNG
  • Board dimensions: 85 × 56.5 mm

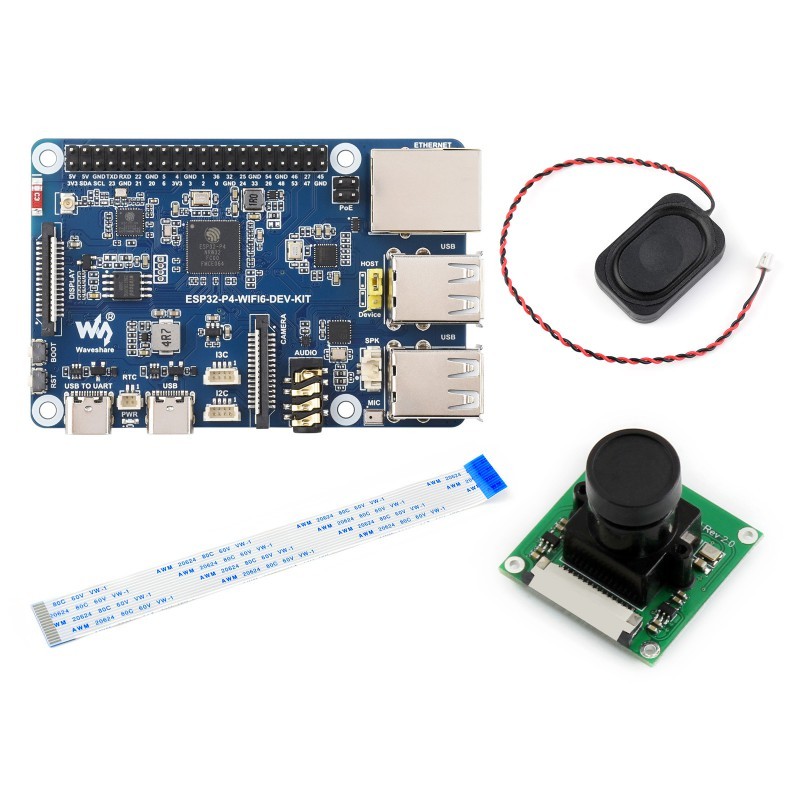

Included

  • ESP32-P4-WIFI6-DEV-KIT x1
  • 8 Ω 2 W speaker x1
  • Raspberry Pi Camera (B) 5 MP x1
  • FFC cable 15-PIN x1
  • SH1.0 4-PIN cable ~150 mm x2
