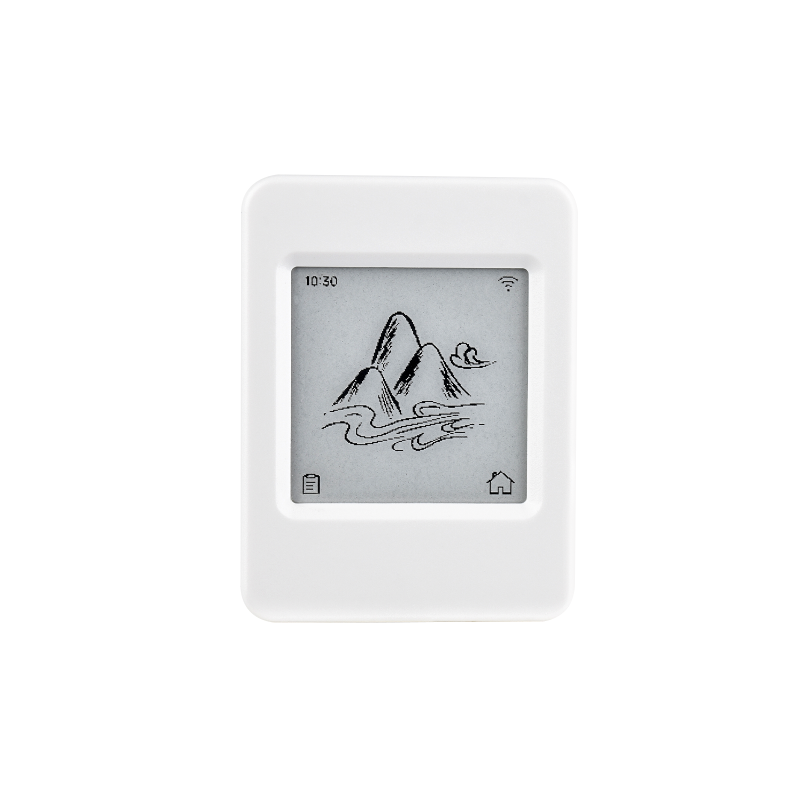

ESP32-S3-ePaper-1.54 is a compact and energy-efficient development board with an e-paper display, wireless communication and audio features. Designed for portable applications, voice interfaces and information devices, it serves as a universal development platform for IoT projects.

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3-ePaper-1.54 is an energy-efficient AIoT board with a 1.54" e-paper display with a resolution of 200 × 200 pixels, intended for portable projects and applications requiring long battery life. Built on the ESP32-S3 microcontroller with a dual-core Xtensa LX7 processor (up to 240 MHz), it supports 2.4 GHz Wi-Fi and Bluetooth 5 LE. The board includes a microphone, ES8311 audio codec, SHTC3 temperature and humidity sensor, microSD card reader and a 3.7 V battery charging circuit. The board also offers GPIO, UART, I2C connectors and two programmable buttons (BOOT, PWR). The e-paper display provides excellent readability in daylight and near-zero power consumption in static mode.

Properties

  • Microcontroller ESP32-S3-FH4R2 (2× Xtensa LX7, 240 MHz)
  • Memory: 512 KB SRAM, 384 KB ROM, integrated Flash and PSRAM
  • E-paper display 1.54", 200 × 200 px, black and white
  • E Ink technology (passive display, high contrast, viewing angle >170°)
  • Full refresh time: 2 s, partial: 0.3 s
  • Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5 LE
  • MEMS microphone + ES8311 audio codec
  • SHTC3 temperature and humidity sensor
  • RTC PCF85063 (on bottom of board)
  • MicroSD (TF) slot, FAT32
  • 3.7 V lithium battery connector (MX1.25 2-pin) with charging circuit
  • Speaker connector MX1.25 2-pin
  • USB Type-C connector for programming and data transmission
  • BOOT and PWR buttons (programmable)
  • 2 × 6-pin female headers 2.54 mm (GPIO/UART/I2C)
  • Built-in ceramic antennaDimensions: 53.0 × 39.8 × 16.9 mm
  • Display area: 27.8 × 27.8 mm
  • Connector and button layout consistent with technical documentation

Included

  • ESP32-S3-ePaper-1.54 ×1
  • 3.7 V lithium battery
