Advanced kit with ESP32-P4, Wi-Fi 6, 10.1" DSI display, 5 MP camera, speaker, cables and accessories - Waveshare 32057
search
  • Advanced kit with ESP32-P4, Wi-Fi 6, 10.1" DSI display, 5 MP camera, speaker, cables and accessories - Waveshare 32057
  • ESP32-P4-WIFI6-DEV-KIT-C
  • ESP32-P4-WIFI6-DEV-KIT-C
  • ESP32-P4-WIFI6-DEV-KIT-C
  • ESP32-P4-WIFI6-DEV-KIT-C
ID: 1201087
zł360.00
Tax included

zł292.68 tax excl.

ESP32-P4-WIFI6-DEV-KIT-C is the most comprehensive kit with a 10.1" display, camera and full audio-video support, dedicated to HMI applications, intelligent control systems and interactive IoT devices. It provides high performance, multi-protocol connectivity and integration capabilities with AI platforms and industrial-grade security systems.

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-P4-WIFI6-DEV-KIT-C is the most advanced development kit in the ESP32-P4-WIFI6-DEV-KIT series, combining high computing power, Wi-Fi 6 connectivity, multimedia support and advanced HMI interfaces. The main board based on the ESP32-P4 chip (RISC-V, 400 MHz) works with the ESP32-C6 module responsible for wireless connectivity (Wi-Fi 6 and BLE).

The kit includes a 10.1-inch IPS touch display with a resolution of 800×1280 pixels and a MIPI-DSI interface, an OV5647 camera (5 MP, MIPI-CSI interface), an 8 Ω 2 W speaker and a full set of cables and mounting hardware. The board features an Ethernet port, USB OTG connectors, 3.5 mm audio jack output, microphone, microSD slot, 40-pin GPIO header and interfaces for display and camera support.

The device can be powered via USB-C or an external PoE module (not included) and supports AI platforms, voice interaction and advanced hardware security features (Secure Boot, Flash Encryption, TRNG).

Properties

  • ESP32-P4 with dual-core RISC-V 400 MHz processor, 32 MB PSRAM, 16 MB Flash
  • ESP32-C6 – Wi-Fi 6 (2.4 GHz) and Bluetooth 5/BLE via SDIO
  • 10.1″ IPS touch display, 800×1280 px, 10-point capacitive touch (MIPI-DSI)
  • Raspberry Pi Camera (B) OV5647 5 MP, MIPI-CSI interface
  • RJ45 Ethernet port 100 Mb/s
  • USB OTG 2.0 (2× USB-A), USB-C (programming/power)
  • microSD slot (SDIO 3.0), 3.5 mm audio jack output, MEMS microphone
  • Speaker connector (MX1.25, 8 Ω 2 W)
  • 40-pin GPIO header, 28 programmable pins
  • Interfaces: MIPI-CSI, MIPI-DSI, I2C, I3C
  • RTC with rechargeable backup battery support
  • PoE support via PoE HAT connector (module not included)
  • AI platform and voice interaction support
  • Security mechanisms: Secure Boot, Flash Encryption, TRNG
  • Main board dimensions: 85 × 56.5 mm

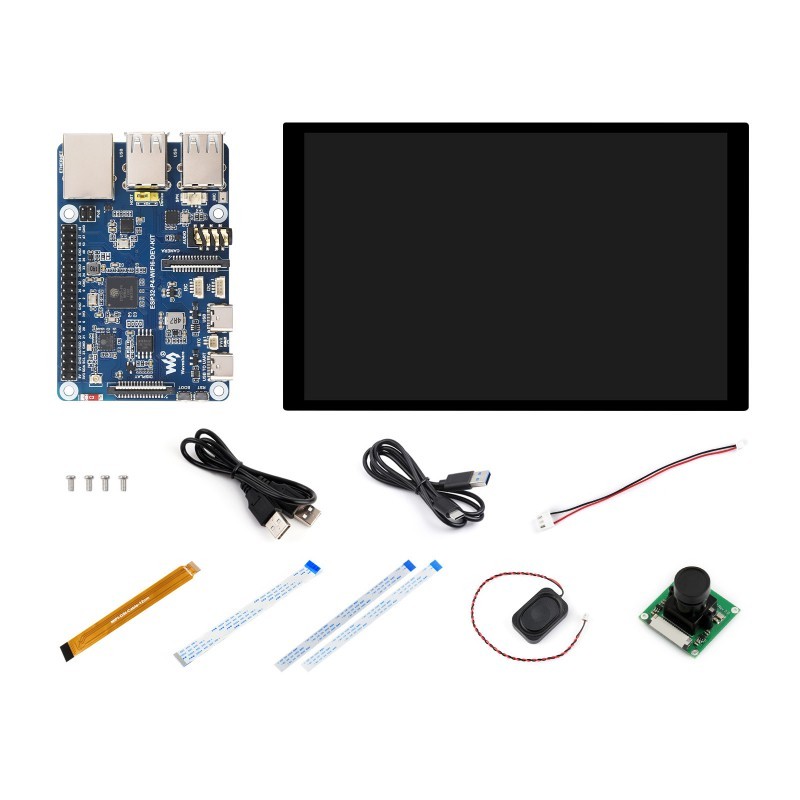

Included

  • ESP32-P4-WIFI6-DEV-KIT x1
  • 10.1" IPS touchscreen display, 800×1280 px, MIPI-DSI x1
  • Raspberry Pi Camera (B) 5 MP OV5647 x1
  • 8 Ω 2 W speaker x1
  • FFC cable for camera x1
  • 2× FFC cable for display x2
  • USB-C cable x1
  • USB-A to microUSB cable x1
  • SH1.0 4-PIN cable x1
  • Set of mounting screws x1
