Wi-Fi 6 multimedia kit with ESP32-P4 and ESP32-C6, 32 MB PSRAM, 32 MB Flash, 10.1" display, camera and speaker - Waveshare 32022
ID: 1201092
zł337.51
Tax included
zł274.40 tax excl.
ESP32-P4-WIFI6-KIT-B is a comprehensive kit with a touch display and camera, enabling the creation of advanced user interfaces, control systems and IoT applications with multimedia and voice data processing. It provides Wi-Fi 6 and BLE connectivity and advanced security mechanisms.
Description
ESP32-P4-WIFI6-KIT-B is the most advanced version of the development kit based on the ESP32-P4-WIFI6-M board with soldered connectors, intended for multimedia projects, HMI interfaces and voice control. The integrated ESP32-P4 system with a dual-core 400 MHz RISC-V processor handles advanced image and sound processing, supported by 32 MB PSRAM and 32 MB Flash memory. The ESP32-C6 module provides Wi-Fi 6 (2.4 GHz) and Bluetooth 5/BLE connectivity via the SDIO interface.
The board equipped with MIPI-DSI and MIPI-CSI interfaces supports a 10.1" IPS touchscreen display and a 5 MP OV5647 camera. The built-in microphone and 8 Ω 2 W speaker connector enable full voice interaction support. The 40-pin GPIO header is compatible with some Raspberry Pi Pico add-ons, and the rich set of peripheral connectors (USB OTG 2.0, I2S, SPI, UART, I2C, PWM, SDIO 3.0) supports the implementation of advanced projects.
The kit enables rapid prototyping of user interfaces, edge applications and control systems with a high level of security, thanks to mechanisms such as Secure Boot, Flash Encryption, TRNG and hardware access control.
Properties
- ESP32-P4 with RISC-V 400 MHz processor (dual-core)
- ESP32-C6 for Wi-Fi 6 and Bluetooth 5/BLE support (SDIO interface)
- 32 MB PSRAM and 32 MB Flash memory
- 10.1” IPS display with MIPI-DSI interface, 800×1280 resolution, 10-point touch
- Raspberry Pi Camera (B) 5 MP OV5647 with manual focus adjustment (MIPI-CSI)
- Built-in microphone, connector for 8 Ω 2 W speaker (MX1.25)
- Interfaces: USB OTG 2.0, SDIO 3.0, I2S, SPI, I2C, UART, PWM, ADC
- Multimedia processing support: JPEG Codec, H.264 encoder, Pixel Processing Accelerator

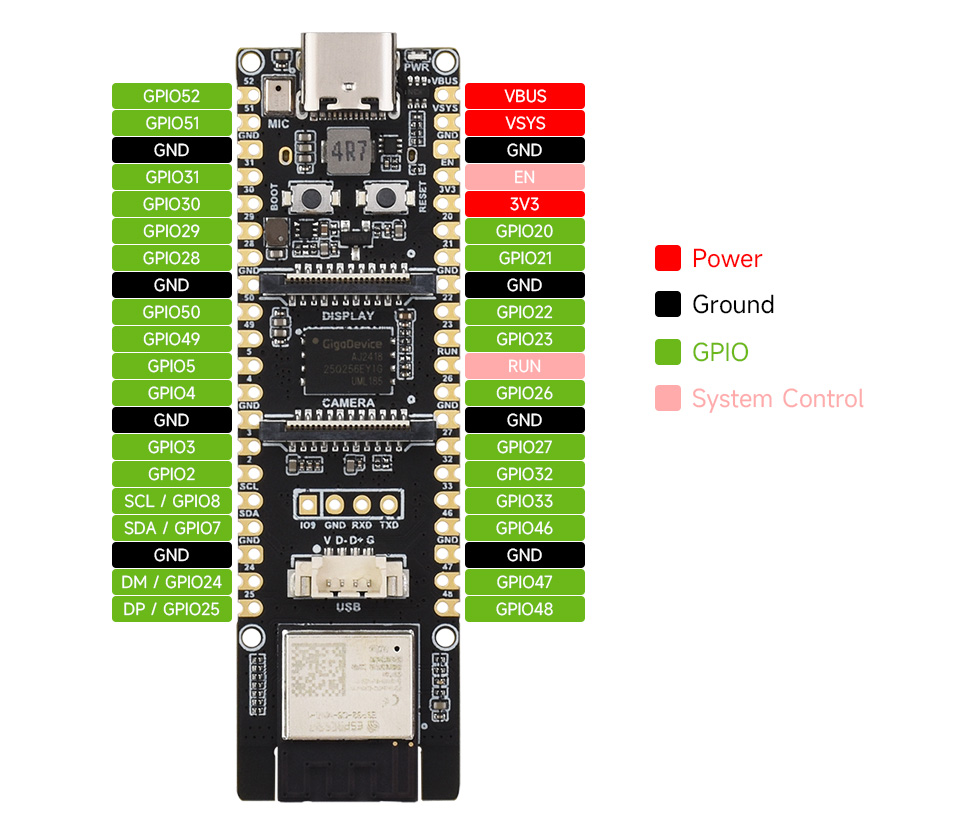

- 40-pin GPIO header compatible with Raspberry Pi Pico
- Security mechanisms: Secure Boot, Flash Encryption, TRNG, access control
- USB Type-C connector for power and programming
- Support for AI voice interaction through external platforms (e.g. DeepSeek, Doubao)

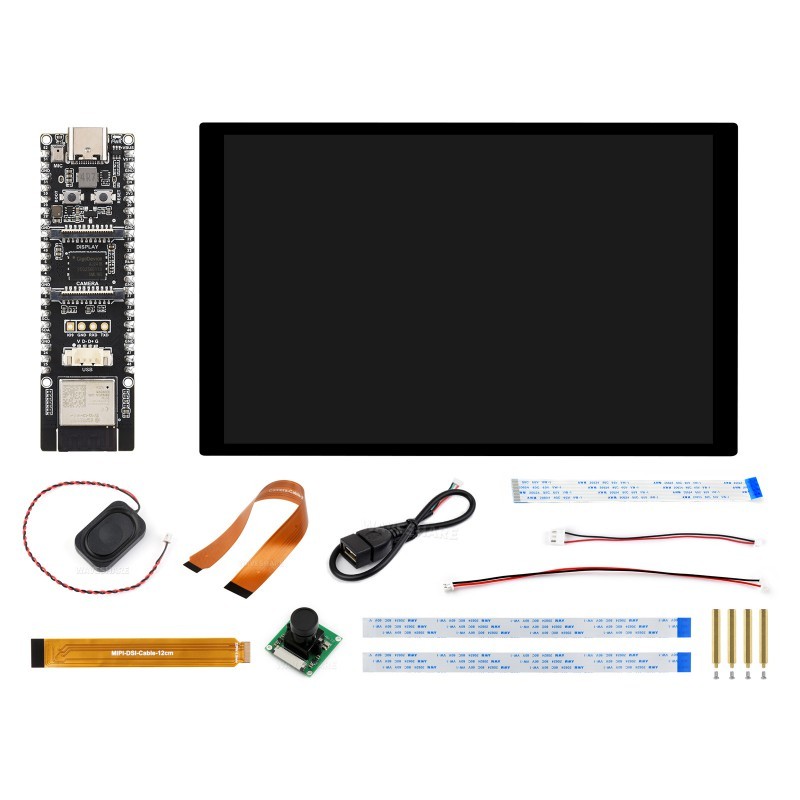

Included
- ESP32-P4-WIFI6-M with soldered connectors x1
- 10.1" IPS DSI touchscreen display, 800×1280 px x1
- Raspberry Pi Camera (B) 5 MP x1
- 8 Ω 2 W speaker x1
- Pi5-Camera-Cable 200 mm x1
- FFC cable 15-PIN x1
- USB 4-PIN MX1.25 cable x1
1201092
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Development board with ESP32 chip with WiFi and Bluetooth communication. Equipped with a microSD card slot, USB Type-C connector for programming and Ardunio Uno Rev3 compatible connectors and Qwiic connector. SparkFun WRL-19177
zł174.70
3 weeks
No product available!
A small DIP adapter with a 2.54 mm goldpin connector. Designed for the ESP-01 and ESP-01S modules
zł2.58
24h
Available quantity: 39
Available
Development board based on Bluetooth Low Energy and IEEE 802.15.4 ESP32-H2-MINI-1 module. The ESP32-H2-MINI-1 integrates a 2.4GHz transceiver compliant with Bluetooth Low Energy and IEEE 802.15.4 technologies, supporting Bluetooth 5 (LE), Bluetooth Mesh, Thread, Matter, and Zigbee. Espressif Systems ESP32-H2-DevKitM-1-N4
zł59.90
24h
Available quantity: 14
Available
ESP32-C6-Touch-LCD-1.9 is an advanced development board with a 1.9" touch display, based on the ESP32-C6FH8 microcontroller with support for Wi-Fi 6, Bluetooth 5, and capacitive touch. With integration of a 6-axis IMU, TF card slot, and battery connector, it enables the creation of interactive applications in the fields of HMI, motion tracking, portable devices, and control systems, with full support for modern development environments.
zł86.35
24h
Available quantity: 3
Available

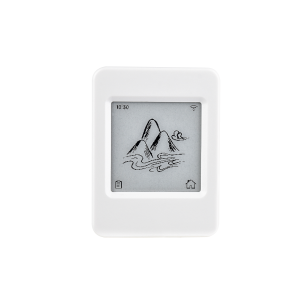

ESP32-S3-ePaper-1.54 is a compact and energy-efficient development board with an e-paper display, wireless communication and audio features. Designed for portable applications, voice interfaces and information devices, it serves as a universal development platform for IoT projects.
zł84.16
6 weeks
No product available!
ESP32-S3-Touch-AMOLED-1.8-EN is a high-performance, compact module with an AMOLED display and capacitive touch, designed for creating modern user interfaces in wearable devices, portable data acquisition systems, IoT controllers, and solutions with gesture and voice interaction. Thanks to advanced power management and rich peripheral features, it is well-suited for projects requiring independent power supply and high integration.
zł129.11
4 weeks
No product available!
Miniature, multifunctional controller based on ESP32-S3 with WiFi, color IPS display and 9-axis sensors, designed for compact IoT and educational projects. With rich interface options and improved connectivity, it is an ideal solution for embedded applications and wireless control. M5stack C126
zł94.54
24h
Available quantity: 1
Available
Development board with WiFi / Bluetooth Espressif ESP32-WROVER module. The board is equipped with numerous peripheral systems, eg SD card slot, audio codec, a series of LEDs controlled by one line and a 9-axis IMU system. TTGO TAudio V1.5 ESP32-WROVER
zł136.15
4 weeks
No product available!
The low-power consumption micro-controller intentionally designed for Internet of Things (IoT) projects. The board integrates a Dual-Core ESP-WROOM-32 module, which supports MCU and Wi-Fi &Bluetooth dual-mode communication. DFR0478
zł54.07
24h
Available quantity: 5
Available
The development board allows you to easily use the capabilities of ESP32 (Wi-Fi + Bluetooth BLE) from Espressif. There is a USB / UART converter on the board, and most of the GPIO line of the ESP-WROOM-32D module has been connected to pins with a pitch of 2.54mm. ESP32-DevKitC V4
zł28.17
24h
Available quantity: 72
Available
M5Stack series development kit equipped with WiFi and Bluetooth ESP32 module. It will work in IoT-related projects, as a STEM educational module or in Smart Home devices. M5Stack K010
zł249.00
24h
Available quantity: 1
Available
Development kit from the M5Stack series equipped with the ESP32-S3 module. It will work well in projects related to IoT or in "wearable" devices. M5 Stack C124
zł48.90
24h
Available quantity: 3
Available
A compact development board based on the ESP32-WROOM-32, offering 2.4 GHz Wi-Fi, Bluetooth, and a dual-core 240 MHz processor with 4 MB FLASH and 4 MB RAM. It is compatible with the WeMos Mini family of boards and supports popular shields, making it a universal solution for IoT projects. With a built-in USB–UART converter and support for the Arduino IDE, it provides easy programming and integration. ESP32 D1 mini
zł39.29
24h
Available quantity: 4
Available

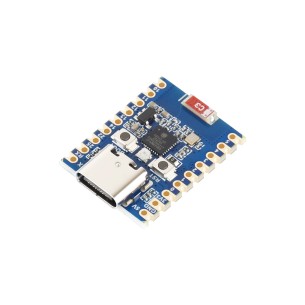

ESP32-H2-Zero is a miniature development board with the ESP32-H2FH4S microcontroller, offering support for BLE 5, Zigbee and Thread, intended for IoT applications and wireless communication in compact embedded systems. Thanks to extensive peripherals and support for ESP-IDF and Arduino, it is a universal tool for rapid prototyping and application deployment.
