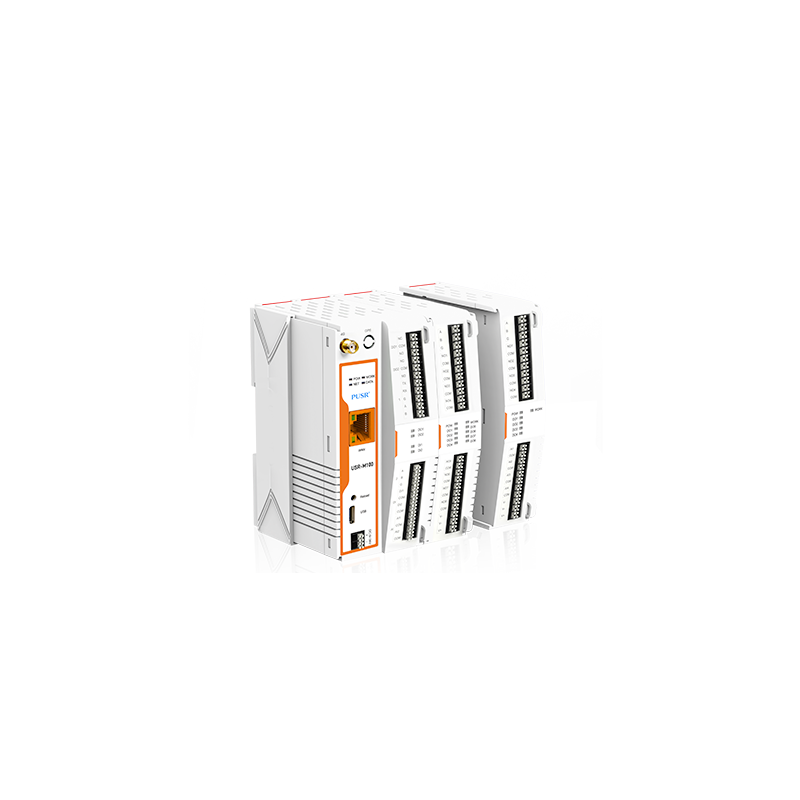

USR-M100-HMGL - Remote I/O edge gateway with LTE Cat4 and Ethernet communication
ID: 1200627
zł539.04
Tax included
zł438.24 tax excl.
USR-M100-HMGL is an edge gateway with LTE and Ethernet communication, serial ports, and I/O inputs/outputs, designed for automation, monitoring, and remote industrial applications. Thanks to support for industrial protocols and IoT platforms, it enables full integration of local devices with cloud systems.
Description
USR-M100-HMGL is an industrial communication gateway that enables the integration of input/output (I/O) signals, serial transmission, and industrial protocol data with cloud platforms. Equipped with an LTE Cat4 interface and a 10/100 Mbps Ethernet port, it provides connectivity to both local and remote systems. It supports edge computing, enabling local data analysis and filtering before transmission, which reduces latency and offloads central servers.
The gateway features two digital inputs (DI), two analog inputs (AI), two relay outputs (DO), and two serial ports (RS232/RS485). It can operate using MQTT, Modbus RTU/TCP, TCP, UDP, HTTP, JSON, and WebSocket protocols. Its compact and robust design with DIN rail mounting allows deployment in industrial environments with high thermal and electrical requirements.
Properties
- 1 × Ethernet 10/100 Mbps port, auto MDI/MDIX
- LTE Cat4 wireless communication
- 1 × RS232/RS485 port and 1 × RS485 port
- 2 × digital inputs (DI)
- 2 × analog inputs (AI) 4–20 mA
- 2 × digital outputs (DO), relay 10 A / 28 V DC or 10 A / 277 V AC
- Supported protocols: Modbus RTU/TCP, MQTT, JSON, TCP, UDP, HTTP, WebSocket
- Edge computing support
- Compatible with IoT platforms: AWS IoT, Microsoft Azure, Alibaba Cloud, ThingsBoard
- Power supply: 9–36 V DC, protection against reverse polarity and surges
- Power consumption: idle <2.4 W, maximum <4.8 W
- Operating temperature range: –40°C to +75°C
- Mounting: DIN rail or wall-mounted
