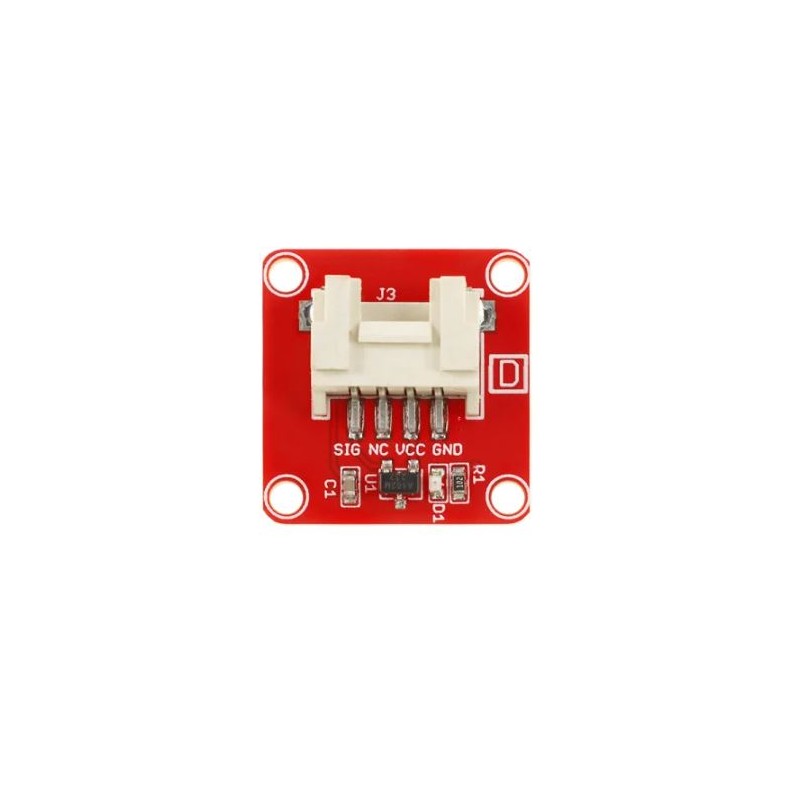

Crowtail Hall Sensor 2.0 - Hall effect sensor module

The DRV5032 Hall Effect Magnetic Field Detection Module is an energy-efficient module for IoT projects, positioning systems, and battery-powered devices. With its digital output, compact design, and wide supply voltage range (1.65 to 5.5 V), it can be easily integrated into a variety of applications, offering magnet detection without the need for continuous power consumption. Adafruit 6051

TMAG5273 Hall sensor module dedicated to detecting the presence, strength and direction of a magnetic field in three dimensions. It uses communication via the I2C interface and Qwiic connectors. SparkFun SEN-23880

TMAG5273 Hall sensor module dedicated to detecting the presence, strength and direction of a magnetic field in three dimensions. It uses communication via the I2C interface and Qwiic connectors. SparkFun SEN-23881

The TLE5012B precision magnetic encoder with sensor offers angle measurement in the 0–360° range with a resolution of 4096 CPR. Its compact design and low current consumption of 14 mA make it ideal for projects requiring energy efficiency and reliability. It is compatible with motor control systems such as ODrive, as well as robotics and industrial applications. Makerbase MKS TLE5012B

The compact KY-003 Hall sensor module is capable of detecting magnetic fields, making it ideal for measuring rotational speeds and for automation and robotics applications.

The Hall sensor module allows magnetic field detection, can be used to measure angle of rotation, displacement, mechanical vibrations, etc. The module has a connector in accordance with the Grove standard. Seeed studio 101020046

This module can be applied to motor speed measurement, objective position detection, smart car, electronic building blocks, etc.

A high-precision 12-bit magnetic encoder that provides accurate angle measurement from 0 to 360°. It supports I2C and PWM interfaces for easy integration with microcontrollers and control systems. Powered by 5V and featuring 1024-bit analog resolution, it\'s ideal for projects requiring smooth and stable operation. Makerbase MKS AS5600

The module with A3244 Hall sensor and comparator allows you to detect the presence of a magnetic field. It can be used for applications such as rotation detection, position monitoring and alarm systems

Module with Hall sensor, allows for magnetic field detection, can be used to measure angle of rotation, displacement, mechanical vibrations, etc. The module has a connector in accordance with the Gravity standard. DFRobot SEN0185

Module with three Hall sensors A3144E, which react to the failure of the magnet. It is powered with 5 V and has a digital output on the Grove connector. M5Stack U084

Module with a magnetic sensor based on the CT10 reed switch. CT10 is a unipolar reed switch, normally open. The sensor reacts to the action of an electromagnet, permanent magnet or a combination thereof. The module has a connector in accordance with the Grove standard. Seeedstudio 101020038

Hall sensor module. It has a digital output on the XH2.54 connector

HSTS016L Hall Sensor. Enables measurement of high AC and DC currents up to 20 A. modHSTS016L

Module with hall sensor A3144, analog and digital output from comparator, RoHS

Module with a matrix of 64 Hall sensors, which enables the conversion of magnetic fields into a visual spectrum. SparkFun SPX-14652
