- New

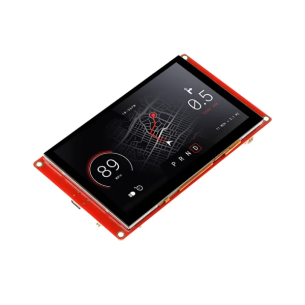

CrowPanel 5.0"-HMI - HMI display with ESP32-S3 module (with case)
ID: 1201160
zł154.30
Tax included
zł125.45 tax excl.
This ESP32-S3-WROOM-1-N4R8 touchscreen display combines high performance with flexible application flexibility. Its 5-inch TFT-LCD screen with 800x480 px resolution and capacitive touch ensures precise operation and a clear image. The device offers Wi-Fi and Bluetooth connectivity, supports LVGL, openHASP, and the popular Arduino IDE, PlatformIO, and MicroPython environments. With USB-C, TF, UART, and I2C connectors and an included acrylic enclosure, it's ideal for IoT projects, automation, and intelligent control systems.
Description
CrowPanel 5.0" HMI is a high-performance capacitive touch display designed for advanced HMI, IoT, and automation applications. The module integrates a 5-inch TFT-LCD screen with 800x480 pixel resolution and a powerful ESP32-S3-WROOM-1-N4R8 module based on a dual-core Xtensa LX6 32-bit processor running at up to 240 MHz. The device offers built-in Wi-Fi and Bluetooth connectivity, enabling reliable wireless communication across a wide range of applications—from smart devices to industrial control panels. The screen supports capacitive touch technology, ensuring fast, accurate, and intuitive interaction with graphical interfaces. Thanks to compatibility with the LVGL library and support for Arduino IDE, Espressif IDF, PlatformIO, and MicroPython environments, creating modern user interfaces is fast and flexible. The device also supports openHASP—an open-source HMI platform for building graphical control panels with ease.
The CrowPanel 5.0" ESP32 module comes with a rich set of interfaces, including USB Type-C, TF (microSD) card slot, UART, I2C, GPIO, as well as battery and speaker connectors. This makes it an ideal choice for applications such as smart homes, industrial automation, medical devices, vehicle controllers, and consumer electronics. The device is delivered with a protective acrylic case, making it ready to use out of the box and easy to integrate into your projects.
Features
- Module: ESP32-S3-WROOM-1-N4R8 (Dual-Core Xtensa LX6, 240 MHz)
- Memory: 8 MB PSRAM, 4 MB Flash
- Display: 5.0" TFT-LCD (TN), resolution 800x480 px
- Display controllers: ILI6122 & ILI5960
- Touch type: capacitive, multi-touch
- Active area: 108 × 64.8 mm (W × H)
- Wireless communication: Wi-Fi 2.4 GHz, Bluetooth 5.0 / BLE
- Interfaces: 2× UART0, 2× GPIO, 2× I2C, 1× battery connector, USB Type-C port, TF card slot
- Buttons: Reset and Boot
- Power supply: 5V/2A (DC or USB)
- Battery voltage: 3.7 to 4.2 V
- Software compatibility: Arduino IDE, ESP-IDF, PlatformIO, MicroPython, LVGL, openHASP

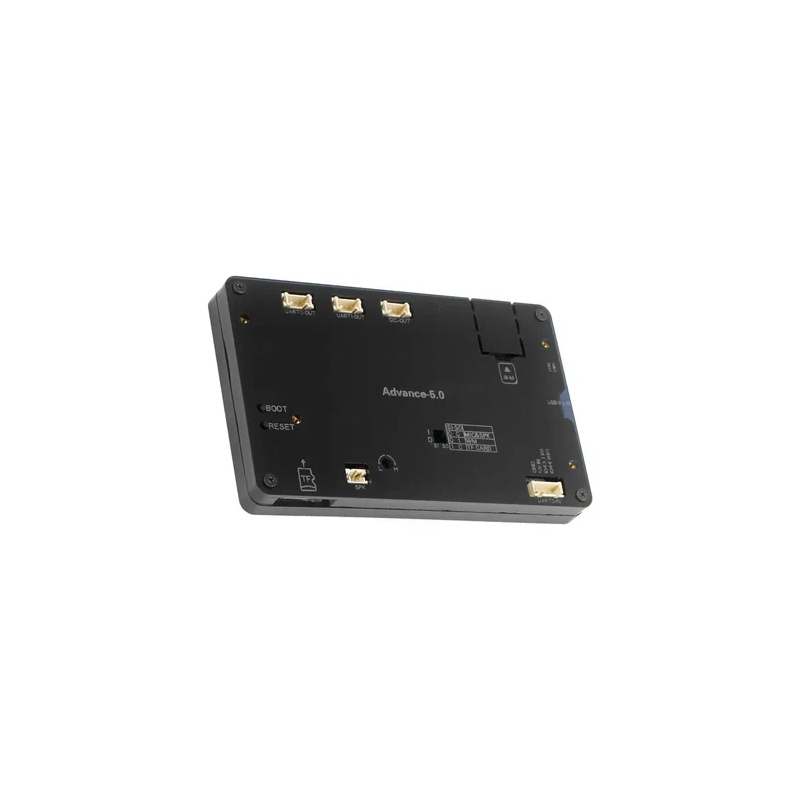

- Acrylic protective case
Kit contains
- CrowPanel ESP32 Display 5.0"
- Protective acrylic case
- USB-A to USB-C cable
- Crowtail/Grove to 4-pin DuPont cable
1201160
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
