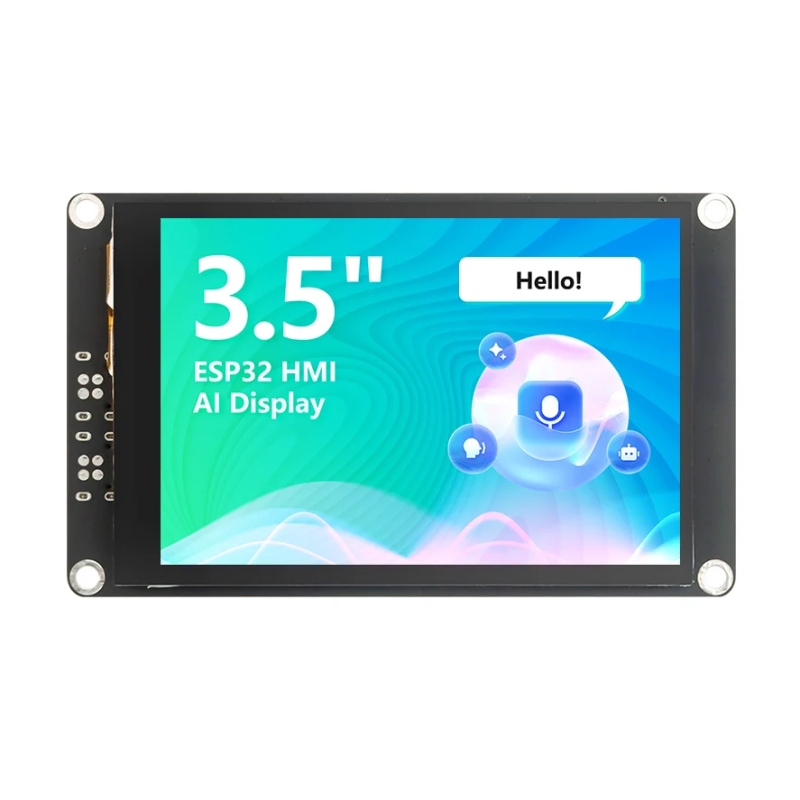

CrowPanel Advance 3.5“ - HMI display with ESP32-S3 module (without case)
ID: 1201725
zł165.42
Tax included
zł134.49 tax excl.
An ESP32-S3 HMI display with a dual-core 240 MHz Xtensa LX7 processor, offering fast performance and extensive wireless connectivity via Wi-Fi and Bluetooth 5.0. The 3.5-inch IPS screen with a resolution of 480x320 provides excellent image quality and precise capacitive touch. The device supports AI features such as speech recognition and synthesis, as well as RTC, battery charging, audio, and an SD card slot. Compatibility with the Arduino IDE, ESP-IDF, and LVGL enables the rapid development of modern IoT interfaces and applications. Elecrow CrowPanel Advance 3.5"
Description
CrowPanel Advance 3.5" is an advanced next-generation HMI (Human-Machine Interface) display, designed for intelligent control systems, automation, and IoT projects requiring high performance and flexibility. The device combines a powerful ESP32-S3 chip with a dual-core Xtensa LX7 processor running up to 240 MHz and a 3.5-inch IPS touch screen with a resolution of 480x320 pixels. Thanks to IPS technology, the image is clear and vivid with a wide 178° viewing angle. The screen uses capacitive touch technology, ensuring fast and precise touch response. Built-in Wi-Fi 2.4 GHz and Bluetooth 5.0 / BLE modules provide stable wireless communication. The board also allows the replacement of the radio module, enabling support for multiple communication protocols such as Zigbee, LoRa, Matter, Thread, Wi-Fi HaLow, and Wi-Fi 6.
One of the key advantages of the Advance model is its built-in AI functionality – the device is equipped with a microphone and a speaker connector, making it possible to use voice commands, speech recognition, and speech synthesis. This allows users to interact with intelligent assistants and create more advanced voice-controlled applications. The display also features a built-in real-time clock (RTC) that ensures accurate timekeeping even when the power is disconnected. With support for popular development environments such as Arduino IDE, Espressif IDF, PlatformIO, and full compatibility with the LVGL library, the device enables rapid development of modern and visually appealing user interfaces. Integrated functions such as battery charging management, audio amplifier, volume control, USB-UART port, SD card slot, and support for external peripherals make the CrowPanel Advance an extremely versatile solution.
Features
- Processor: Xtensa LX7 Dual-Core (ESP32-S3), 240 MHz
- Memory: 512 KB SRAM, 8 MB PSRAM, 16 MB Flash
- Display: 3.5" IPS, resolution 480x320 px
- Display controller: ILI9488
- Touch panel: capacitive, single touch
- Viewing angle: 178°
- Brightness: 400 cd/m² (typ.)
- Color depth: 16-bit
- Wireless communication: Wi-Fi 2.4GHz (802.11a/b/g/n), Bluetooth 5.0 / BLE
- Supported optional modules: Zigbee, LoRa, nRF2401, Matter, Thread, Wi-Fi HaLow, Wi-Fi 6

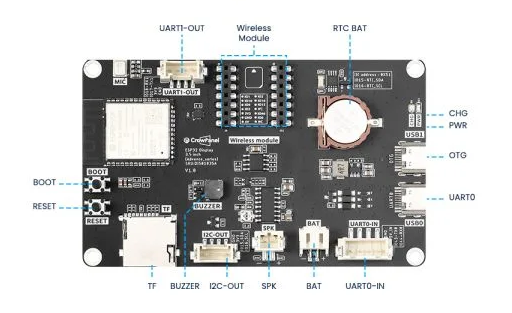

- Interfaces: USB, UART, I2C, SD card slot, battery connector, speaker port, microphone
- Additional functions: RTC, audio amplifier, volume control, battery charging, LED indicators
- Buttons: Reset, Boot
- LED indicators: PWR (power), CHG (charging status)
- Supported programming languages: C / C++
- Development environments: Arduino IDE, ESP-IDF, PlatformIO, LVGL
- Power supply voltage: 5V / 2A (USB or UART)
- Operating temperature: -20°C to 70°C
- Storage temperature: -30°C to 80°C
- Dimensions: 101.4 x 63.3 x 15.8 mm
Kit contains
- CrowPanel Advance ESP32 Display-3.5 inch
- USB Type-A to USB Type-C cable
- Grove/Crowtail 4-pin cable
1201725
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
