New products
zł1,283.74 tax excl.
A set with an adapter dedicated to the FLIR Lepton thermal imaging camera and the Lepton FS camera. It has been pre-configured to operate as a plug-and-play UVC 1.0 USB camera, it can also communicate via UART and I2C interface. SparkFun DEV-20813
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

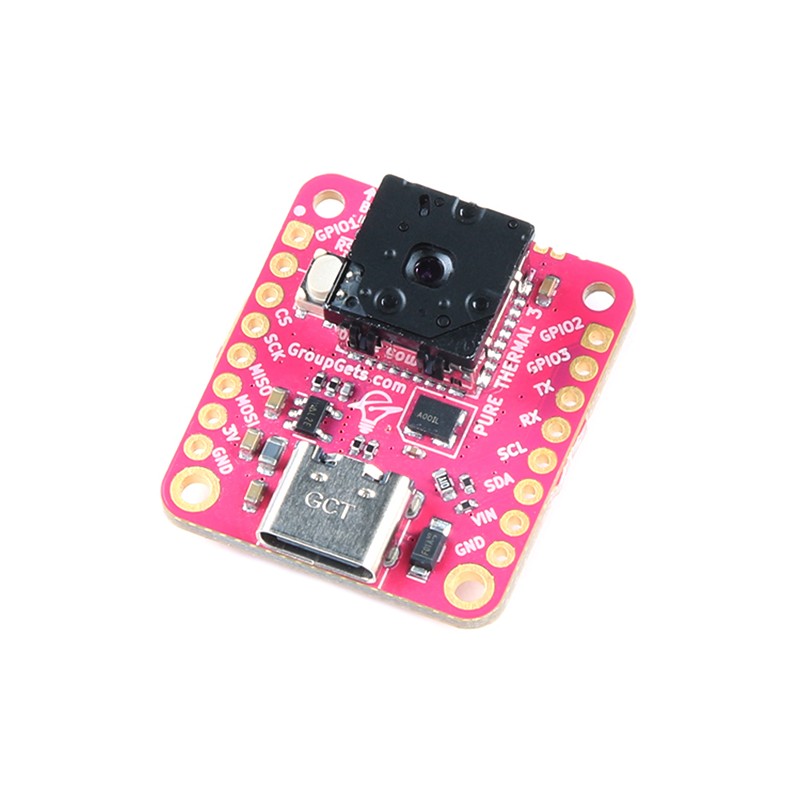

A set with an adapter dedicated to the FLIR Lepton thermal imaging camera and the FLIR Lepton FS camera. The adapter is pre-configured to function as a plug-and-play UVC 1.0 USB camera that will work with standard webcam drivers and video applications on all major platforms. PureThermal 3 is equipped with an STM32F412 microcontroller for image processing. The board also has pins with a raster of 2.54 mm, on which the UART and I2C interfaces were brought out.
The FLIR Lepton FS is a LWIR thermal imaging camera equipped with a matrix with a resolution of 160 x 120 pixels with progressive scan. It offers a viewing angle of 71° (diagonal) and 51° (horizontal) and can download data at a frequency of up to 8.7 Hz. It is calibrated and allows you to obtain accurate information about the temperature on the surface in a non-contact way. Thanks to its small size, the camera can be easily integrated with mobile devices as an infrared sensor. For communication, the module uses the SPI interface (image transfer) and I2C (configuration). The user has access to extensive support in the form of libraries and open-source GetThermal software.
Features
- Adapter compatible with all Lepton FLIR modules from the 2.x and 3.x series
- 9Hz color video over USB using UVC class USB
- STM32F412 ARM microcontroller
- Four mounting holes
- Compact housing ready to be built into production systems
- Firmware update (DFU) of STM32 ARM MCU via USB
- JTAG debugging via Tag-Connect EC10, ARM20-CTX, & ST-Link V/2
- UART and I2C interface
- Camera with a resolution of 160x120 pixels, FoV 71°/51° with a refresh rate of 8.7 Hz
- Power supply: VIN or USB type C
- Dimensions: 25.8 x 28.9mm
Kit contains
- PureThermal 3 Breakout Board
- FLiR Lepton FS Module
