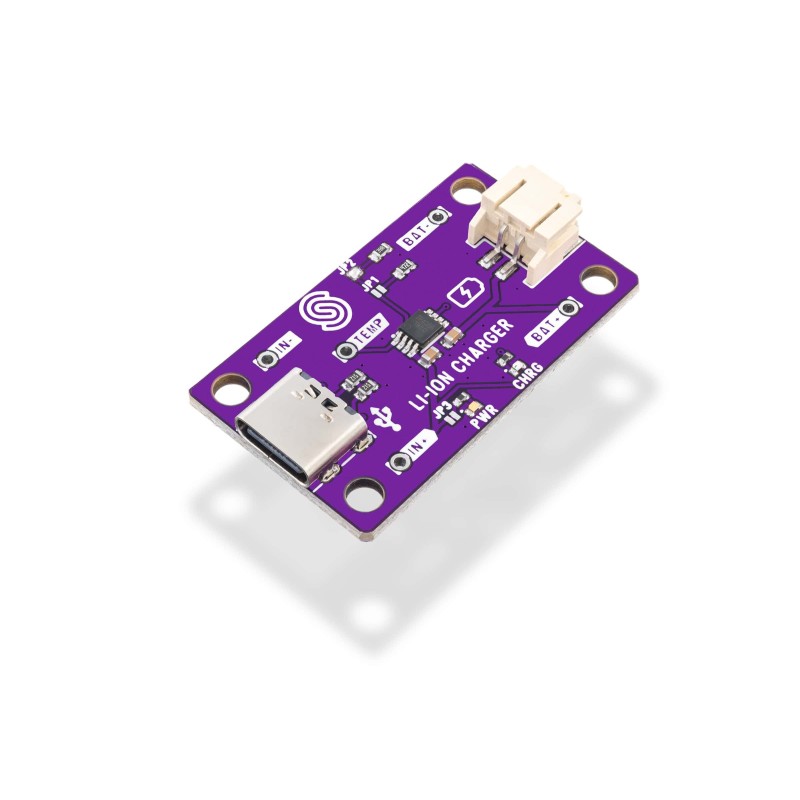

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Goldpin header
ID: 1208238
zł18.65
Tax included

zł15.16 tax excl.

Charger module designed for single-cell 3.7 V Li-Ion and Li-Po batteries, using the CC/CV charging method. It features a USB Type-C connector, a JST-PH 2 mm battery connector, and two LEDs indicating the charging status. Soldered 333013

Delivery date unknown
Out-of-Stock

Description

The module charges single-cell lithium batteries using the CC/CV method, controlling current and voltage during the charging process. The input voltage ranges from 4.5 V to 5.5 V, while the maximum output current according to the technical specifications is 500 mA. Power is supplied through a female USB Type-C connector, while the battery is connected via a JST-PH connector with a 2 mm pitch.

Two LEDs indicate the operating status - the red LED indicates charging, while the green LED indicates that the battery is fully charged. The module does not provide protection against reverse polarity, short circuits, overvoltage, or undervoltage, so correct battery connection is required. Four mounting holes facilitate installation in a device, while the board measures 38 x 22 mm.

Features

  • Application: charging single-cell 3.7 V Li-Ion and Li-Po batteries
  • Charging method: CC/CV
  • Maximum output current: 500 mA
  • Standby current consumption: 100 µA
  • Operating voltage: 4.5 V to 5.5 V
  • Logic voltage level: 5 V
  • Power connector: female USB Type-C
  • Battery connector: JST-PH 2 mm
  • Status indication: 2 LEDs
  • Red LED: charging
  • Green LED: battery fully charged
  • No reverse polarity protection
  • No short-circuit protection
  • No overvoltage protection
  • No undervoltage protection
  • Number of mounting holes: 4
  • LEGO-compatible mounting holes
  • Dimensions: 38 x 22 mm
  • Open-source design
  • Manufactured in Croatia, EU

Kit includes

  • Soldered Li-ion Charger - 1 pc.
  • Pin header - 1 pc.
