ID: 1205168
zł64.26
Tax included

zł52.24 tax excl.

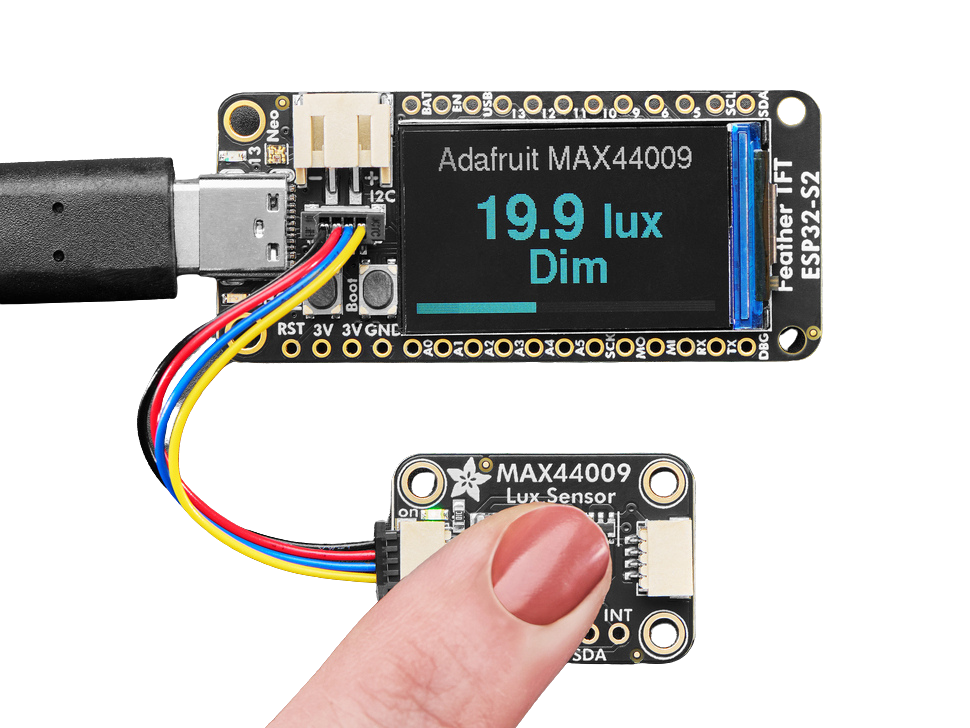

Ambient light sensor with a wide measurement range from 0.045 lx to 188,000 lx and a 22-bit dynamic range. It communicates via the I2C bus, supports automatic range adjustment and works with systems using 3.3 V and 5 V logic. STEMMA QT / Qwiic connectors simplify solderless integration. Adafruit 6498

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The MAX44009 ambient light sensor (Adafruit 6498) measures light intensity over a wide range from 0.045 lx to approximately 188,000 lx. The sensor provides a 22-bit dynamic range, resolution down to 0.045 lx/LSB and automatic range adjustment according to current lighting conditions. Software-adjustable integration time is also available. The sensor can be used in lighting automation, environmental monitoring systems, IoT devices and other projects requiring light intensity measurements in lux.


Communication is provided via the I2C bus, while the integrated 3.3 V regulator and logic level shifter enable operation with systems using 3.3 V or 5 V power and logic. STEMMA QT / Qwiic connectors allow the module to be connected without soldering using a compatible cable. Arduino and CircuitPython libraries simplify integration with microcontrollers and Raspberry Pi computers. STEMMA QT / Qwiic cable is not included.

Features

  • Manufacturer: Adafruit
  • Product code: 6498
  • IC: MAX44009
  • Type: digital ambient light sensor
  • Measurement range: 0.045 lx to approximately 188,000 lx
  • Dynamic range: 22 bits
  • Resolution: down to 0.045 lx/LSB
  • Automatic measurement range adjustment
  • Software-adjustable integration time
  • Communication interface: I2C
  • Logic compatibility: 3.3 V / 5 V
  • Integrated 3.3 V voltage regulator
  • Integrated logic level shifter
  • Connectors: STEMMA QT / Qwiic
  • Supported libraries: Arduino, CircuitPython
  • Raspberry Pi compatibility
  • STEMMA QT / Qwiic cable not included

Kit includes

  • Adafruit MAX44009 ambient light sensor module
  • Pin header
