New products
zł194.38 tax excl.

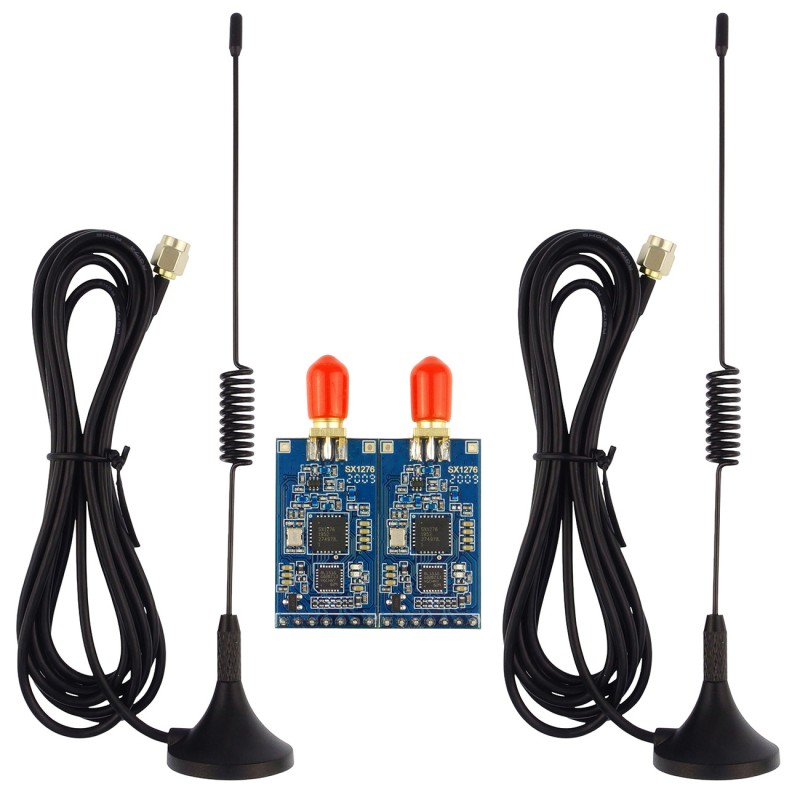

LoRa MESH Radio Module is a radio module with an operating frequency of 868MHz. Communication with the module takes place via the UART serial interface. It has a range up to 3km. It is supplied with voltage in the range of 3.3-5V. DFRobot TEL0117
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
LoRa MESH Radio Module is a radio module with 868 MHz operating frequency. It is supplied with voltage in the range of 3.3-5 V. Communication with the module takes place via the UART serial interface. The LoRa MESH module is a high-performance, energy-saving RF module with a long-range, using a distributed network communication mode. The module supports API mode, transparent mode and AT command mode - the user can configure the PC software or send AT commands by the microcontroller. The module has a range of up to 2-3 km in open space and power up to 100 mW. It also has built-in high-performance coding techniques with error correction and frequency hopping mechanism. The module will be used in projects requiring, for example, remote control of mobile robots.
properties
- Operating frequency range: 868 MHz
- Output power: ≤ 20 dBm
- Reception sensitivity: -148dBm
- Emission current: ≤100mA
- Standby current: ≤ 20mA
- Range: up to 3 km
- Communication interface: TTL serial communication
- Serial speed: 1200-115200, (9600bps by default)
- Working temperature: -40 ~ 85 ° C
- Power supply: 3.3-5 V
- Dimension: 34.2 x 18.4 mm
Included
- 2 x LoRa MESH Radio Module
- 2 x antenna (2m SMA-Male connector)
