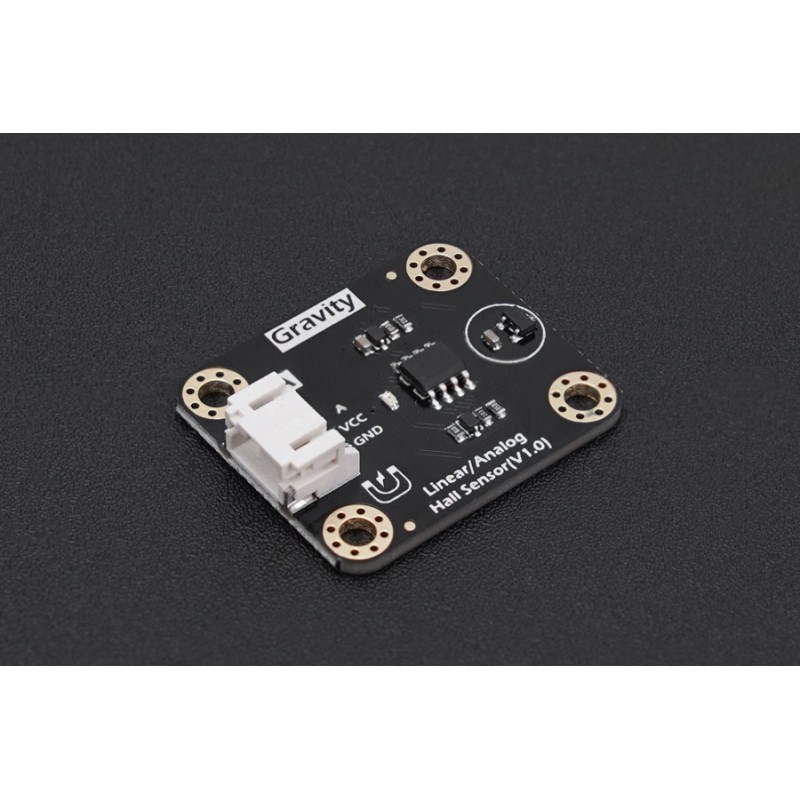

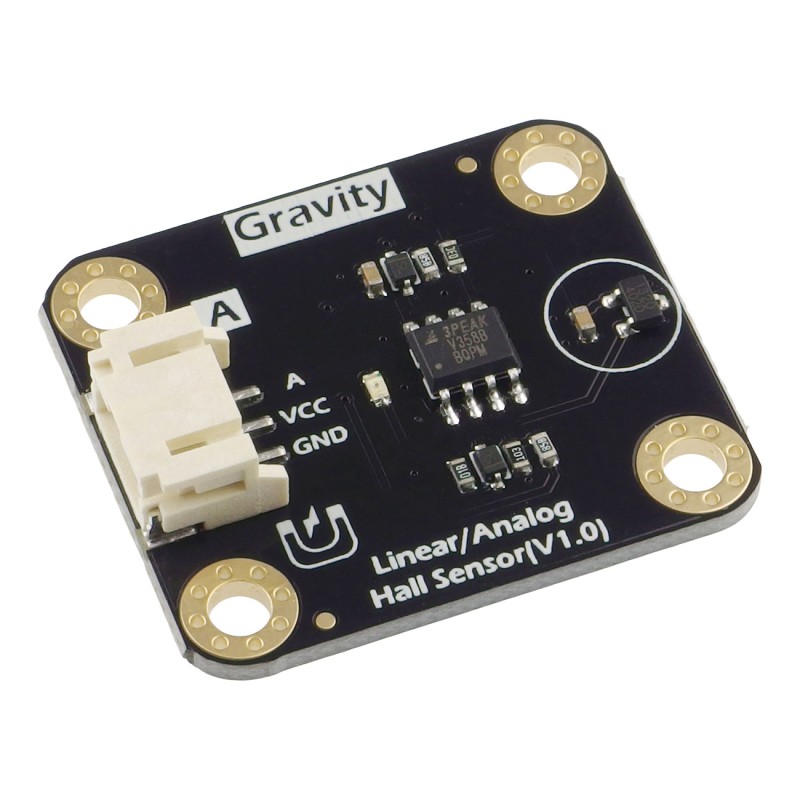

Gravity: Linear/Analog Hall Effect Sensor - module with a magnetic field sensor ±1200 GS
ID: 1196965
5902186302327
zł11.14
Tax included
zł9.06 tax excl.
Precise Hall effect sensor that converts magnetic field intensity into analog voltage. Differential response to magnetic poles (voltage increases when approaching S pole and decreases at N pole) enables precise analysis of field direction and strength. High sensitivity, low noise and compatibility with platforms such as Arduino and micro:bit make the sensor ideal for industrial, educational and hobby applications. DFRobot DFR1132
Description
The Gravity: Linear/Analog Hall Sensor is a high-precision sensor designed for measuring and monitoring magnetic field intensity. It uses an advanced Hall effect-based circuit that directly converts magnetic induction strength into an analog voltage signal. It uniquely responds to magnetic poles – when the south pole of a magnet approaches the sensor surface, the voltage rises above the midpoint, while the north pole causes the voltage to drop.
The sensor offers high sensitivity and low noise, making it ideal for applications requiring accurate magnetic field detection. It can be used in industrial automation, scientific research, security systems, as well as in educational and hobby projects. Additionally, it features a built-in LED that lights up when a magnetic field is detected, facilitating diagnostics and testing.
Thanks to its compatibility with popular platforms like Arduino, micro:bit, and UNIHIKER, the sensor can be easily integrated into various systems. Its stable output voltage and support for both N and S poles make it a reliable tool for all kinds of magnetic field detection tasks.
Features
- Detection of both N and S magnetic poles (bipolar sensor)
- Low-noise output with minimal measurement interference
- Stable output voltage regardless of power supply fluctuations
- Built-in LED indicator for magnetic field detection
- Compatible with Arduino, micro:bit, UNIHIKER
- Operating voltage: 3.3 to 5V
- Current consumption: 4.2 to 8 mA
- Magnetic field range: ±1200 Gauss
- Data type: Analog
- Detection range: <1 cm (depending on magnetic field strength and direction)
- Interface type: PH2.0-3P
- Dimensions: 27 × 32 mm
- Weight: 3.5 g
Kit contains
- Gravity: Linear/Analog Hall Sensor
- Gravity Analog Cable 30cm
1196965
Data sheet
- Interface
- Sygnał analogowy
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
