modHMC5883L_02
ID: 198264
5906623475957
zł12.14
Tax included
zł9.87 tax excl.

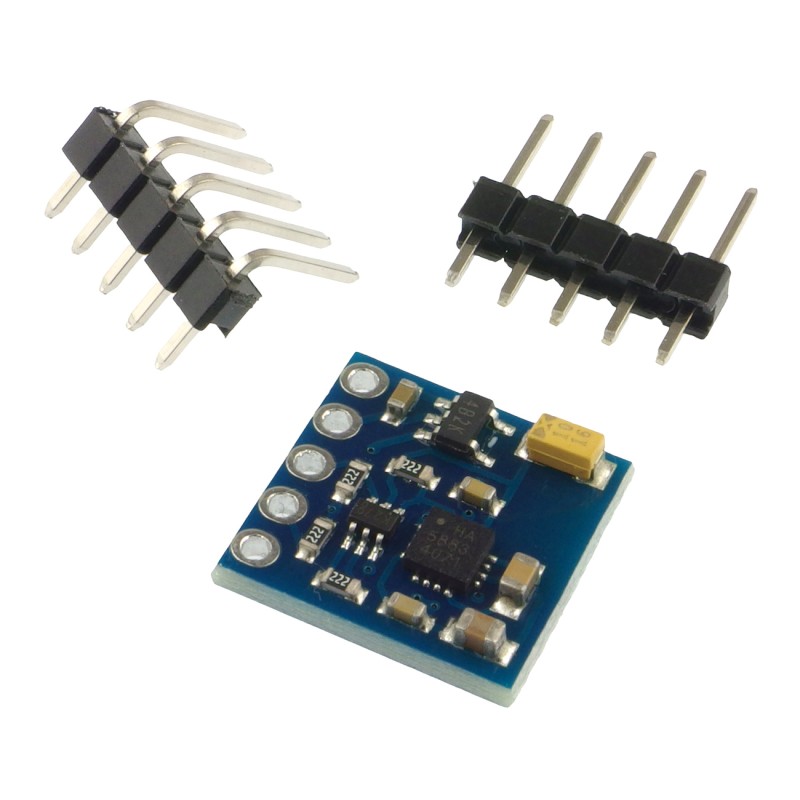

HMC5883L digital electronic compass 3-axis magnetoresistive sensor module with level converter, RoHS
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
modHMC5883L_02
HMC5883L digital electronic compass 3-axis magnetoresistive sensor module with level converter, RoHS
Features:
- on-board digital three-axis electronic compass HMC5883L chip, built-in AD converter, supports I2C communications protocol
- support 5V/3.3V voltage input
- the module can be used in low cost areas of the compass and the magnetic field detection
- the pin has been used to bring out the standard 2.54mm pin
- on-board TTL level converter
- PCB size: 14.4 (mm) x13.2 (mm)
Contents:
- modHMC5883L_02 Module
Download:
198264
Data sheet
- Interface
- I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
