DP1500 - 100MHz high voltage differential probe
ID: 1188721
5906623400041
zł1,151.14
Tax included
zł935.89 tax excl.

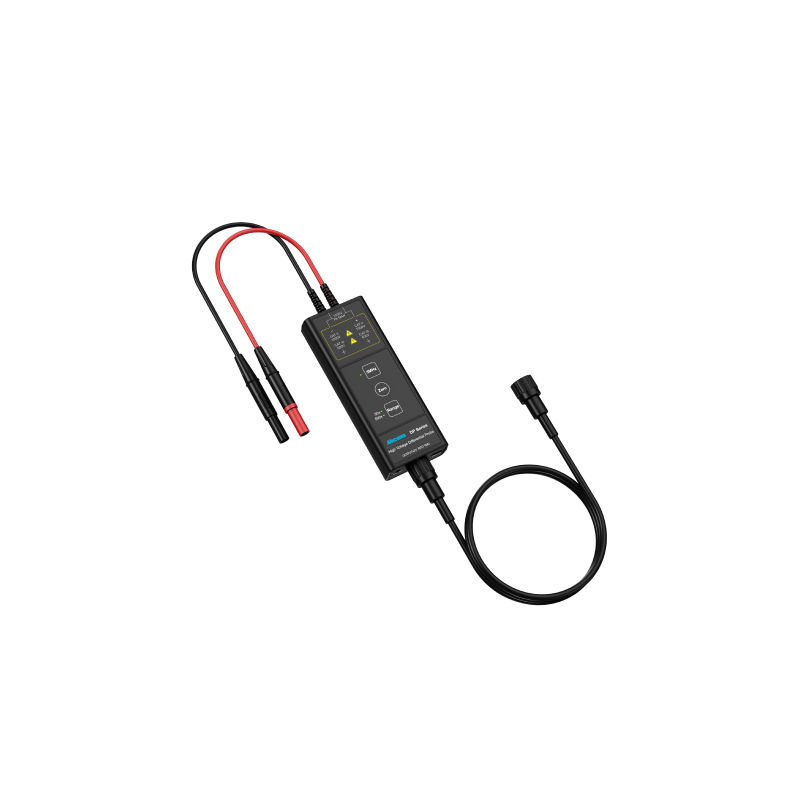

Micsig DP series differential probe based on advanced SigOFIT technology. It offers a frequency band of 100 MHz and the ability to measure voltage up to 1500 V. It uses the popular BNC connector and is powered by a USB Type-C connector. Micsig DP1500
Description
The differential probe based on Micsig's advanced SigOFIT technology is a modern tool that is characterized by a very low noise level, excellent amplitude and frequency characteristics at high voltage and an advanced ability to reject common-mode signals. Thanks to these features, users can easily test high-frequency and voltage signals. The probe has a bandwidth limit of 5 MHz, which effectively eliminates high-frequency noise when measuring transistor switching frequencies in most switching power supplies. Additionally, the zero point calibration function allows you to zero the probe instantly. The probe also offers dual-range capability, improving signal-to-noise ratio and adapting to a variety of test requirements. The standard BNC connector allows operation with any oscilloscope, and the power supply from the USB port eliminates the need for additional power sources.
Additional features, such as an overvoltage alarm with a flashing LED and an out-of-range alarm, allow the user to quickly respond to possible problems. The DP probe also stands out for its compact and aesthetic design, much smaller than traditional differential probes. Moreover, it is characterized by excellent bandwidth uniformity, with amplitude fluctuations below 0.5 dB in the half-band range, even in the case of high frequencies, which guarantees high measurement precision. High input impedance and low capacitance minimize the loading effect, which greatly improves the accuracy of differential signal measurement.
The probe can be widely used for AC voltage measurements, high voltage insulation measurements, and the design of switching power supplies and power converters. It is a versatile and flexible tool useful both in an electronics workshop and in an industrial environment.
Features
- Frequency band: 100MHz
- Rise time: ≤ 3.5 ns
- Attenuation Ratio: 50X, 500X
- Accuracy: ±2%
- Max. differential voltage (DC+AC PK):
- 50X: 150V
- 500X: 1500V
- Max. common mode voltage: CAT II 1000V, CAT III 600V
- Noise:
- Full Bandwidth:
- 50X: ≤ 45mVrms
- 500X: ≤ 200mVrms
- 5MHz Bandwidth Limit:
- 50X: ≤ 20mVrms
- 500X: ≤ 175mVrms
- Full Bandwidth:
- CMRR:
- DC: > -80dB
- 100 kHz: > -60dB
- 10 MHz: > -30dB
- 100 MHz: > -26dB
- Input impedance:
- Differential mode: 16 MΩ, 1.5 pF
- Common mode: 8 MΩ, 3 pF
- Delay:
- 50X: 11.99 ns
- 500X: 12.27 ns
- Output voltage: ≤3V
- Bandwidth limit: 5MHz
- Quick zero point calibration function
- Two working ranges
- Signaling of exceeding the permissible voltage: LED and buzzer
- BNC connector
- Power supply: USB Type-C
- Operating temperature range: 0℃ to 40℃
- Cable length: 8 cm (input), 120 cm (output)
- Control module dimensions: 91 x 33 x 15 mm
- Signal module dimensions: 100 x 36 x 20 mm
Kit contains
- Differential probe
- USB cable
- 2 x alligator clips
- 2 x measuring tip
1188721
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
