microSD Card Reader up to 32GB SPI 3.3V/5V - Soldered
ID: 1208261
zł18.65
Tax included
zł15.16 tax excl.
microSD card reader module supporting cards with capacities up to 32GB for reading and writing data via SPI. An onboard 3.3V regulator and TXB0104 logic level translator provide compatibility with 3.3V and 5V logic systems. The module can be used for data logging, configuration storage, and file handling in microcontroller-based projects. Soldered 333050
Description

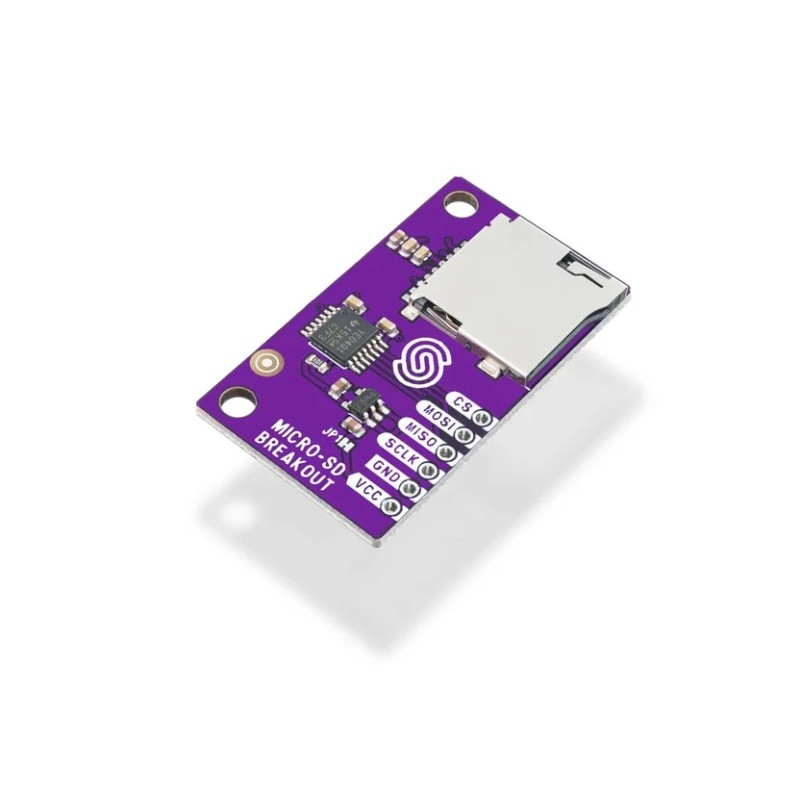

The device microSD Card Reader Breakout by Soldered provides read and write access to microSD cards through the SPI interface. It supports cards with capacities up to 32GB, providing removable storage for microcontroller-based systems. The board can be used in data loggers, measurement recording devices, configuration storage systems, and projects requiring removable file storage.
Communication with a microcontroller uses the CS, MOSI, MISO, and SCK SPI signals. The onboard TXB0104 IC provides logic level translation, allowing the board to interface with systems using 3.3V and 5V logic. A 2.54mm pin pitch also makes the board suitable for use with standard breadboards.
The module is powered from 5V, while an onboard regulator provides the 3.3V supply required by the microSD card. JP1 and JP2 allow the voltage regulator configuration to be modified: JP1 connects the 3.3V regulator by default, while JP2 can be used to bypass it after the appropriate hardware configuration change.
Board dimensions are 38 × 22mm. Header pin holes have a diameter of 1.5mm, while the 3.2mm mounting holes are designed for M3 screws.
Features
- Memory card
- Supported card type: microSD
- Maximum card capacity: 32GB
- Data read and write support
- Communication
- Interface: SPI
- Communication signals: CS, MOSI, MISO, SCK
- Logic level translator: TXB0104
- 3.3V and 5V logic compatibility
- Power supply
- Supply voltage: 5V
- Onboard 3.3V regulator
- JP1: disconnects the 3.3V regulator
- JP2: bypasses the 3.3V regulator
- Mechanical parameters
- Board dimensions: 38 × 22mm
- Pin pitch: 2.54mm
- Header pin hole diameter: 1.5mm
- Mounting hole diameter: 3.2mm
- Mounting holes designed for M3 screws
