Gravity: I2C EEPROM Data Storage Module - module with 32kB EEPROM memory
ID: 581641
zł31.39
Tax included
zł25.52 tax excl.

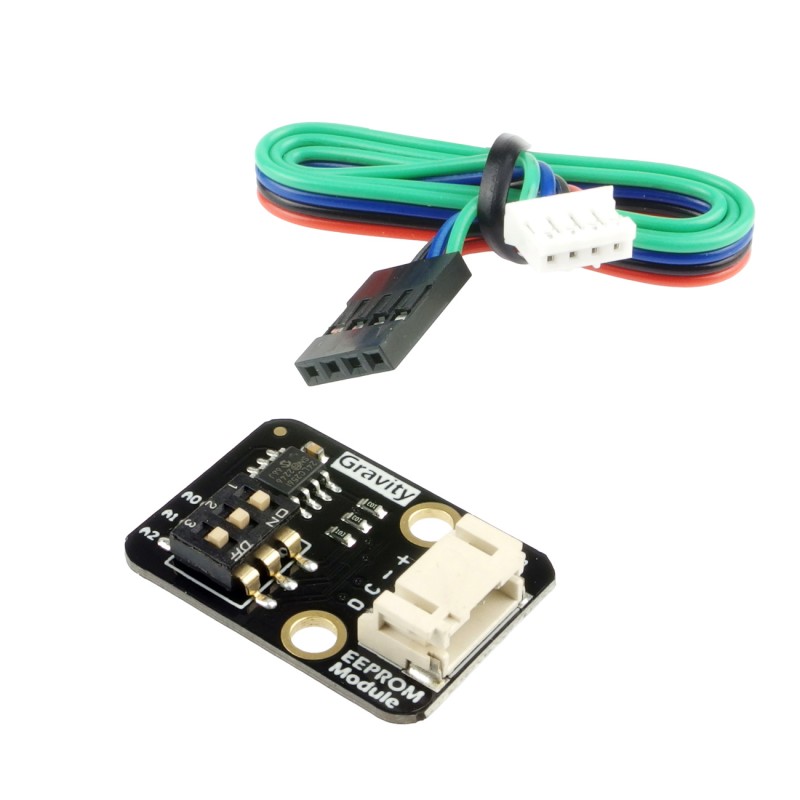

The module with the EEPROM 24LC256 memory chip with a capacity of 32 kB. It is supplied with the voltage ranging from 2.5 V to 5.5 V and communicates via the I2C interface (Gravity connector). DFRobot DFR0117
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The module with the EEPROM 24LC256 memory chip with a capacity of 32 kB. It is supplied with the voltage ranging from 2.5 V to 5.5 V and communicates via the I2C interface (Gravity connector). There is a switch on the board which enables easy configuration of the I2C address. The module can be used, for example, as additional space for data storage in case when the microcontroller has too little memory. The Wiki page contains the manual and sample programs.
Features
- EEPROM: 32 kB (256 kb)
- CMOS technology
- Interface: I2C
- Configurable I2C address
- Gravity connector
- Power supply: 2.5 V to 5.5 V
- Current consumption during reading: 400 uA at 5.5 V, 400 kHz
- Standby current: 1 uA max. at 3.6V
- Ambient temperature: -40 ℃ to 125 ℃
- Dimensions: 30.00 x 21.05 mm
- Mounting hole diameter: 3.5 mm
- Weight: 10g
Kit contains
- Module with EEPROM memory
- 4-pin Gravity cable
