- New

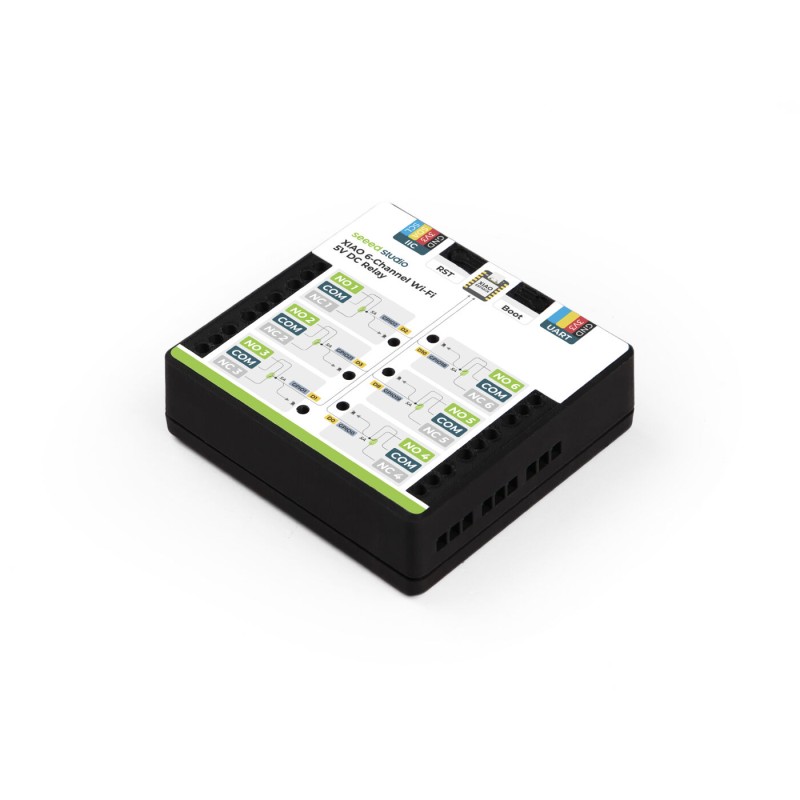

XIAO 6-Channel Wi-Fi 5V DC Relay - module with 6 5VDC relays and WiFi
ID: 1201751
zł93.69
Tax included
zł76.17 tax excl.
This XIAO ESP32-C6-based relay module is designed for intelligent automation. It allows independent control of six channels via Wi-Fi, Zigbee, Thread, or BLE, and thanks to the built-in ESPHome, it easily integrates with Home Assistant. It supports DC devices up to 30V, features two Grove ports for expansion, and comes in an aesthetically pleasing PLA enclosure. Ideal for IoT systems, home automation, lighting, and motor control. Seeed Studio 114993588
Description
XIAO 6-Channel Wi-Fi 5V DC Relay is a powerful and compact relay module designed to bring your home into the era of smart automation. Built around the XIAO ESP32-C6, it enables seamless integration with Home Assistant, giving you full control over up to six DC-powered devices simultaneously. With ESPHome firmware preinstalled, setup is quick and requires no advanced technical skills. The device allows for remote Wi-Fi control, making it an excellent choice for automating lighting, motors, irrigation systems, or energy management.
Each of the six relays operates independently, providing complete flexibility for customized automation. The XIAO ESP32-C6 ensures stable connectivity through Wi-Fi 6 and supports BLE 5.0, Zigbee, and Thread, greatly expanding interoperability with other IoT devices. Additionally, two Grove ports enable easy connection of sensors and actuators, allowing system expansion without complex wiring.
The enclosure, made from durable black PLA, not only protects the electronics but also provides a clean, professional look. The module is fully compatible with Arduino IDE, making it ideal for both beginners and experienced automation developers. Its compact, reliable design makes it suitable for home, industrial, and IoT applications. The XIAO 6-Channel Wi-Fi Relay is a must-have solution for anyone looking to easily expand their smart ecosystem with real-time control and monitoring capabilities.
Features
- Module: XIAO ESP32-C6
- Integration with Home Assistant (ESPHome pre-installed)

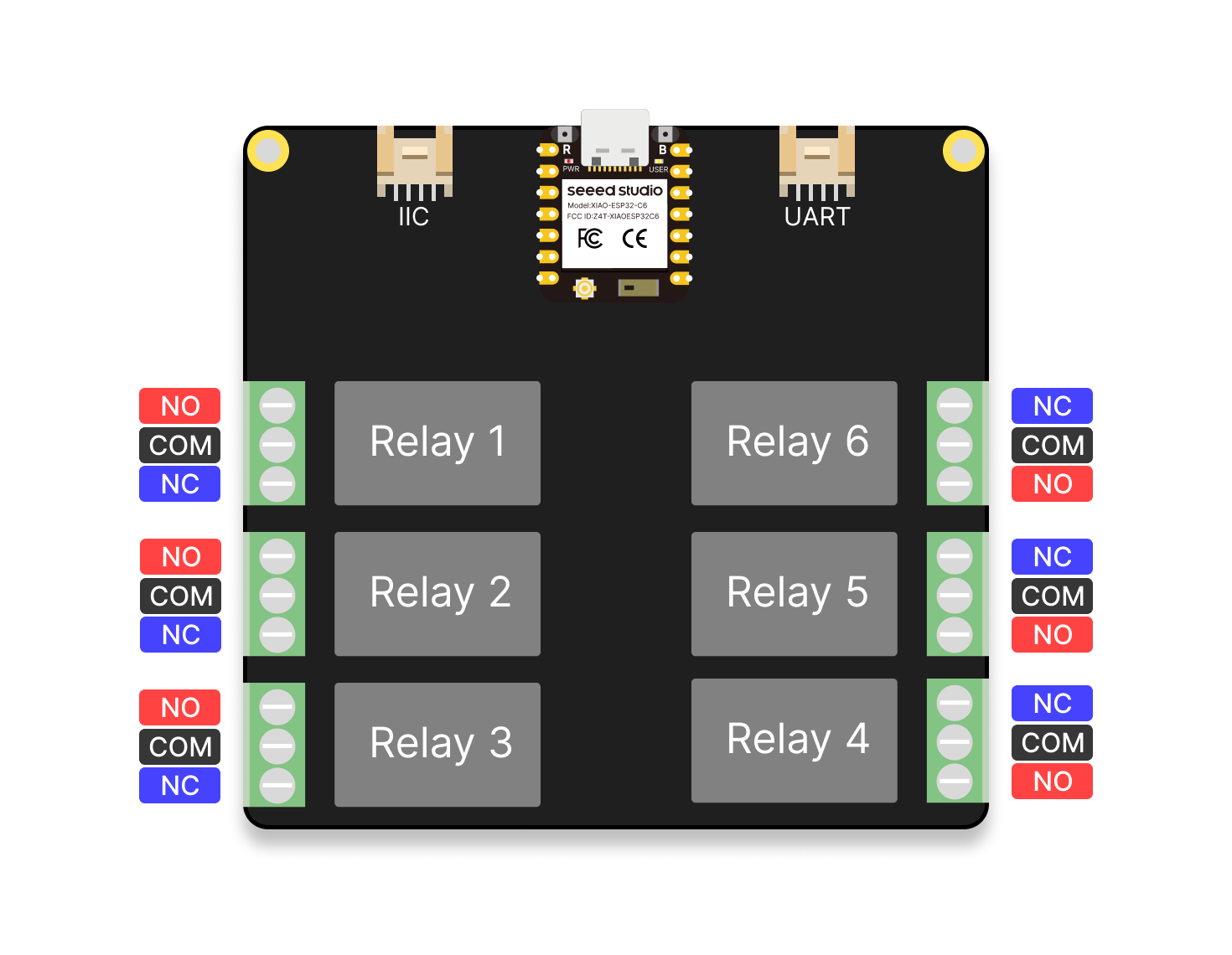

- 6 independent relay channels (COM, NC, NO)
- Voltage support: 10A 30V DC (recommended) / 10A 250V AC
- Power supply: DC 5V (Type-C, for XIAO module)
- Connectivity: Wi-Fi 6 (2.4GHz), BLE 5.0, Zigbee, Thread
- Interfaces:
- 1× IIC (Grove)
- 1× UART (Grove)
- USB Type-C
- Two Grove expansion ports
- Enclosure: 3D-printed PLA, black color
- Dimensions: 97 × 92 × 31 mm
1201751
Data sheet
- Output current
- 10A
- Number of channels
- 6
- Executive element
- Przekaźnik
- Coil voltage
- 30 VDC / 250 VAC
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
