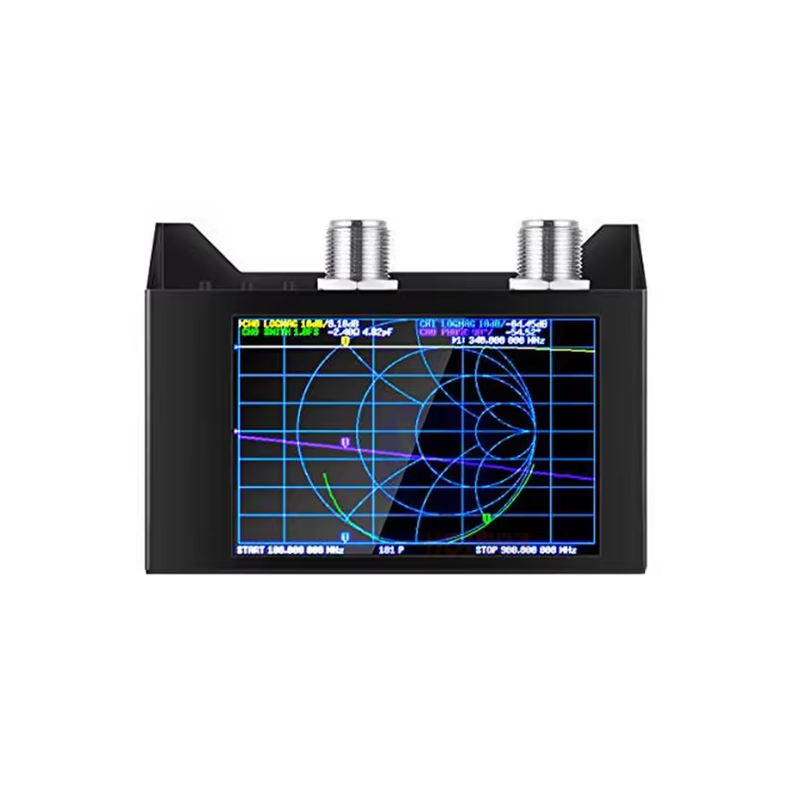

Portable antenna analyzer with a working range from 50 kHz to 3 GHz, ideal for testing 50 Ohm installations and analyzing filters and S-parameters. Equipped with a 4-inch touchscreen, 3000 mAh battery and support for Windows, Linux and macOS, it offers high precision and portability for hobbyists and professionals. NanoVNA SAA2N

6 weeks
Awaiting delivery

Description

The SAA2 NanoVNA is a portable antenna analyzer designed for testing, tuning, and diagnosing 50 Ohm antenna installations in the 50 kHz to 3 GHz frequency range. The device offers high measurement precision and a range of advanced features, such as the Smith chart, filter characteristic measurements, and S-parameter analysis. With its intuitive interface and 4" touchscreen display (320x480 resolution), the analyzer is extremely easy to use—even for beginners. The SAA2 model is equipped with a 3000mAh battery for extended field operation and a micro USB port for power and communication with a computer. It supports software applications for Windows, Linux, and macOS, and enables data transfer and storage on a computer or smartphone. Thanks to its high measurement dynamic range (up to 70dB) and accurate calibration, the SAA2 is an ideal tool for both hobbyists and professionals.

Features

  • Frequency range: 50 kHz to 3 GHz
  • Dynamic range (calibrated): 70 dB (up to 1.5 GHz), 60 dB (up to 3 GHz)
  • S11 noise floor (calibrated): -50 dB (up to 1.5 GHz), -40 dB (up to 3 GHz)
  • Scan speed: 100 points/s
  • Display: 4" TFT touchscreen, 320x480 pixels
  • USB interface: micro USB
  • Power supply: USB 5V, max charging current 1A
  • Battery: 3000mAh lithium-ion (built-in)
  • Battery connector: JST-XH 2.54mm
  • Maximum number of points (on device): 201
  • Maximum number of points (via USB): 1024
  • Platform support: Windows 7+, Linux
  • Real-time measurement support
  • Functions: S11/S21 analysis, Smith chart, SWR, phase, delay, capacitance and inductance measurement
  • Dimensions: 97 x 66 x 25 mm

Kit contains

  • SAA-2N analyzer with built-in 3000mAh battery
  • Micro USB cable
  • 2 x RF cable N-M/N-M RG142-PUR 50 cm
  • Calibration kit N-M – OPEN
  • Calibration kit N-M – SHORT
  • 1 x Calibration kit N-M – LOAD
  • N-F/N-F adapter
  • EVA carrying case
