nanoVNA-H4 - 10kHz-1.5GHz vector network analyzer
ID: 1197028
5902186301962
zł369.00
Tax included
zł300.00 tax excl.
Portable VNA with 4-inch touchscreen, enabling precise measurements in the range from 10 kHz to 1.5 GHz. With good dynamics, metal housing and support for S11 and S21 measurements, it is a versatile tool for analyzing antennas and RF paths both in the field and in the laboratory. nanoVNA-H4
Description
NanoVNA-H4 is a compact, portable vector network analyzer with a 4-inch color LCD touchscreen, capable of measuring a wide frequency range from 10 kHz to 1.5 GHz. Utilizing an enhanced sensitivity algorithm and the Si5351 chip, the device offers excellent dynamic range across various frequency bands – up to 70 dB in the 50 kHz to 300 MHz range. The built-in 1950 mAh battery enables extended field operation without charging, and USB-C power input adds further flexibility.
The device is ideal for antenna parameter analysis and S11 and S21 measurements using the TX/RX method (manual port switching required). With the NanoVNA-Saver software, it can connect to a computer, export data in Touchstone format, and perform advanced RF simulations. The shielded metal enclosure reduces external interference, improving measurement accuracy. It is a practical tool for both hobbyists and professionals in need of a mobile antenna analyzer.
Features
- Measurement frequency range: 10 kHz to 1.5 GHz
- Dynamic range: 70 dB (50 kHz – 300 MHz), 60 dB (300 MHz – 900 MHz), 40 dB (900 MHz – 1.5 GHz)
- RF output: 0 dBm (±2 dBm)
- SWR port: < 1.1
- Display: 3.9” TFT (320 x 480)
- Communication interface: USB Type-C (CDC serial mode)
- Compatible with NanoVNA-Saver (PC)
- Power supply: USB 5V / 200 mA or built-in 1950 mAh Li-Ion battery
- Maximum charging current: 1 A
- Enclosure: ABS
- Dimensions: 75 x 133 x 18 mm
Kit contains
- NanoVNA-H4 (with 1950 mAh battery)
- USB Type-C cable
- 2 x RF cables RG316 SMA male–male, 15 cm
- SMA male calibration set – OPEN
- SMA male calibration set – SHORT
- SMA male calibration set – LOAD
1197028
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Vector network analyzer with two ports. It can perform measurements at frequencies from 500 kHz to 4 GHz. Connected to a computer via USB. Pocket VNA
Delivery date unknown
No product available!
Vector network analyzer with two ports. It can perform measurements for frequencies from 50 kHz to 3 GHz. Equipped with an LCD display, it can be connected to a computer via USB. Nano V2 2.8"
zł411.18
24h
Available quantity: 4
Available
Vector network analyzer with two ports. It can perform measurements for frequencies from 50 kHz to 900 MHz. Equipped with an LCD display, it can be connected to a computer via USB. Nano VNA
zł319.78
Delivery date unknown
No product available!

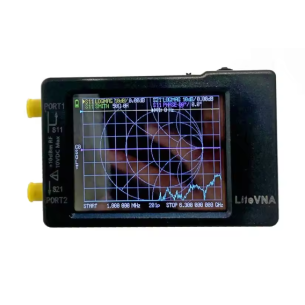

Compact vector analyzer, enabling measurements in a wide frequency range from 50 kHz to 6.3 GHz, ideal for analyzing antennas and RF systems in the HF, VHF, UHF and WiFi bands. With a 2.8" touch screen, USB-C interface and support for VNA-QT software, it offers convenient operation and professional analysis of results both in the field and in the laboratory. liteVNA 62
