ID: 1210002
zł33.76
Tax included

zł27.45 tax excl.

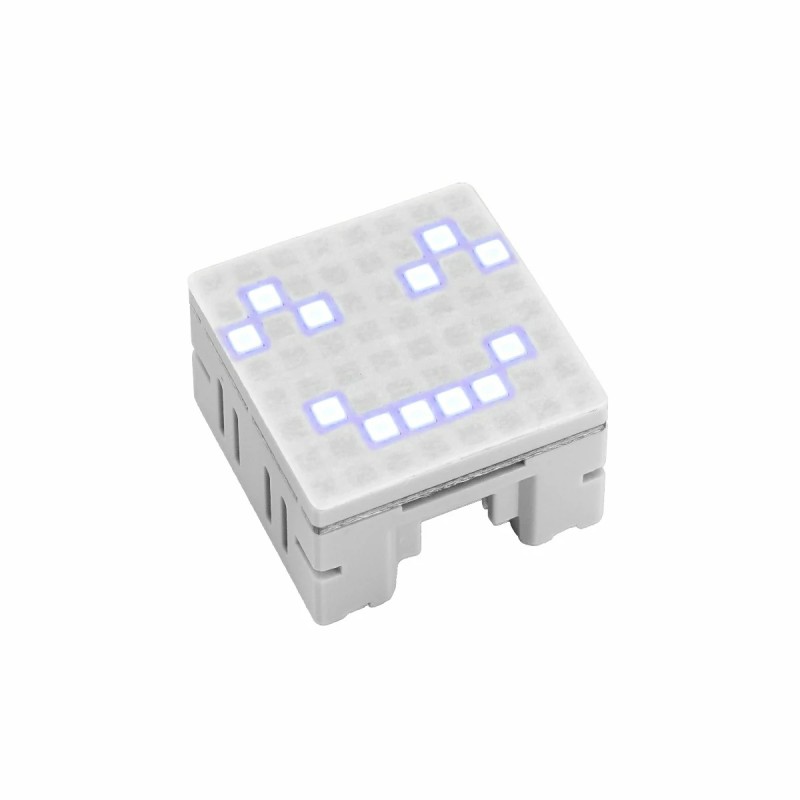

8 x 8 monochrome LED matrix module with 64 white LEDs; STM32G031G8U6 microcontroller; individual pixel control, ASCII character display, text scrolling and brightness adjustment; screen rotation by 0°, 90°, 180° and 270°; UART communication at 115200 bps; two HY2.0-4P connectors for connecting Chain series modules; 5 V DC power supply; dimensions of 24 x 24 x 16 mm. M5Stack U217

24h
Available
Available quantity: 2

Description

8 x 8 LED matrix module from the M5Stack Chain series, featuring 64 individually controllable white LEDs. The M5Stack Chain Mono (U217) uses an STM32G031G8U6 microcontroller and supports individual pixel control, batch pixel writing and full-screen refresh using an 8-byte frame buffer. Built-in functions include ASCII character generation, text scrolling for strings of up to 256 characters per module, brightness adjustment and screen rotation by 0°, 90°, 180° and 270°.


Displaying messages and symbols - enables the presentation of characters, simple icons and device status information.

Creating pixel animations - allows moving patterns and lighting effects to be designed using independent LED control.

Device status indication - enables alarms, activity and operating states to be displayed through illuminated pixel patterns.

Decorative lighting installations - allow the matrix to be used for desktop ambient lighting, compact information signs and interactive projects.

Communication with the module is handled through a UART interface operating at 115200 bps, using a serial protocol that supports daisy-chaining multiple devices.

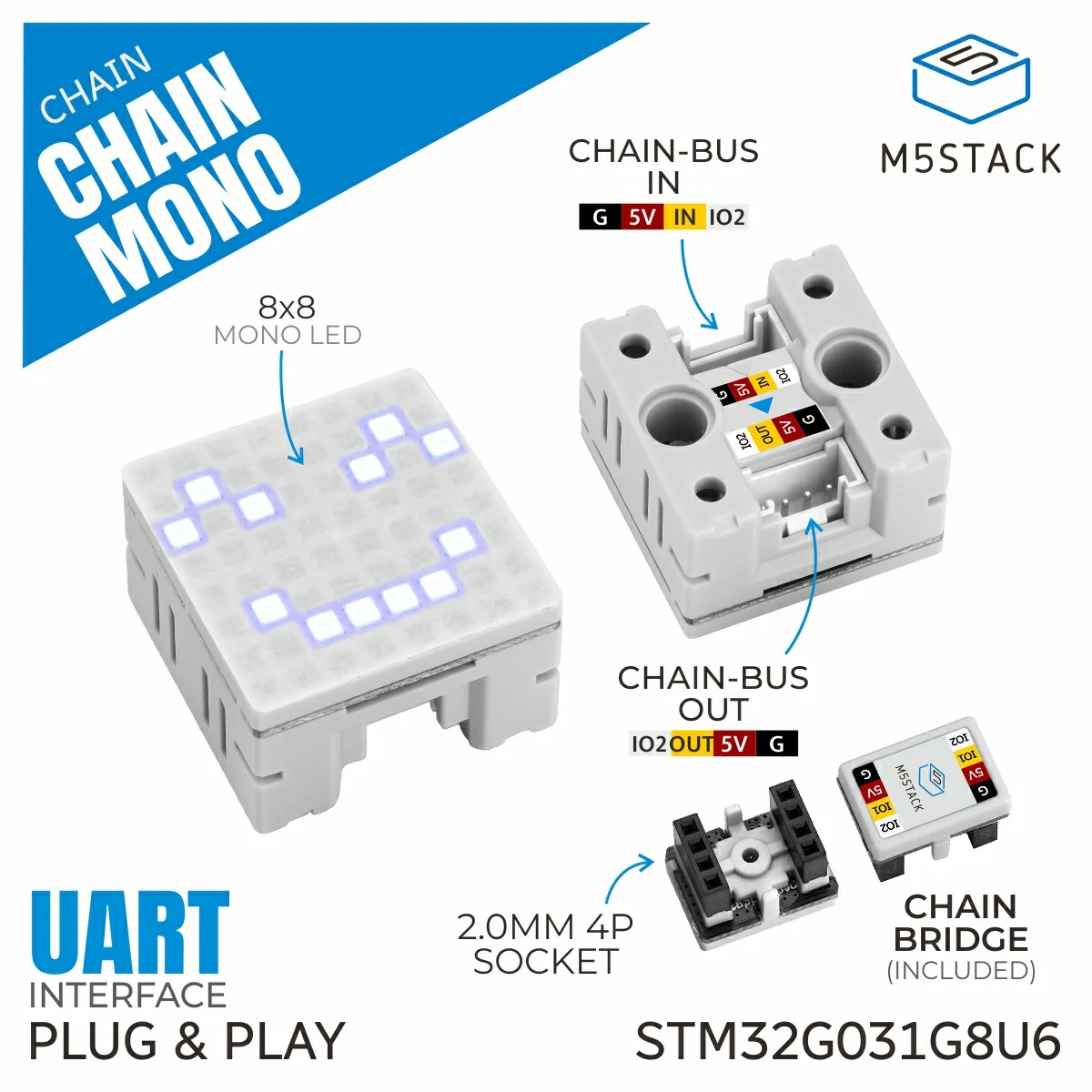

Two HY2.0-4P connectors serve as the Chain-Bus input and output, allowing additional Chain series modules to be connected.

The module requires a 5 V DC power supply. Standby current consumption is 8.13 mA, increasing to 22.29 mA when all LEDs are illuminated at maximum brightness. The operating temperature range is 0°C to 40°C. The compact enclosure, measuring 24 x 24 x 16 mm, allows installation in small electronic projects. A Chain Bridge is also included.

Właściwości

  • LED matrix and display functions
    • Display type: monochrome LED matrix
    • LED arrangement: 8 x 8
    • Number of LEDs: 64
    • LED color: white
    • Individual pixel control
    • Batch pixel writing
    • Frame buffer: 8 bytes
    • Full-screen refresh
    • Built-in ASCII character support
    • Text scrolling: up to 256 characters per module
    • Brightness adjustment
    • Supported screen rotations: 0°, 90°, 180°, 270°
  • Microcontroller and communication
    • Microcontroller: STM32G031G8U6
    • Communication interface: UART
    • Baud rate: 115200 bps
    • Transmission format: 8N1
    • Communication protocol: Chain-Bus, serial daisy-chain
    • Connectors: 2 x HY2.0-4P
    • Supports daisy-chaining M5Stack Chain series modules
  • Power supply and operating conditions
    • Supply voltage: 5 V DC
    • Standby current consumption: 8.13 mA
    • Current consumption with all LEDs at maximum brightness: 22.29 mA
    • Operating temperature: 0°C to 40°C
  • Mechanical specifications
    • Dimensions: 24 x 24 x 16 mm
    • Weight: 6.2 g
    • Package dimensions: 138 x 93 x 11 mm
    • Gross weight: 13.2 g

Kit includes

  • M5Stack Chain Mono U217 module
  • Chain Bridge
1210002
