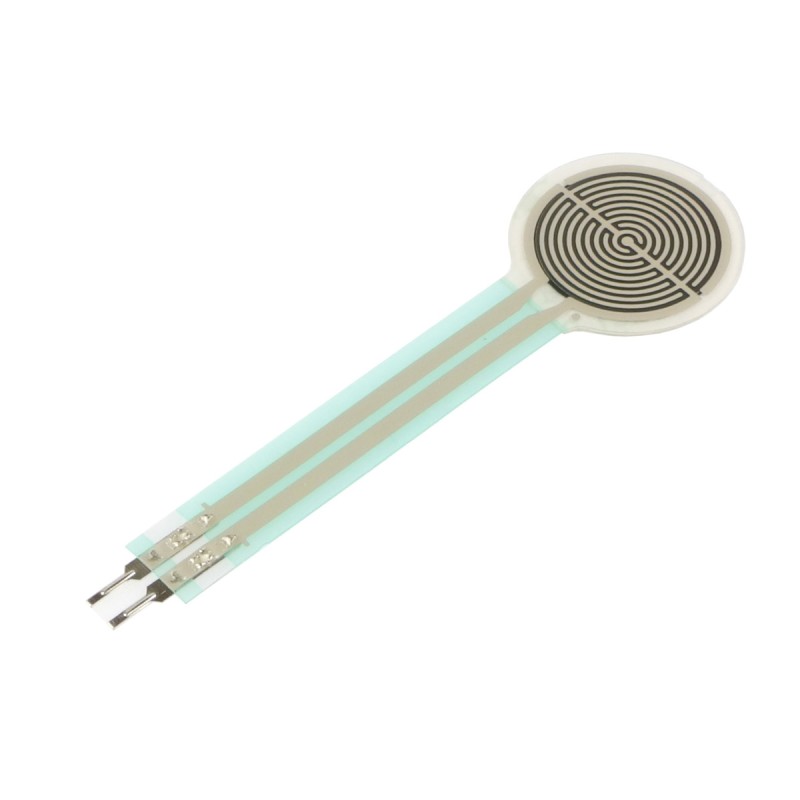

DFRobot RP-C18.3-LT Thin Film Pressure Sensor
ID: 574764
zł35.40
Tax included
zł28.78 tax excl.
Round, flexible, pressure sensor that can be used to implement very sensitive force detection. The sensor is durable and designed to detect static and dynamic pressure at high response speeds. DFRobot SEN0295
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Dscription
RP-C18.3-LT Thin Film Pressure Sensor is a round, flexible, pressure sensor that can be used to implement very sensitive force detection. The sensor is durable and designed to detect static and dynamic pressure at high response speeds. It was made of thin foil (0.4 mm) with excellent mechanical properties, excellent conductive materials and layers sensitive to nanometric pressure. The upper layer of the sensor has a thin layer and pressure-sensitive layer, and the lower layer has a thin layer and conductive circuit. These two layers are glued with double-sided tape.
The sensor's operation is based on recording the intensity and frequency of the force. As a result, it is widely used in all types of applications, such as pressure switches, monitoring systems and medical devices.
Features
- Thickness: 0.4mm
- Trigger Force: 20g, triggered (default resistance<200kΩ)
- Pressure Measuring Range: 20g~6kg
- Static Pressure & Dynamic Pressure Measurement (within the frequency of 10Hz)
- Initial Resistance: >10MΩ
- Activation Time: <0.01S
- Operating Temperature: -40℃~+85℃
- Lifespan: >1million times
- Hysteresis: +10%，(RF+ -RF-)/FR+，1000g Force
- Response Time: <10ms
- Drift: <5%, 2.5Kg Force, Static load 24H
Sensor characteristic
