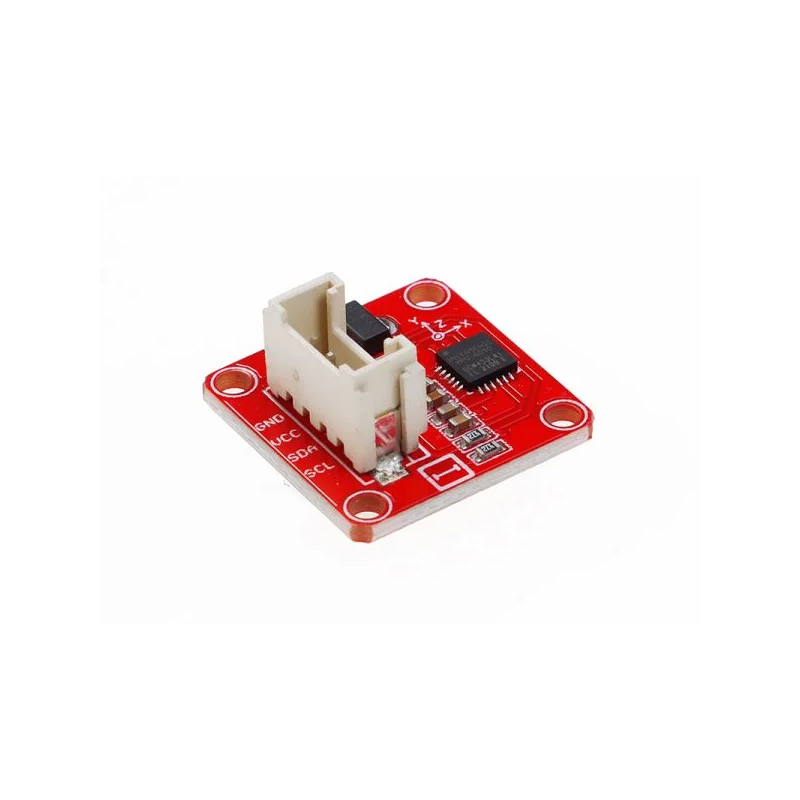

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Set view
ID: 1206349
zł32.90
Tax included

zł26.75 tax excl.

This module is equipped with a 3-axis accelerometer and a 3-axis gyroscope, enabling precise measurement of motion and orientation. The MPU6050 chip with a built-in DMP engine allows for accurate monitoring of acceleration up to ±16 g and angular velocity up to ±2000°/s. The module communicates via UART or I2C and can interface with additional sensors, facilitating integration with robotic projects, drones, and motion control systems. Elecrow CRT02122G

4 weeks
Awaiting delivery

Description

Crowtail-MPU6050 Accelerometer & Gyro 2.0 is a compact module equipped with a 3-axis accelerometer and a 3-axis gyroscope, designed for measuring motion, acceleration, and spatial orientation. The module is based on the popular MPU6050 motion processor, which integrates a digital accelerometer, gyroscope, and a built-in DMP (Digital Motion Processor) hardware engine. This enables precise real-time monitoring of device movement and position changes. The module was designed for projects related to robotics, automation, and consumer electronics. It is ideal for applications such as game controllers, motion control systems, drones, quadcopters, and smart mobile devices. The module also provides an additional I2C interface for connecting external sensors such as magnetometers.

Thanks to its high measurement sensitivity, the module enables accurate readings of linear acceleration and angular velocity. The accelerometer measurement range reaches up to ±16 g, while the gyroscope supports measurements up to ±2000°/s. Low power consumption below 10 mA makes the module suitable for battery-powered devices as well. Communication is performed via the UART or I2C interface, ensuring easy integration with popular development platforms and microcontrollers. The module uses a Crowtail-compatible connector, allowing quick connection without soldering. The high data transmission rate enables smooth motion parameter monitoring in real-time applications.

Features

  • Chipset: MPU6050
  • Sensor type: 3-axis accelerometer and 3-axis gyroscope
  • Built-in DMP (Digital Motion Processor)
  • Additional I2C interface for external sensors
  • Accelerometer measurement range: ±16 g
  • Gyroscope measurement range: ±2000°/s
  • Accelerometer measurement error: ±6.1e-5 g
  • Gyroscope measurement error: ±7.6e-3°/s
  • Accelerometer stability: 0.001 g
  • Gyroscope stability: 0.02°/s
  • Data transmission frequency: 100 Hz (115200 bps) / 20 Hz (9600 bps)
  • Communication interface: UART or I2C
  • Crowtail-compatible interface
  • Operating voltage: 5.0 V to 6.0 V
  • Current consumption: maximum 10 mA
  • Dimensions: 20.0 x 20.0 x 9.8 mm

Kit contains

  • Crowtail-MPU6050 Accelerometer & Gyro 2.0 module
  • Crowtail cable
1206349

Data sheet

Interface
I2C/UART
Type of sensor
MPU6050
Module type
6DoF
Power supply voltage
5 V
Sensor type
Akcelerometr i żyroskop
