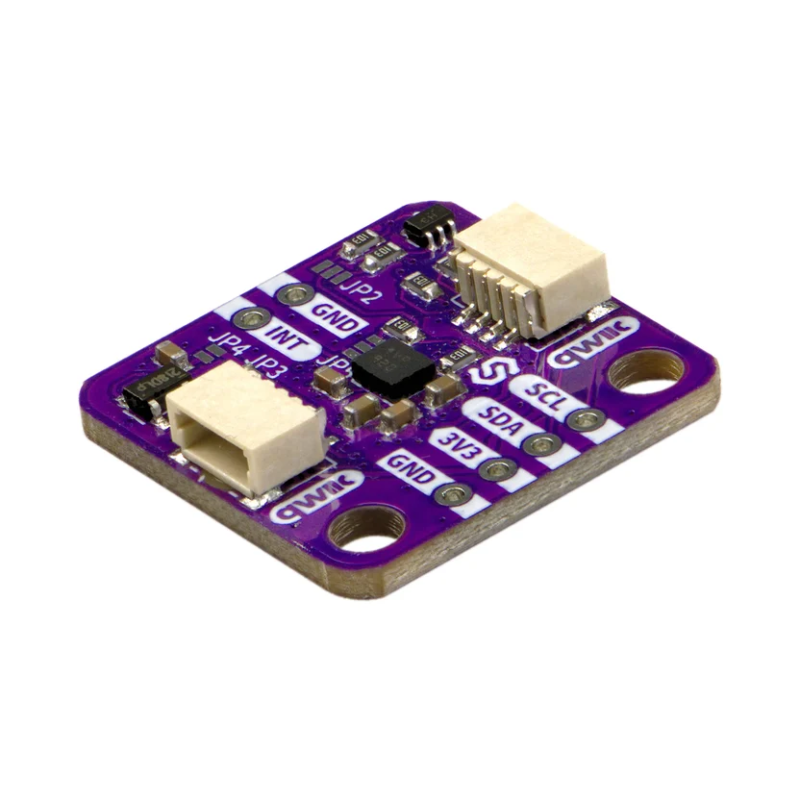

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1208379
zł57.55
Tax included

zł46.79 tax excl.

IMU module based on the Bosch BHI385, integrating a 3-axis accelerometer, 3-axis gyroscope and a 32-bit ARC EM4 processor for sensor data processing. Bosch BSX sensor fusion provides outputs including 3D orientation, step counting, tap detection and wrist gesture recognition without requiring these calculations to be performed by the host microcontroller. Soldered 333375

24h
Available
Available quantity: 4

Description

The module uses the Bosch BHI385 with a 3-axis accelerometer and 3-axis gyroscope, complemented by a 32-bit ARC EM4 (Fuser2) processor running Bosch BSX sensor fusion firmware. The IC can directly provide virtual sensor data, including 3D orientation, step counting, tap detection and wrist gesture recognition. The accelerometer measurement range can be configured in software to ±4 g, ±8 g, ±16 g or ±32 g, while the gyroscope supports ranges from ±125 dps to ±2000 dps. The module is suitable for wearable devices, motion recognition systems, gesture controllers and projects requiring orientation tracking.

Communication with the microcontroller is handled via I2C at up to 400 kHz, with the default 0x29 address configurable to 0x28 using the JP5 solder jumper. The board operates from a 3.3 V supply and includes an LDO regulator that provides the 1.8 V required by the BHI385, as well as an I2C logic-level converter between the 3.3 V and 1.8 V domains. Two Qwiic connectors allow solderless connection, while the manufacturer provides an Arduino library for accessing data generated by the sensor.

Features

  • Bosch BHI385 IC
  • 3-axis accelerometer
  • 3-axis gyroscope
  • 32-bit ARC EM4 (Fuser2) processor
  • Bosch BSX sensor fusion
  • Virtual sensor support
  • 3D orientation tracking
  • Step counting
  • Tap detection
  • Wrist gesture recognition
  • Accelerometer range: ±4 g, ±8 g, ±16 g or ±32 g
  • Gyroscope range: ±125 dps, ±250 dps, ±500 dps, ±1000 dps or ±2000 dps
  • I2C communication
  • Maximum I2C frequency: 400 kHz
  • Default I2C address: 0x29
  • I2C address configurable to 0x28 via JP5 jumper
  • Supply voltage: 3.3 V
  • Integrated 3.3 V / 1.8 V LDO regulator
  • Integrated I2C logic-level converter
  • Sleep mode current consumption: approximately 5 µA
  • Current consumption with accelerometer active: approximately 200 µA
  • Current consumption with accelerometer and gyroscope active: approximately 1.4 mA
  • 2 x Qwiic connector
  • Arduino library
  • 2 x M3 mounting hole
  • Dimensions: 22 x 22 mm
1208379

Data sheet

Interface
I2C
Type of sensor
BHI385
Module type
6DoF
Power supply voltage
3,3 V
Sensor type
Akcelerometr i żyroskop
