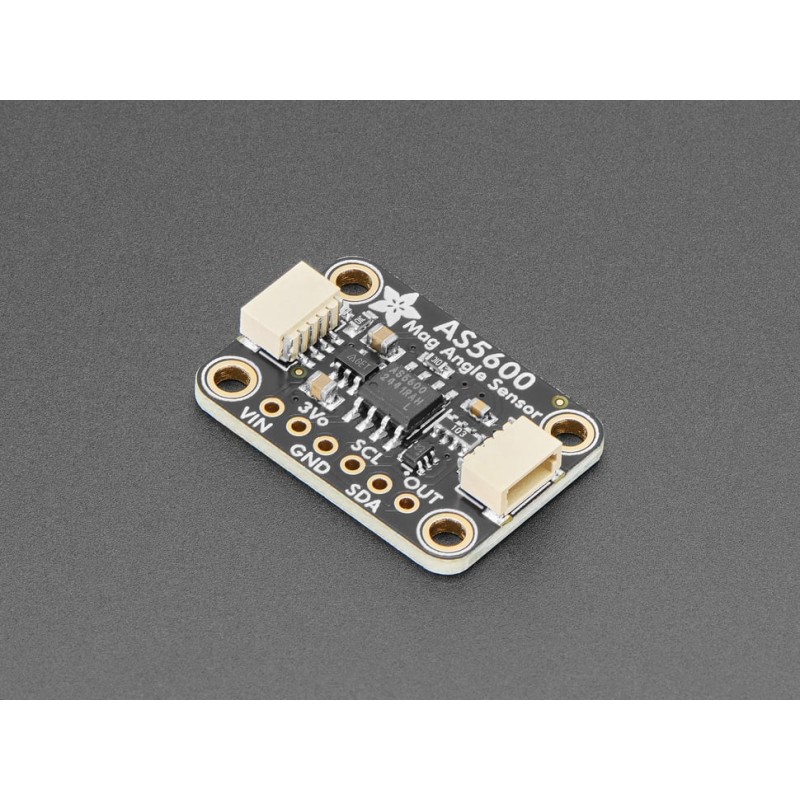

Main view
search
  • Main view
  • Top view
  • JST SH connector view
  • Top view with pin headers
  • Size comparison
ID: 1199911
zł30.31
Tax included

zł24.64 tax excl.

Rotary angle sensor module based on the AS5600, enabling contactless magnetic position measurement over a 0–360° range, featuring an I2C interface and STEMMA QT / Qwiic connectors for solderless connection. Adafruit 6357

4 weeks
Awaiting delivery
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The Adafruit 6357 AS5600 is designed for contactless measurement of rotational angle based on a magnetic field generated by an external magnet. The module detects angular position without a mechanical connection to a shaft, eliminating wear, friction and electrical noise typical of classic potentiometers and mechanical encoders. This solution is suitable for rotary encoders, control knobs, joysticks and positioning systems.


The sensor communicates via the I2C bus and works with microcontrollers and single-board computers that support this interface. The AS5600 provides full 360° angle measurement with a resolution of 0.1° and an accuracy of approximately 0.4°. Optimal operation is achieved with a neodymium magnet placed coaxially above the sensor at a short distance.

STEMMA QT connectors, compatible with the Qwiic system, allow quick, solderless connection and easy daisy-chaining with other I2C modules. The board is supplied fully assembled and includes a pin header for optional soldering and breadboard use.

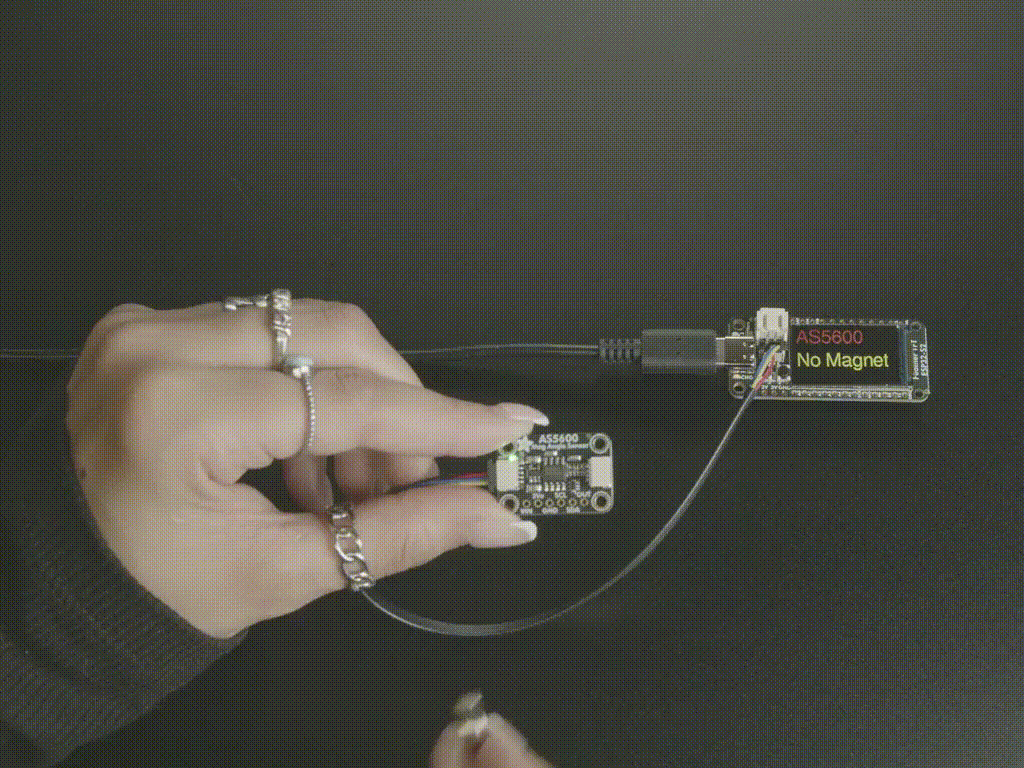

Product demonstration video.

Features

  • Sensor type: magnetic rotary angle sensor
  • Sensor chip: AS5600
  • Angle measurement range: 0–360°
  • Measurement resolution: 0.1°
  • Measurement accuracy: approximately 0.4°
  • Communication interface: I2C
  • Connectors: STEMMA QT / Qwiic (JST SH 4-pin, 1 mm, I2C)
  • Contactless measurement: no mechanical connection
  • Required external component: permanent magnet
  • Compatibility: microcontrollers and SBCs with I2C
  • Assembly state: fully assembled module
  • Additional connectors: pin headers for soldering

Kit includes

  • AS5600 magnetic angle sensor module
  • Pin header for soldering
