Miniature DC BUCK step-down converter 7.2 V (9-36 V input) for serial bus servos - Waveshare 27380
ID: 1196623
5902186303904
zł16.33
Tax included
zł13.28 tax excl.

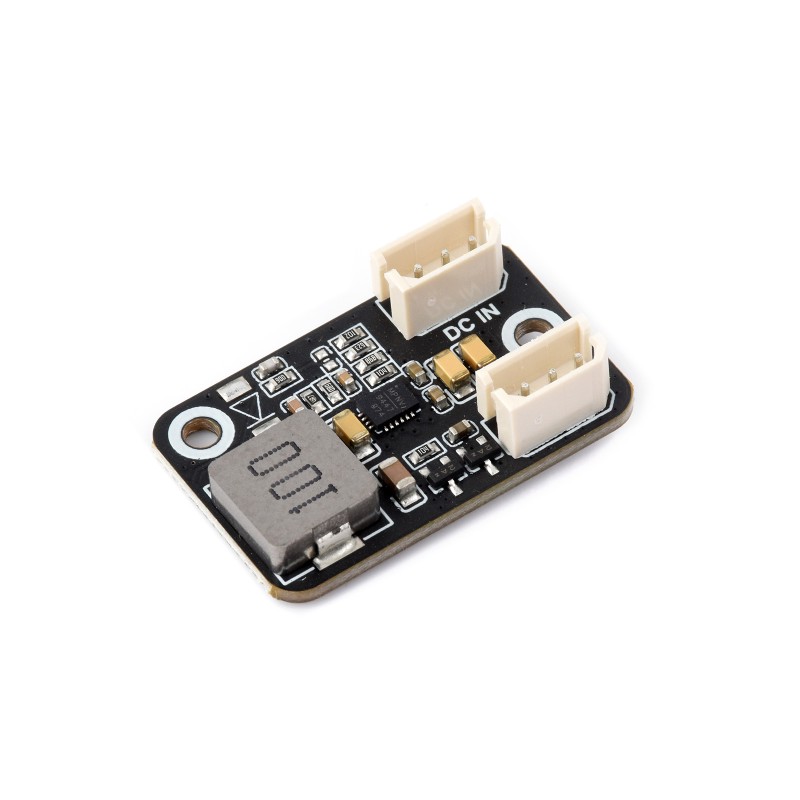

The DC BUCK Adapter (7.2V) is a compact switching regulator designed to power servos that communicate via serial bus. With a wide input voltage range and easy installation, the module is ideal for robotic systems and applications requiring stable 7.2 V power from various energy sources.
Description
The DC BUCK Adapter (7.2V) is a miniature switching regulator designed to power serial bus servos such as the SC15 or SC09. It converts input voltages ranging from 9–36 V to a stable 7.2 V output, ensuring reliable power delivery in systems supplied from various energy sources.
Its compact form factor allows for easy integration in space-constrained environments, while the standard 5264-3P connector enables straightforward connection to control circuits. The module can be inserted directly in series with the servo power supply circuit—no additional configuration required.
Features
- Buck converter with 7.2 V DC output voltage
- Input voltage: 9–36 V DC
- Maximum peak current: 3 A
- Compatible with SC/ST serial bus servos (e.g., SC15, SC09)
- Connector: 5264-3P (standard for SC/ST bus)
- Dimensions: 21.5 × 34.0 mm
- Mounting holes: 2.7 mm diameter
- Easy integration – direct inline connection in the power supply circuit
Included
- DC BUCK Adapter (7.2V) x1
- 30 cm servo cable x1
1196623
Data sheet
- Output voltage
- 7.2V
- Output current
- 3A
- Converter type
- Step-down
- Supply voltage min
- 9 V
- Supply voltages max
- 36 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
