ST-LINK/V2
ID: 184250
5906623490301
zł113.38
zł104.89
Save zł8.49
Tax included
zł85.28 tax excl.
Lowest price 30 days:
zł113.38

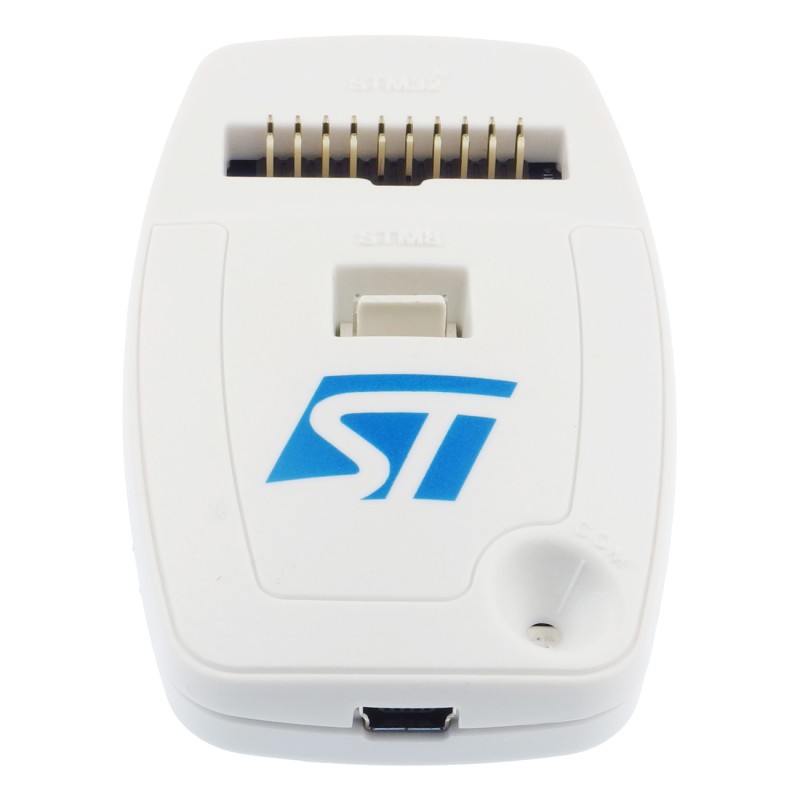

ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32 microcontrollers
ST-LINK/V2 in-circuit debugger/programmer for STM8 and STM32 microcontrollers
The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
STM8 applications use the USB full speed interface to communicate with STMicroelectronic’s ST Visual Develop (STVD) or ST Visual Program (STVP) software.
STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Features
- 5 V power supplied by a USB connector
- USB 2.0 full speed compatible interface
- USB standard A to mini B cable
- SWIM specific features
- 1.65 V to 5.5 V application voltage supported on SWIM interface
- SWIM low-speed and high-speed modes supported
- SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
- SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
- SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
- STM32 JTAG specific features
- 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
- JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
- Direct firmware update feature supported (DFU)
- Status LED which blinks during communication with the PC
- Operating temperature 0 to 50C
Contents
- ST-LINK/V2 debugger/programmer
- USB type A to Mini-B cable
- SWIM flat ribbon ended with a 4-pin, 2.54 mm, low-cost connector on two sides
- SWIM flat ribbon with a standard ERNI connector at one end and 4-pin connector at the other end
- JTAG or SWD and SWV flat ribbon with a 20-pin connectors
Download:
- Data Brief
- User manual
- Updating firmware to version V2J14S3
- STM32 ST-Link Utility v.2.1
- STM32 ST-Link Utility - user manual
