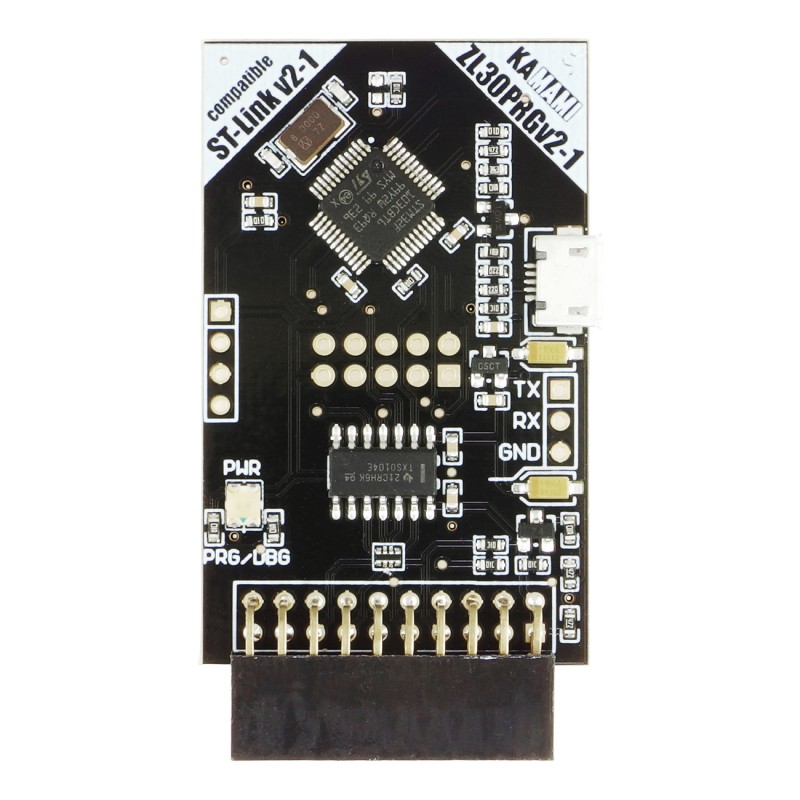

ZL30PRGv2-1 - SWD programmer-debugger for STM32 microcontrollers
ID: 559992
5906623433254
€19.04
Tax included
€15.48 tax excl.
A new programmer-debugger with the USB interface. It supports the STM32 microcontrollers via SWD interface. ZL30PRGv2-1 is compatible with the STMicroelectronics ST-Link/V2-1. It also has the function of USB-UART converter, thanks to which it can successfully replace the KAmodRS module.
Description
The ZL30PRGv2-1 interface is a functional replacement of the STMicroelectronics ST-Link/V2-1 device. With it, you can program the STM32 microcontrollers in the system and debug their work. The device works with a PC via a USB interface, it is supported by programming environments: uVision (Keil/ARM, for STM32), IAR Embedded Workbench (IAR, for STM32), True Studio (Atollic, for STM32), VX-toolset for ARM Cortex-M (TASKING, for STM32).
Features
- embedded IDC20 female connector
- allows to flash and debug STM32 microcontrollers
- fully compatbile with the ST-Link/V2-1 (STMicroelectronics)
- it works with: µVision (Keil), IAR Embedded Workbench (IAR), True Studio (Atollic), VX-toolset for ARM Cortex-M (TASKING)
- embedded microUSB connector
- an USB-UART function (with pinout compatble with KAMAMI KAmodRS)
- supplied via USB
- possibility of firmware upgrade
- target voltages range:
- SWD: 1.65...3.6V
- Working temperature range: 0...50°C
Kit content
- Programmer ZL30PRGv2-1
- USB A/B-micro cable
559992
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
