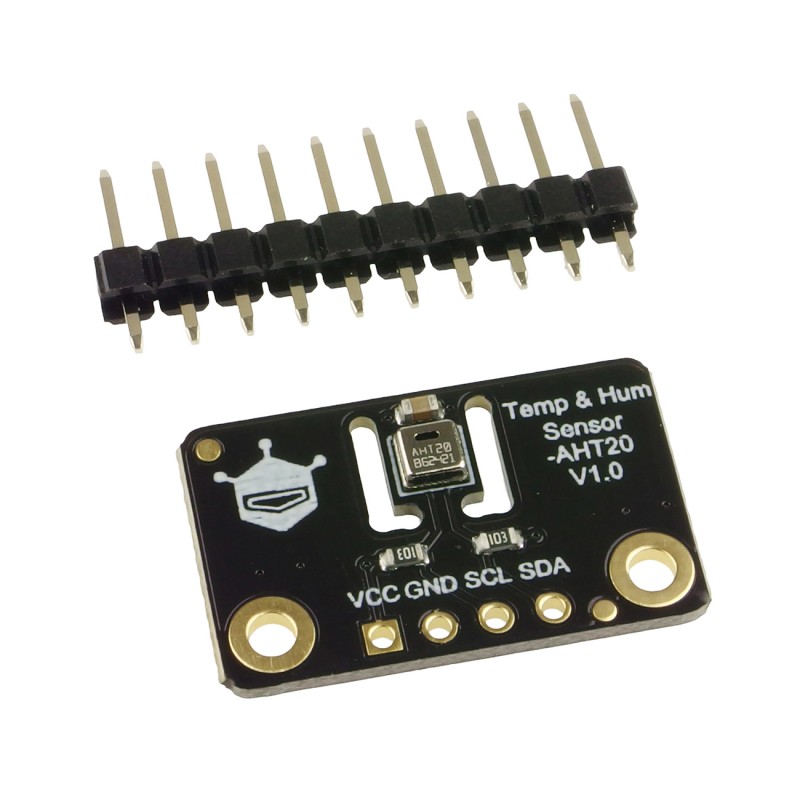

Fermion: AHT20 Temperature and Humidity - module with a temperature and humidity sensor
ID: 1181309
5902186310605
zł20.54
Tax included
zł16.70 tax excl.
A module with a temperature and humidity sensor based on the AHT20 system. It communicates via the I2C interface. DFRobot SEN0527
Description
A module with a temperature and humidity sensor based on the AHT20 system. It has an accuracy of ± 2% when measuring relative humidity from 20 to 80% and an accuracy of ± 0.3 ° C when measuring temperatures from 20 to 60 ° C. The module is compatible with 2V and 5V controllers, and communication is via the I2C interface. Full documentation is available on the product page.
Features
- Temperature measurement range: -40 to 85°C (accuracy: ± 1°C in the entire range)
- Humidity measuring range: 0 to 100% RH (accuracy: ± 3% RH over the entire range)
- I2C interface (address 0x38)
- Supply voltage: 2 V to 5 V
- Dimensions: 30 x 20.5 mm
Kit contains
- Fermion: AHT20 Temperature and Humidity Sensor
- 4-pin header
1181309
Data sheet
- Interface
- I2C
- Type of sensor
- AHT20
- Power supply voltage
- 2.0..5.5V
- Sensor type
- Temperatury
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
