Gravity: I2C Non-contact IR Temperature Sensor - module for non-contact temperature measurement with MLX90614-DCC sensor
ID: 562374
5902186312302
zł86.48
Tax included
zł70.31 tax excl.
Module with MLX90614-DCC sensor for non-contact temperature measurement in the range from -70℃ to 380℃. I2C communication. DFRobot SEN0206
Description
Module with MLX90614-DCC sensor for non-contact temperature measurement in the range from -70℃ to 380℃. The sensor uses infrared radiation and does not require direct touch. In addition, this measurement method allows for quick and accurate reading. The kit uses the MLX90614 infrared temperature measurement module. It measures surface temperature by detecting infrared energy and wavelength distribution. The infrared temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing and output module. The optical system collects the infrared radiation in its field of view and the energy of the infrared radiation is converted into corresponding electrical signals. After processing by the amplifier and the signal processing circuit, the signal is converted into a temperature value. The MLX90614 is self-calibrating and has a low-noise amplifier integrated into the signal processing chip. The module can be used in medicine, environmental monitoring, home automation, automotive electronics, aviation and the military. The product wiki page offers a user manual and sample programs.
Features
- Model: MLX90614-DCC
- Temperature measurement range: -70℃ to 380℃ (resolution 0.01℃)
- Interface type: I2C
- FOV: 35°
- Supply voltage: 3.3 V to 5 V
- Current consumption: 1.2 mA
- Dimensions: 31.5 x 18 mm
- Weight: 15 g

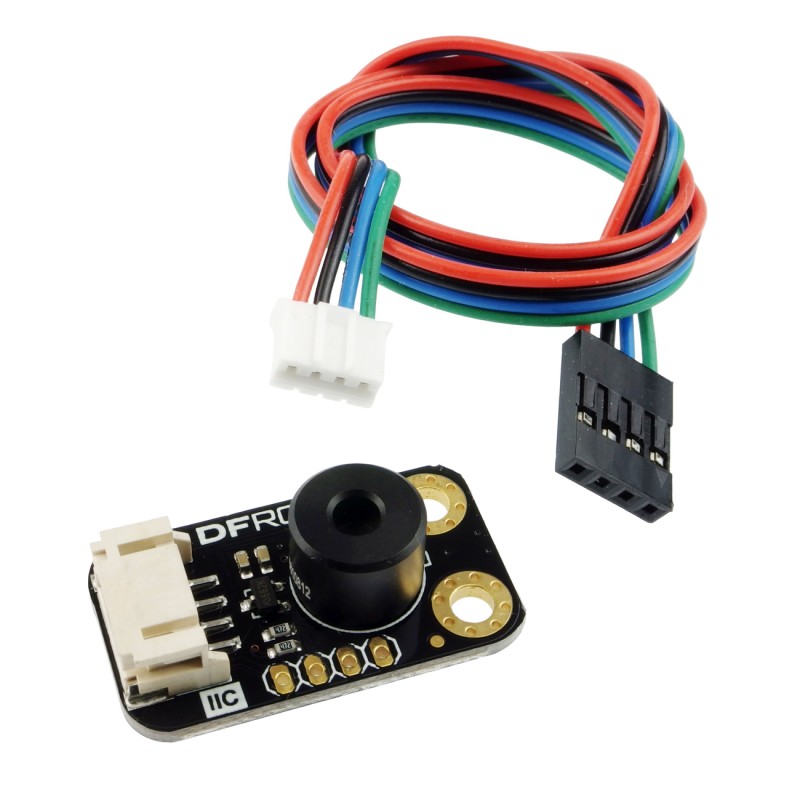

Kit contains
- Temperature measurement module with MLX90614-DCC sensor
- JST PH2.0 4-Pin cable
562374
Data sheet
- Interface
- I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Bezdotykowy
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
