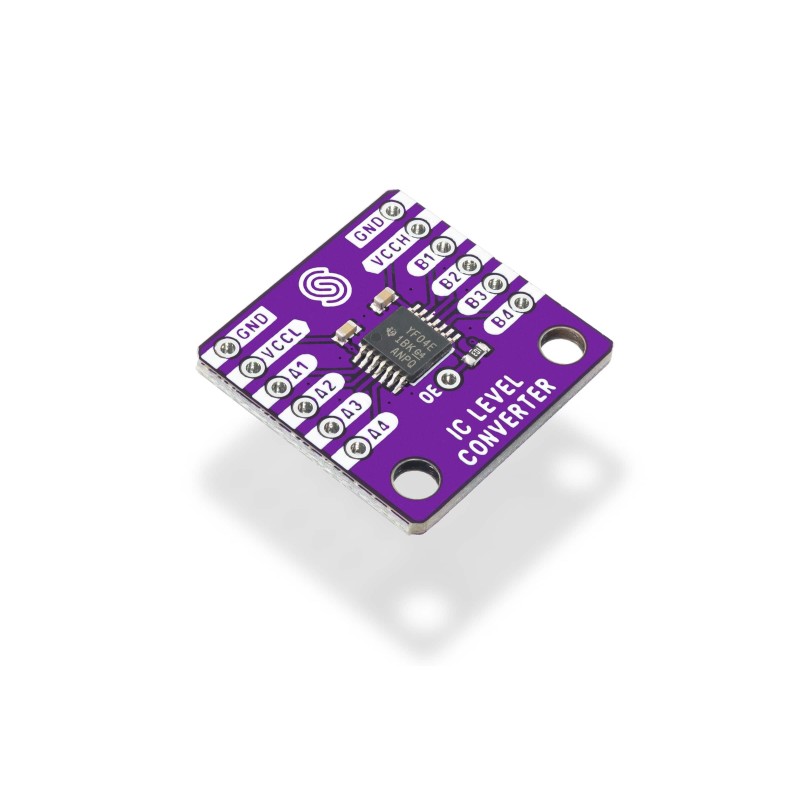

Four-channel logic level converter designed for connecting digital devices operating at different signal voltages. It uses the TXS0104 IC and supports bidirectional level conversion for I2C bus signals. Soldered 333016

Delivery date unknown
Out-of-Stock

Description

The TXS0104 provides bidirectional logic level conversion across 4 channels, enabling communication between devices operating at different logic voltages. The module can be used, for example, to connect a microcontroller using 3.3 V logic with a peripheral operating at 5 V logic without directly applying the higher voltage level to the inputs of the low-voltage device.

The module is designed for I2C signal level conversion and allows devices with different logic levels to operate on the same bus. Pins with a 2.54 mm pitch enable installation on a breadboard, while the mounting holes are compatible with LEGO spacing. The board measures 22 x 22 mm.

Features

  • IC: TXS0104
  • Function: bidirectional logic level conversion
  • Number of channels: 4
  • Communication protocol: I2C
  • Maximum voltage: 30 V
  • Compatible with 3.3 V and 5 V logic levels
  • Pin pitch: 2.54 mm
  • Breadboard-compatible design
  • LEGO-compatible mounting holes
  • Dimensions: 22 x 22 mm
  • Open-source design
  • Manufactured in Croatia, EU
1208241

Data sheet

Number of channels
4
Voltage on page A
1,65 - 3,6 V
Voltage on side B
2,3 - 5,5 V
