- New
MiniPCIe WiFi 6 RTL8852BE Network Card Module + Bluetooth 5.2 with Antennas 2.4 / 5 GHz - Waveshare 31594
ID: 1203974
zł48.07
Tax included
zł39.08 tax excl.
MiniPCIe wireless network card module based on the Realtek RTL8852BE chipset supporting the Wi-Fi 6 (802.11ax) standard and Bluetooth 5.2. Enables communication in the 2.4 GHz and 5 GHz bands with maximum throughput up to 574 Mb/s (2.4 GHz) and 1200 Mb/s (5 GHz), using MU-MIMO technology to improve transmission efficiency. The design features IPEX-4 antenna connectors and is compatible with Linux and Windows 10 / 11 systems. Waveshare Wireless-MINIPCIE-RTL8852BE
Description

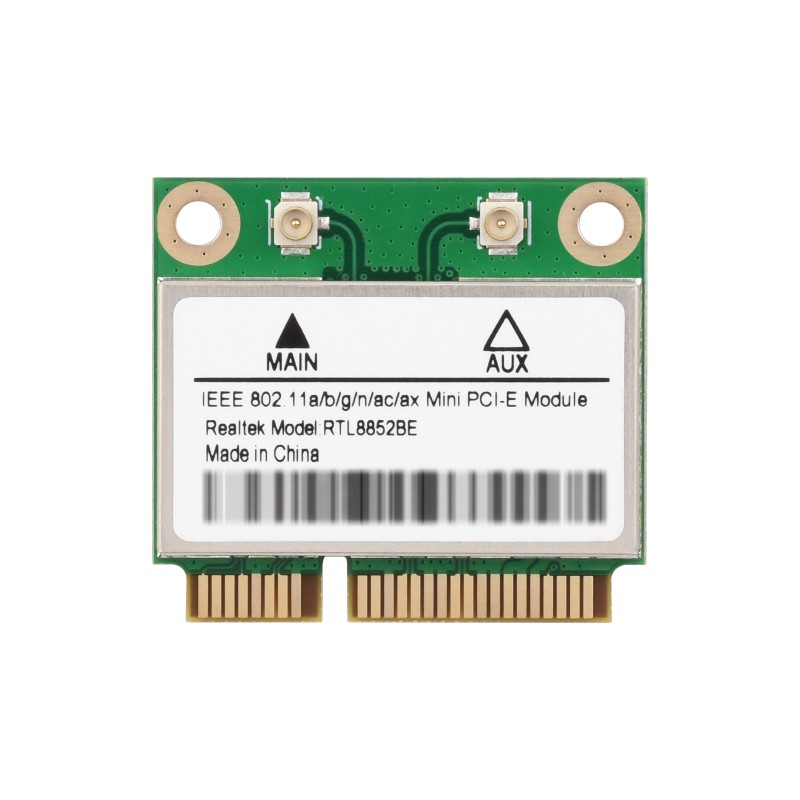

Waveshare Wireless-MINIPCIE-RTL8852BE is a MiniPCIe network card equipped with the Realtek RTL8852BE chipset supporting the Wi-Fi 6 (802.11ax) standard and Bluetooth 5.2. The module enables wireless communication in the 2.4 GHz and 5 GHz bands, providing high data throughput and stable network connectivity in industrial computers, embedded systems, and IoT devices equipped with a MiniPCIe slot.

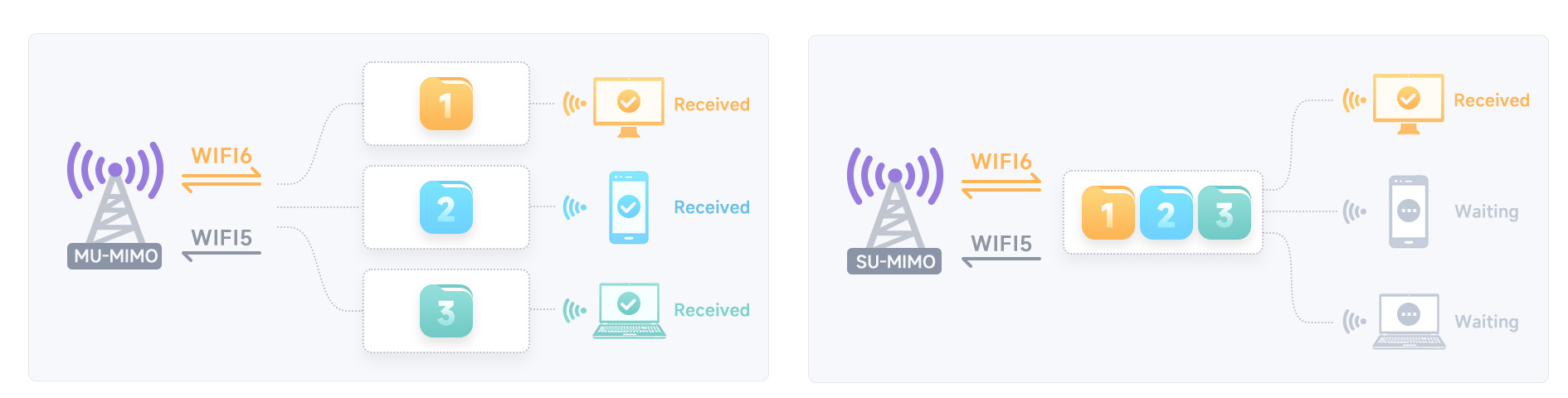

The Wi-Fi 6 interface offers data rates up to 574 Mb/s in the 2.4 GHz band and up to 1200 Mb/s in the 5 GHz band. The use of MU-MIMO technology allows simultaneous communication with multiple devices, improving connection quality and transmission efficiency in environments with high network load.
The module also integrates a Bluetooth 5.2 interface enabling wireless communication with peripheral devices such as keyboards, controllers, or smartphones. The card uses IPEX-4 antenna connectors for connecting external antennas, while compatibility with Linux and Windows 10 / 11 allows deployment across many hardware platforms.
Features
- Network card type: MiniPCIe Wi-Fi 6
- Chipset: Realtek RTL8852BE
- Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Supported bands: 2.4 GHz and 5 GHz
- Speed up to 574 Mb/s in the 2.4 GHz band
- Speed up to 1200 Mb/s in the 5 GHz band
- Bluetooth: 5.2
- MU-MIMO technology

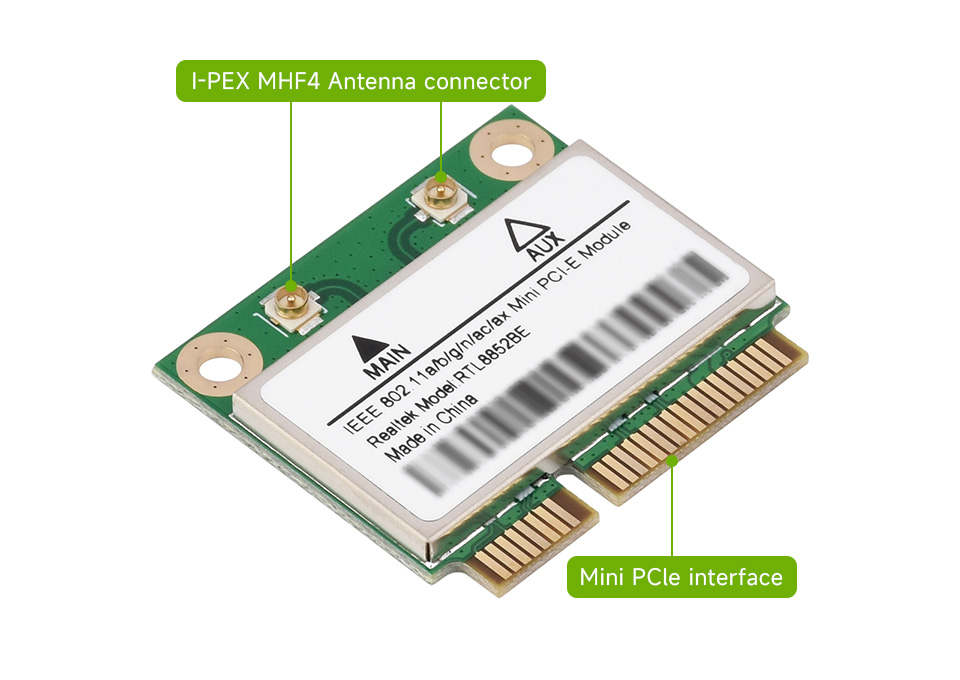

- Antenna connectors: IPEX-4
- Interface: MiniPCIe
- Supported systems: Linux, Windows 10, Windows 11

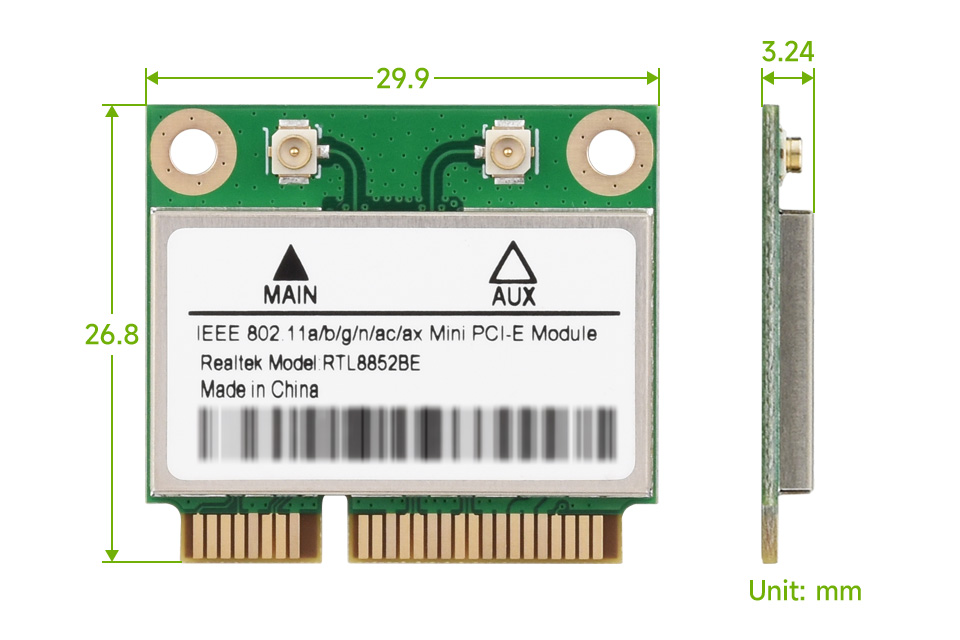

- Dimensions: 29.9 x 26.8 x 3.24 mm
Kit includes
- 1 x Wireless-MINIPCIE-RTL8852BE card
- 2 x IPEX-1 to SMA antenna cable
- 2 x 6 dBi antenna
- 1 x screwdriver
- 1 x MiniPCIe mounting bracket
- 1 x screw set
1203974
Data sheet
- Logic voltage
- 3,3 V
- Wi-Fi chip
- RTL8852BE
- Wi-Fi standard
- 802.11 a/b/g/n/ac/ax
- Frequency range
- 2,4 GHz/5 GHz
- Baud rate
- 1200 Mbps
- Antenna connector
- I-PEX
- Power supply voltage
- 3,3 V
