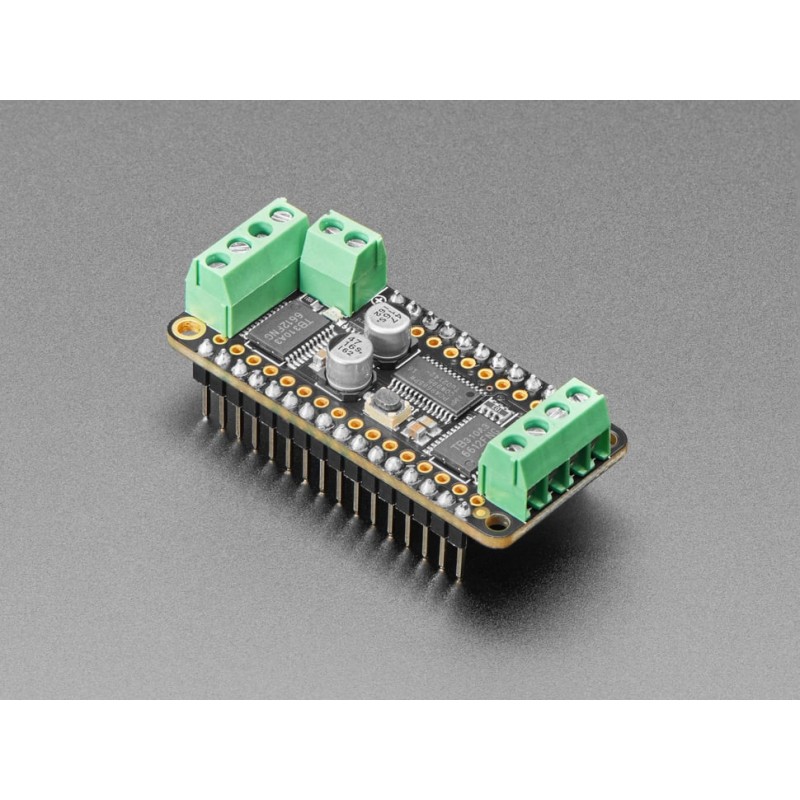

DC Motor + Stepper FeatherWing – top angled view
search
  • DC Motor + Stepper FeatherWing – top angled view
  • DC Motor + Stepper FeatherWing – bottom view
  • DC Motor + Stepper FeatherWing – side view
  • DC Motor + Stepper FeatherWing – front view
  • DC Motor + Stepper FeatherWing – size comparison with a coin
ID: 1202040
zł108.42
Tax included

zł88.15 tax excl.

FeatherWing expansion board for controlling DC motors, stepper motors, and servo motors, based on the PCA9685 PWM controller and TB6612FNG H-bridge drivers. Adafruit 3243

24h
Available
Available quantity: 2
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

DC Motor + Stepper FeatherWing is an expansion module designed for use with Adafruit Feather boards. The board supports control of up to four DC motors, two stepper motors, or four servo motors via the I2C interface. The module is used in automation, robotics, and mechatronic systems built around the Feather platform.

The module uses the PCA9685 PWM controller to generate control signals and two TB6612FNG H-bridge drivers to handle motor loads. PWM-based control enables regulation of DC motor speed and control of stepper motor torque. The board supports an external motor power supply, electrically isolated from the logic supply, allowing operation with higher motor currents. The FeatherWing is used in mobile robotic platforms, manipulators, precision drives, and educational systems.

Features

  • PWM controller: PCA9685
  • H-bridge drivers: 2× TB6612FNG
  • Intended use: FeatherWing module for Adafruit Feather
  • Supported DC motors: up to 4
  • Supported stepper motors: up to 2
  • Supported servo motors: up to 4
  • Communication interface: I2C
  • Speed control: PWM
  • Maximum channel current: up to 1.2 A continuous
  • Motor power supply: external
  • Logic power supply: from Feather board
  • Form factor: FeatherWing expansion board
  • Assembly status: assembled
1202040

Data sheet

Output current
1,2 A
Number of channels
8
Supply voltage min
5 V
Supply voltages max
12 V
