Big Easy Driver
ID: 546763
5906623417193
zł107.10
Tax included
zł87.07 tax excl.
ROB-12859
ROB-12859 Big Easy Driver
Description:
The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to a max 2A/phase. It is based on the Allegro A4988 stepper driver chip. It’s the next version of the popular Easy Driver board.
Each Big Easy Driver can drive up to a max of 2 A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 30V, and includes on-board 5 V / 3.3 V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling while operating at 1.4-1.7 A/phase, a heatsink is required for loads approaching 2 A/phase. You can find the recommended heatsink in the related items below.
Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to him for product support and continued development.
Features:
- Bi-polar Microstepping Driver
- 2 A / Phase Max
- 1.4-1.7 A /Phase w/o Heatsink
- Max Motor Drive Voltage: 30 V
- On-board 5 V / 3.3 V Regulation
546763
Data sheet
- Output current
- 2A
- Number of channels
- 2
- Supply voltage min
- 8 V
- Supply voltages max
- 35 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
DRV8835 Dual Motor Driver Carrier
zł23.90
24h
Available quantity: 6
Available
The pad for use with shallow Feather series contains two TB6612 chips that allow you to control DC motors or stepper motors. The I2C interface is used to communicate with the overlay. Adafruit 2927
zł113.25
24h
Available quantity: 3
Available
Black Edition offers adjustable current limiting, over-current and over-temperature protection, and five different microstep resolutions. It operates from 8 V to 35 V and can deliver up to 2 A per coil with sufficient additional cooling. Pololu 2128
zł39.90
24h
Available quantity: 1
Available
Vibration motor driver with support for various vibration effects. For communication, it uses the I2C interface led out to the Stemma QT and goldpin connectors. It is compatible with LRA and ERM engines. Adafruit 2305
zł58.51
Delivery date unknown
No product available!

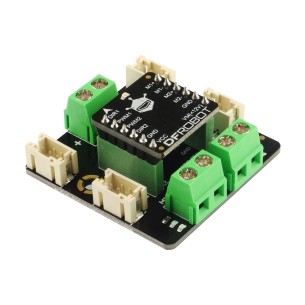

2x1.2A DC Motor Driver is a dual controller of DC motors with a Gravity connector, supplied with 2.5 ... 12V voltage with a maximum current consumption of 1.2A (3.2A peak) per channel. DFRobot DRI0044-A
