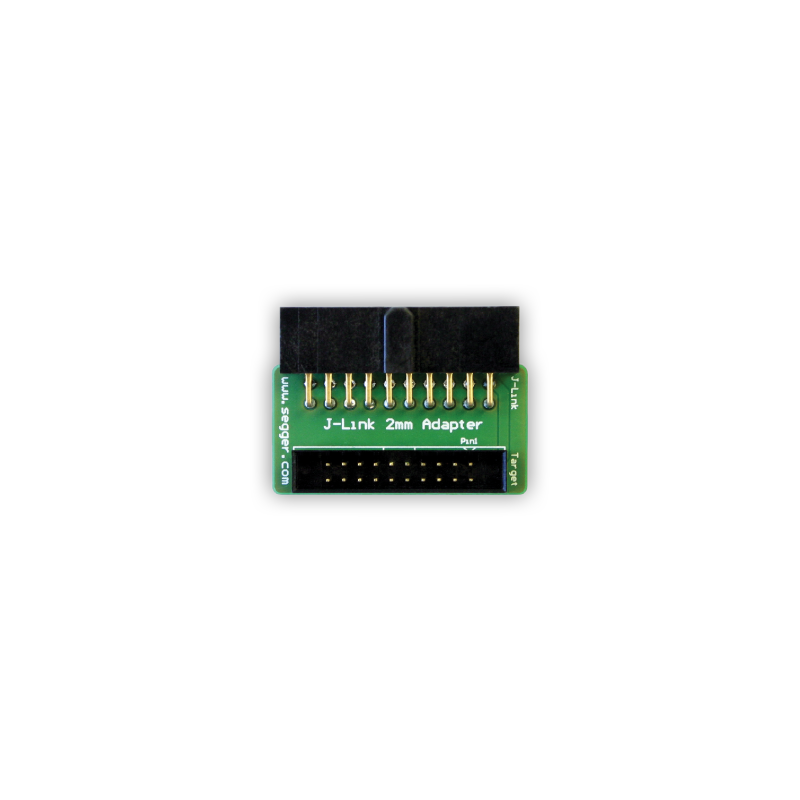

2mm Adapter (8.06.11)
ID: 1189739
5902186319516
zł256.43
Tax included
zł208.48 tax excl.
A 1:1 adapter that allows you to connect a standard 20-pin connector to its 2mm pitch counterpart without any additional configuration. For some models, such as the J-Link PRO, pins 14, 16, 18 and 20 may not be connected to ground, so it is recommended to leave them unconnected on the target hardware. Segger 2mm Adapter (06/08/11)
Description
The 2mm Adapter is a 1:1 adapter that allows for connection between a standard 20-pin connector and a connector with a 2 mm pitch. Thanks to the identical pinout, the adapter does not require any additional configuration or changes to the target hardware. It is an ideal solution for users who need to transition to a smaller connector size without altering functionality. Its simple design ensures ease and speed of use, making it a popular choice among engineers and electronic system designers. The adapter can be used in various applications, including debugging and programming systems with FPGA or microcontroller devices. Additionally, it ensures full compatibility with J-Link devices, including the advanced J-Link PRO model, making it a versatile solution.
For some models, such as the J-Link PRO, pins 14, 16, 18, and 20 may not be connected to ground (GND) because they are reserved for future use. It is recommended to leave these pins unconnected on the target hardware if their purpose is unclear.
Features
- 1:1 adapter – identical pinout as in the standard 20-pin connector
- Supports 2 mm pitch connectors
- No need to change the pinout on the target hardware
- Designed for use with J-Link devices, including J-Link PRO
- Pins 14, 16, 18, and 20 may not be connected to GND on some models
- Dimensions: 114.3 x 127 x 12.7 mm
