J-Link SWD Isolator (8.07.01)
ID: 204367
5902186326804
zł1,023.73
Tax included
zł832.30 tax excl.
Standard 20-pin 0.1 male connector to provide electrical isolation, Segger

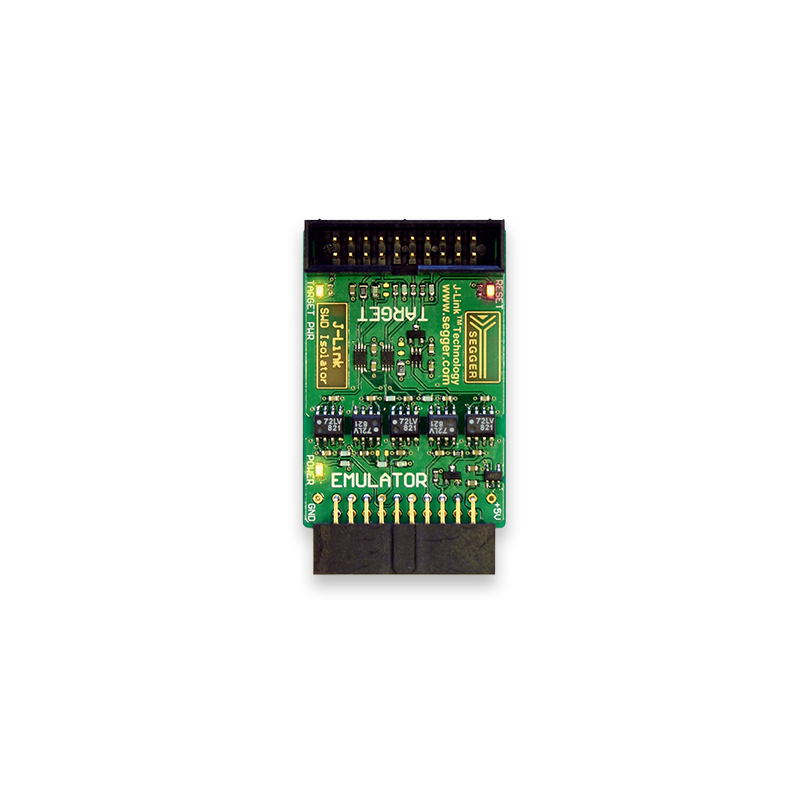

J-Link SWD Isolator (8.07.01)
The J-Link SWD Isolator can be connected between J-Link and any ARM-board that uses the standard 20-pin 0.1" male connector to provide electrical isolation. This is essential when the development tools are not connected to the same ground as the application. It is also useful to protect the development tools from electrical spikes that often occur in some applications, such as motor control applications. Another typical field of application is development of products with sensors or other analog circuitry, in which case the target hardware is protected from electrical noise originating from the development PC.
The J-Link SWD Isolator is compatible with J-Link, J-Link Pro, J-Link Ultra, J-Link Ultra+ and Flasher ARM.
Features
- 1kV DC isolation
- 3.3V and 5V target operation supported
- Powered from emulator and target
- Standard 20-pin 0.1" male (target side) and female (emulator side) connector supporting SWCLK, SWDIO, SWO, RESET signals
- Power consumption on target side: < 50mA
- SWD frequency: Up to 4MHz
- 3 LEDs to indicate emulator power, target power and target RESET
Power supply
Both sides, target and emulator, are totally isolated from each other and separately powered. The target side draws power from pins 1 or 2, the emulator side draws power from pin 19.
Connectors and indicators
The SWD Isolator uses high speed optocouplers that allow a very low propagation time between input and output. It comes with the following connectors and indicators:
- 20-pin 0.1" female EMULATOR connector which can be plugged directly into J-Link
- 20-pin 0.1" male TARGET connector for connection of the target cable
- Green LED indicating power on the emulator side
- Green LED indicating power on the target side
- Red LED indicating RESET active
Block diagram
The following functional block diagram illustrates the functional connections between the emulator and target.
Target connector
The following picture shows the target side pinout of the J-Link SWD Isolator:
The Emulator side of the Isolator is plugged directly into the Emulator. The Target side is connected to the target via a 20-pin flat cable.
Download:
Code: J-Link SWD Isolator (8.07.01)
204367
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
