ArduCAM MINI High Quality Camera - module with IMX477 HQ camera for Jetson Nano/Xavier NX
ID: 586902
5906623481415
zł307.30
Tax included
zł249.84 tax excl.

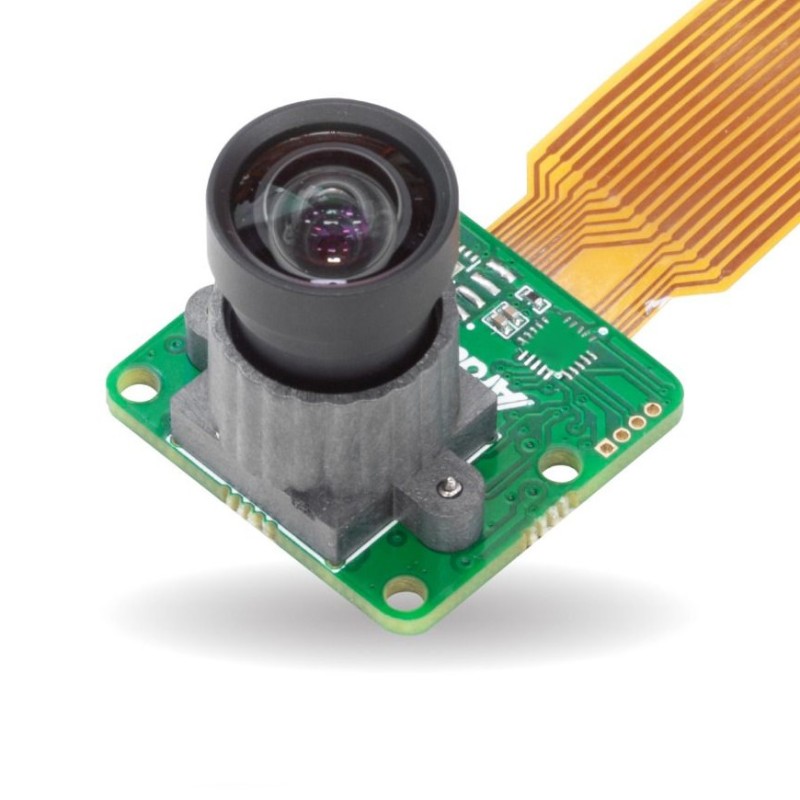

Mini camera module with IMX477 HQ sensor for NVIDIA Jetson Nano and Xavier NX. Equipped with a lens with an M12 mount with a viewing angle of 75°. ArduCAM B0251
Description
Camera module with IMX477 sensor with a resolution of 12.3 MPx designed for NVIDIA Jetson Nano and NVIDIA Jetson Xavier. It is equipped with a lens with an M12 mount with a viewing angle of 75°. The camera allows you to record movies with a resolution of 1080p30, 720p60 or 640x480p60/90, has an integrated IR filter and communicates via the MIPI CSI interface. The board has dimensions of 24 x 25 mm, which makes it compatible with the popular Raspberry Pi Camera Board V2 module.
Features
Camera
- Sensor: IMX477
- Optical format: 1/2.3″ (7.857 mm diagonal)
- Resolution: 4056 (H) x 3040 (V) 12.3MP
- Pixel size: 1.55um x 1.55um
- IR sensitivity: visible light (built-in IR filter)
- Interface: MIPI CSI-4
- Default lens mount: M12 mount
- Frame rate: 4K/30fps
Lens
- Format: 1/2.3 inch
- Focal length: 3.9 mm
- Aperture (F): F2.8
- Field of View (FOV): 75° (H)
- Mounting: M12
- Rear focal length: 4.49 mm
- MOD: 0.1m Dimension: Φ14 × 18.67mm
Kit contains
- 12.3MP IMX477 camera module
- Lens
- FPC adapter 15-pin do 22-pin 150 mm
586902
Data sheet
- Resolution
- 12,3 MPx
- Interface
- MIPI CSI-4
- Sensor
- Sony IMX477
- IR filter
- Yes
- Lens assembly
- M12
