Analog Discovery Studio (410-384) - Portable laboratory (EDU)

ATTENTION! This product is for academic recipients (students and academic teachers) only!

After the ordering, please send us by e-mail the data listed below:

• the name and last name
• position (student, teacher)
• e-mail (with the University domain)
• University name
• Facultie / Section
• University address
• University phone no.
• Notice! Students must send a copy of University Identity Card (by e-mail)

Description

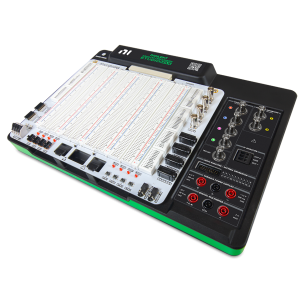

Analog Discovery Studio is a fully functional, portable testing and measuring device that can transform any space into an electronics laboratory. Equipped with 13 tools incl. oscilloscope, logic analyzer, spectrum analyzer and waveform generator. The Discovery Studio set offers a whole set of instruments with a convenient, replaceable interface that can be freely expanded according to your needs.

The tool is available with free WaveForms software for Mac, Linux and Windows. The WaveForms SDK includes libraries and examples for creating custom applications in Python, C ++, C # and Visual Basic. Additional support, examples and documentation are also available for tools such as MATLAB and LabVIEW.

Features

Analog Inputs:

• Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger
• Two analog input channels, accessible through BNC or MTE connectors
• Channel type: differential (with MTE) or single-ended (with BNC)
• Analog bandwidth with BNC cables: 30+ MHz @ 3dB
• Analog bandwidth with MTE flywires: 9 MHz @ 3dB
• Input range ±25 V (±50 V diff)
• Input protected to ±50 V
• 14-bit resolution
• Operate at 100 MS/s

Analog Outputs:

• Used in the Waveform Generator and Network Analyzer
• Two arbitrary waveform generator channels, accessible through BNC or MTE connectors
• AC amplitude (max): ±5 V
• Analog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)
• Operate at 100 MS/s

Digital Inputs and Outputs:

• Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
• Channels: 16
• Input logic standard: LVCMOS (1.8/3.3V, 5V tolerant)
• Output logic standard: LVCMOS (3.3V, 12mA)

Power Supplies:

• 12 volt supply: 12V ±5%; 0.2 Amps max
• -12 volt supply: -12V ±5%, 0.2 Amps max
• 5 volt supply: 5.0V ±5%; 1.0 Amps max
• 3.3 volt supply: 3.3V ±5%; 1.0 Amps max
• V+ and V- rails: 1V to 5V (V+), and -1V to -5V (V-)
• Maximum power output: 2.1W for each supply
• Maximum current output: 700mA for each supply

Kit contains

• Analog Discovery Studio
• Breadboard Canvas
• 15 V 2.4 A power supply
• USB A to B cable
• A set of Analog Discovery Studio MTE Cables
