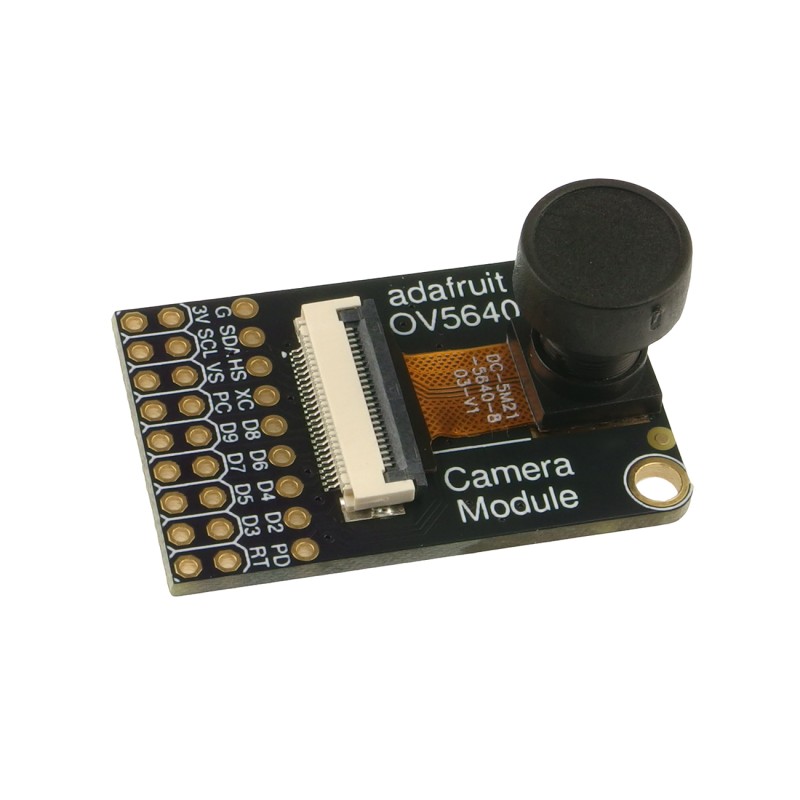

OV5640 Camera Breakout - 5MP camera module with OV5640 sensor
ID: 1183984
5902186301702
zł113.22
Tax included
zł92.05 tax excl.
Camera module with OV5640 sensor with a resolution of 5 MPx. It features a 120° viewing angle lens and communicates via a parallel interface. Adafruit 5673
Description
Camera module with a resolution of 5 MPx. It uses the OV5640 sensor and has a 120° field of view lens. The camera can take pictures with a resolution of 2592x1944 and record videos at 15 FPS with a resolution of 2592x1944. The sensor offers automatic image control functions AEC, AWB, ABF, ABLC and high sensitivity thanks to OmniBSI technology. It supports image scaling and windowing. It is configured via I2C interface, and data is transferred via 8-bit parallel interface. It can be used with popular development boards such as modules with RP2040 microcontroller or ESP32. Full documentation along with configuration examples are available on the product wiki page.
Features
- Sensor: 1/4" Sony CMOS OV5640
- Resolution: 5 MP, 2592x1944
- 1.4um x 1.4um pixels with OmniBSI technology, high sensitivity, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality control: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
- Data format: YUV(422/420)/YCbCr422, RGB565/555/444, CCIR656, Raw RGB, compressed data.
- Field of view (FOV): 120°
- SCCB interface (I2C compatible) for configuration
- Parallel interface for data transfer
- Power supply: 3.3 V
- Dimensions: 35.7 x 23 x 17.5 mm
Kit contains
- OV5640 Camera Breakout module
- 2 x 16-pin straight male connector
1183984
Data sheet
- Resolution
- 5MPx
- Interface
- Parallel
- Sensor
- OV5640
- IR filter
- Yes
- Lens assembly
- M12
