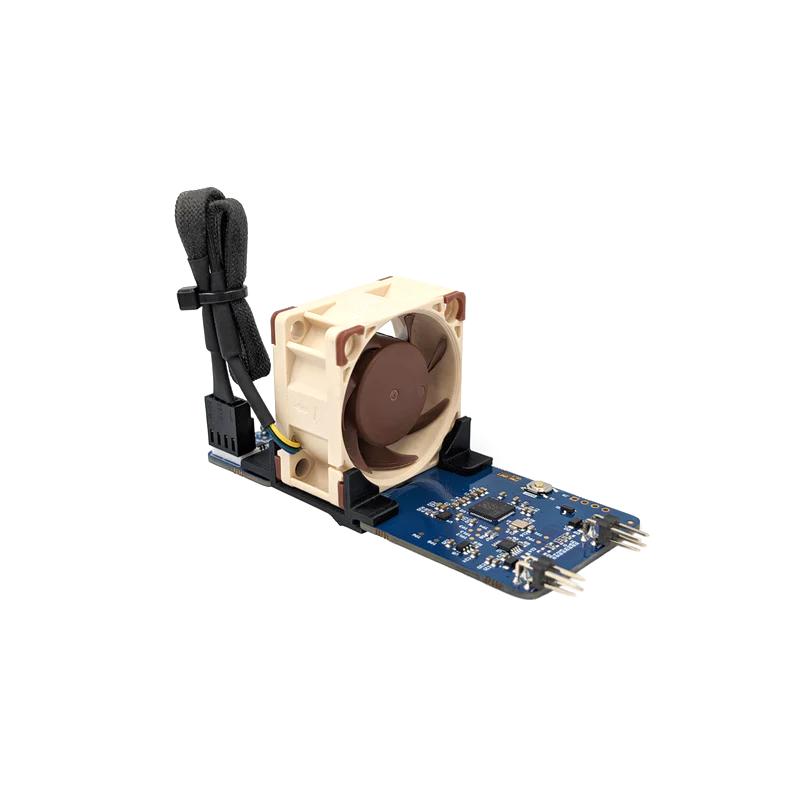

FanSMART-1V1-0 - Intelligent cooling module with fan for Compute Blade boards
ID: 1195112
zł263.68
Tax included
zł214.37 tax excl.
Cooling module designed to provide efficient cooling for the Uptime Industries Compute Blade platform, especially in the case of heavy workloads and 24/7 operation. Thanks to the advanced cooling system, RP2040 microcontroller and temperature sensors, the device guarantees stable operation and eliminates the risk of overheating, and also allows for flexible adjustment of the work logic and seamless integration with the Compute Blade. Uptime Industries FanSMART-1V1-0
Description
The Smart Fan Unit is designed to provide effective cooling for the Uptime Industries Compute Blade platform. It is specifically built to support devices operating 24/7, especially under heavy loads, where active cooling is essential. By utilizing an advanced cooling system, it prevents the overheating of Compute Module 4 (CM4) units and ensures stable device operation, eliminating the risk of performance throttling. The Smart Fan Unit is an advanced solution offering flexibility in adjusting the operating logic. The built-in RP2040 microcontroller allows for the expansion of the system with additional sensors. The device is powered directly by the Compute Blade, eliminating the need for additional wiring. It is compatible with two Compute Blade units, enabling effective cooling under high load conditions. The Noctua NF-A4x20 5V PWM fan ensures reliable ventilation, and the built-in temperature sensors and LED indicators for device status make it easy to monitor and control the system's operation.
Features
- Compatibility: Compute Blade RC2, V1.0, Compute Blade Enclosures
- Interface: UART Fan Unit Connector
- Power Supply: 5V via Fan Unit port (powered by Compute Blade) or USB-Type C
- Power Consumption: Maximum 0.5W
- Fan: PWM Fan, 5V, 40x20mm (Noctua NF-A4x20 5V PWM)
- 2 Temperature Sensors
- Memory: 16M-Bit Serial Flash Memory
- 2 Programmable RGB LEDs, 1 LED for GPIO25, User Button, Reset Button, Boot Button
- Compatible with: Raspberry Pi RP2040 (built-in microcontroller)
- Airflow Control: EMC2101 Chip
- Temperature Monitoring: EMC2101 Chip
- Dimensions: 40 x 95 x 43.2 mm
