PCIe-to-M.2 NVMe SSD HAT+ adapter for Raspberry Pi 5 with 128 GB bootable drive - Waveshare 27522
ID: 1196627
5902186321052
zł147.88
Tax included
zł120.23 tax excl.

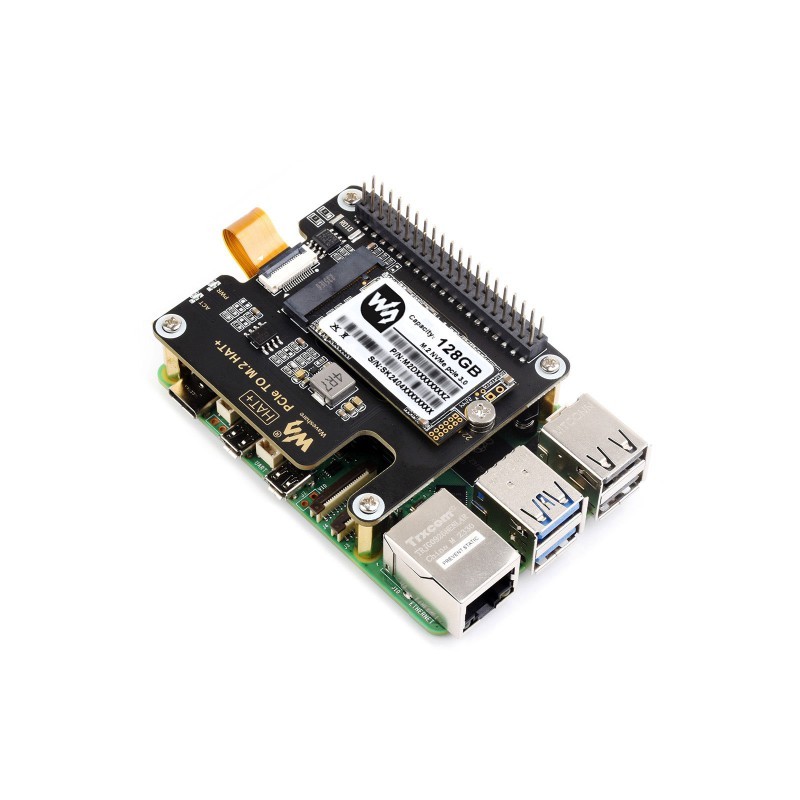

The PCIe TO M.2 HAT+ Acce A kit with a 128 GB SSD is a ready-to-use solution that expands the Raspberry Pi 5 with fast NVMe storage, providing enhanced performance and the ability to boot from the drive. With its compact design, power monitoring support, and compatibility with 2230/2242 form factors, the kit is ideal for building home servers, NAS systems, workstations, and projects requiring high data throughput.
Description
The PCIe TO M.2 HAT+ Acce A kit allows you to expand the Raspberry Pi 5 with a high-speed NVMe solid-state drive in the M.2 2242 format with a capacity of 128 GB. The adapter uses the Raspberry Pi 5’s PCIe x1 Gen2/Gen3 interface via a 16PIN FFC connector, supports operating system boot from the SSD, and significantly boosts I/O performance.
The board features an EEPROM chip and power monitoring circuit for real-time supervision of the SSD’s power status. Built-in LED indicators assist with operation diagnostics, while reserved ventilation holes allow the installation of a cooling fan to enhance system stability.
Features
- Interface: PCIe x1 Gen2/Gen3 via 16PIN FFC (for Raspberry Pi 5)
- Supports M.2 2230/2242 NVMe-compliant SSDs
- Enables Raspberry Pi 5 boot from SSD
- LED indicators for operational status
- EEPROM chip and SSD power monitoring circuit
- HAT+ design compatible with Raspberry Pi 5
- Ventilation slots for optional active cooling
- Dimensions: 56x65,5mm
Included
- PCIe TO M.2 HAT+ x1
- SK-NVME 2242 128 GB SSD x1
- 16PIN FFC cable (40 mm) x1
- Mounting spacer set x1
- 2×20 pin header x1
1196627
Data sheet
- Compatible with
- Raspberry Pi 5
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
