ACS72981 current sensor 0-200A 3.3V Pololu 5283
ID: 1194421
5902186338791
zł63.92
Tax included
zł51.97 tax excl.
Current sensor in the Large Carrier version based on the ACS72981ELRATR-200U3 chip, designed for unidirectional current measurement from 0 A to 200 A with a 3.3 V supply voltage. The module uses Hall-effect sensing, an electrically isolated current path, and an analog output signal proportional to the measured current. Pololu 5283
Description

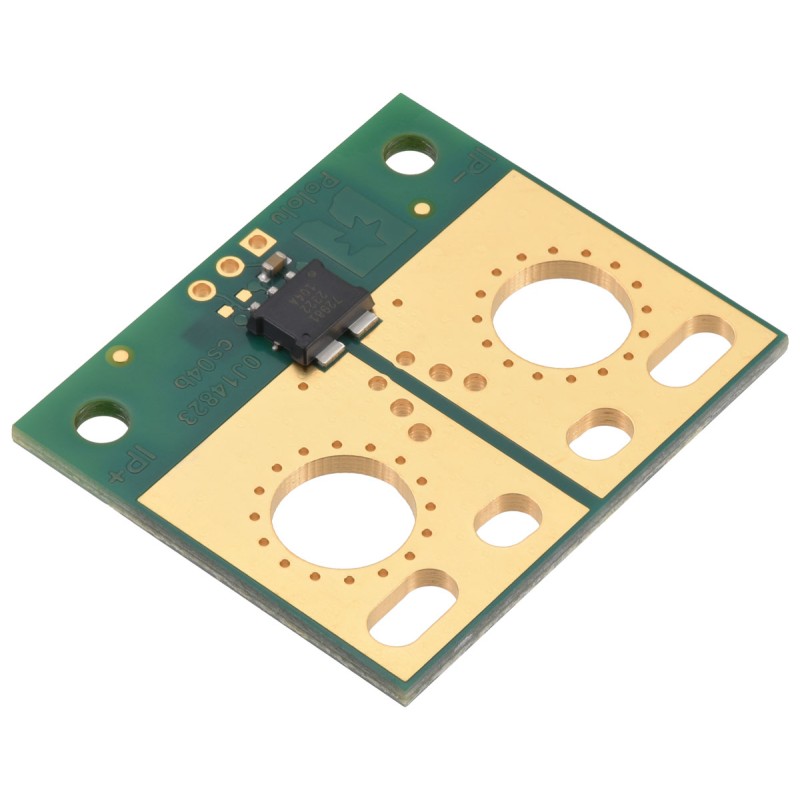

Current sensor in the Large Carrier version Pololu 5283 based on the Allegro ACS72981ELRATR-200U3 chip, designed for unidirectional AC and DC current measurement from 0 A to 200 A. The sensor operates from a supply voltage of 3.0 V to 3.6 V, with a nominal voltage of 3.3 V, and uses Hall-effect sensing with an electrically isolated current path.
The module provides an analog output voltage proportional to the measured current. At a supply voltage of 3.3 V, the sensitivity is 13.2 mV/A and the output zero point is 0.33 V. The low-resistance current path, typically around 0.2 mΩ, minimizes power losses and heat generation when measuring high currents.
The sensor features a bandwidth of 250 kHz and a response time below 2 µs, making it suitable for applications requiring fast current monitoring. The Large Carrier board uses a 6-layer PCB with 2 oz copper to improve heat dissipation. VCC, GND, and VIOUT pins with a 2.54 mm pitch allow convenient connection to microcontrollers, breadboards, and signal wiring.
Features
- Sensor IC: ACS72981ELRATR-200U3
- Sensing technology: Hall effect
- Current measurement range: 0 A to 200 A
- Current measurement type: unidirectional
- Supply voltage: 3.0 V to 3.6 V
- Nominal supply voltage: 3.3 V
- Output type: analog, proportional to current
- Sensitivity: 13.2 mV/A at 3.3 V
- Output zero point: 0.33 V at 3.3 V
- Bandwidth: 250 kHz
- Response time: < 2 µs
- Current path resistance: approx. 0.2 mΩ
- Measurement method: in-line, galvanically isolated
- Supply current: approx. 14 mA
- PCB: 6 layers, 2 oz copper
- Signal pin pitch: 2.54 mm
- Dimensions: 1.4″ × 1.2″ (approx. 35.6 × 30.5 mm)
- Weight: approx. 4.2 g
- Manufacturer: Pololu
- Manufacturer code: 5283
1194421
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- 0 - 200 A
- Sposób podłączenia
- Szeregowy
- Dimension diagrams of the ACS72981xLR Current Sensor Carriers (391,08 kB)
- 3D model of the ACS72981xLR Current Sensor Large Carriers (3,11 MB)
- Drill guide for the ACS72981xLR Current Sensor Large Carriers (18,12 kB)
- ACS72981 datasheet
- Allegro Application Note AN296169: Characterizing System Bandwidth in Complex Current Sensor Applica
- Allegro product page for the ACS72981 Hall-based Current Sensor
