modSCT010T-D – 10A AC Current Sensor
ID: 1195427
5902186300606
zł32.03
Tax included
zł26.04 tax excl.
SCT010T-D 10A 5V AC Current Sensor. Enables measurement of high AC currents. modSCT010T-D
Description

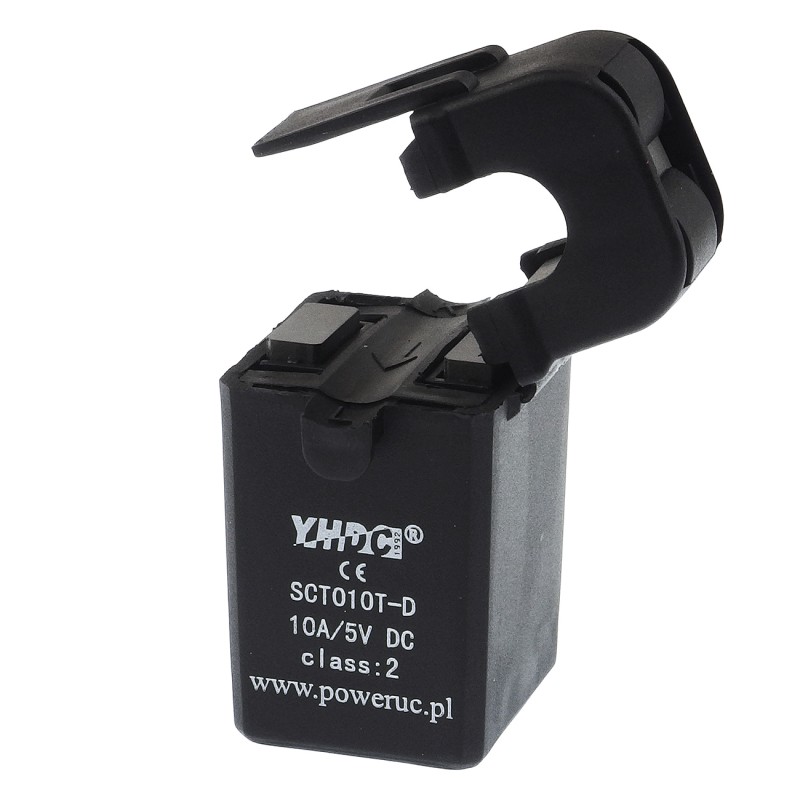

The SCT010T-D current sensor enables the measurement of high AC currents. It features a safety lock buckle, a built-in rectifier, and screw terminal connections. It operates based on a split-core current transformer principle.
Features
- Mounting type: Free hanging (in-line),
- Measurement range: 10 A,
- Output range: 5 V,
- Accuracy: 2%,
- Core material: Ferrite,
- Applicable standards: GB20840-2014,
- Operating temperature range: -25°C ~ +60°C,
- Storage temperature range: -30°C ~ +90°C,
- Frequency range: 50 Hz – 1 kHz,
- Dielectric strength:
- Input (bare conductor) / Output: AC 800 V / 1 min / 50 Hz
- Output / Housing: AC 3.5 kV / 1 min / 50 Hz
1195427
Data sheet
- Interface
- Sygnał analogowy
- Zakres pomiarowy
- 0 - 10 A
- Sposób podłączenia
- Nieinwazyjny
- Operating temperature
- -25 ℃ ~ + 60 ℃
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
