Solid-State Laser Radar - laser sensor 160x60px FOV 108°x40°
ID: 1196960
zł1,388.06
Tax included
zł1,128.50 tax excl.
Laser radar based on cwToF technology and metasurface lenses, offering depth maps and IR images in 160x60 pixel resolution and a wide viewing angle of 108°x40°. Thanks to its solid-state construction, range up to 4.5 m and resistance to strong lighting (up to 60 Klux), it is ideal for applications such as robotics, obstacle avoidance systems, access control and volume measurement. DFRobot DFR1177
Description

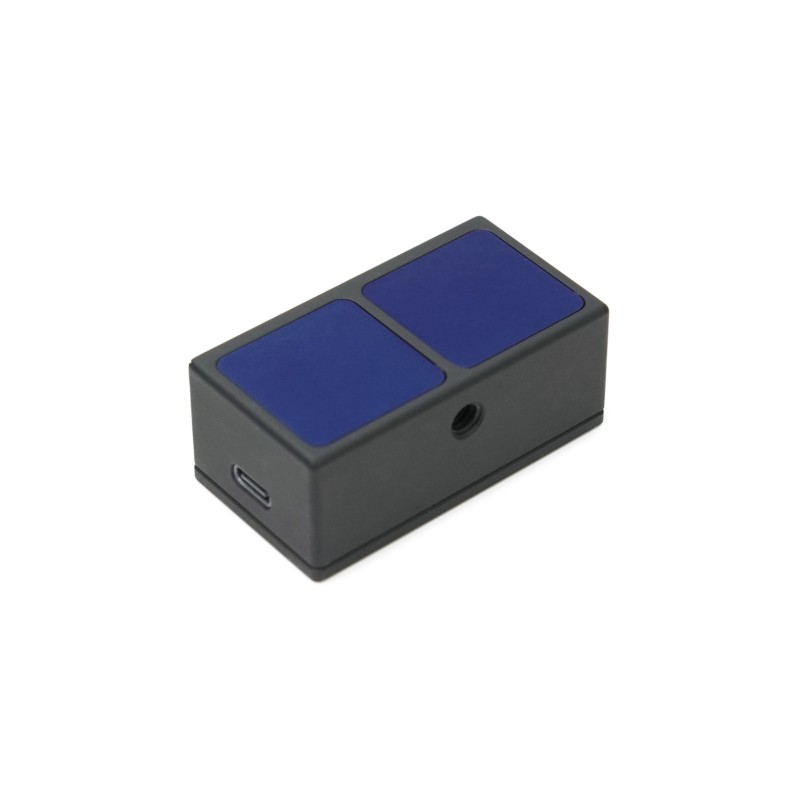

The MMPT044-940 Pure Solid-State LiDAR is an advanced measurement device based on metasurface lens technology and the continuous-wave Time-of-Flight (cwToF) principle. Thanks to its state-of-the-art optical and electronic design, it provides wide-angle and precise distance measurements. The device outputs both depth maps and infrared grayscale images, making it ideal for applications requiring accurate spatial representation.
It offers a resolution of 160x60 pixels and a wide field of view of 108° x 40°, enabling coverage of a large measurement area. It can measure distances up to 4.5 meters and performs reliably even under strong lighting up to 60Klux, making it suitable for both indoor and outdoor use. The solid-state construction, free of moving parts, ensures high durability and reliability during long-term operation. The device communicates via UART and USB 2.0 interfaces, simplifying integration with various systems. It is suitable for volume measurement, access control, people counting, obstacle avoidance systems, and unmanned vehicles. Thanks to its functionality and compact housing, it is a great solution for modern automation and robotics systems.
Features
- Measurement range: 0.1 to 4.5 m (white board, 90% reflectivity)
- Measurement accuracy: ±3 cm (0.1–3 m), ±1% (3–4.5 m)
- Resolution: 160x60
- Frame rate: 15 FPS
- Field of view (horizontal): 108°
- Field of view (vertical): 41°
- Horizontal angular resolution: 0.675°
- Vertical angular resolution: 0.683°
- Ambient light resistance: up to 60Klux
- Protection rating: IP54
- Supply voltage: 5V
- Operating temperature: -20°C to 60°C
- Storage temperature: -40°C to 85°C
- Eye safety certification: IEC60825 Class 1
- Dimensions: 61 × 33 × 24 mm
Kit contains
- MMPT044-940 Pure Solid-State LiDAR
- USB Type-C to USB Type-A Cable
1196960
Data sheet
- Interface
- USB
- Type of sensor
- Laser
- Minimum distance
- 10 cm
- Maximum distance
- 450 cm
