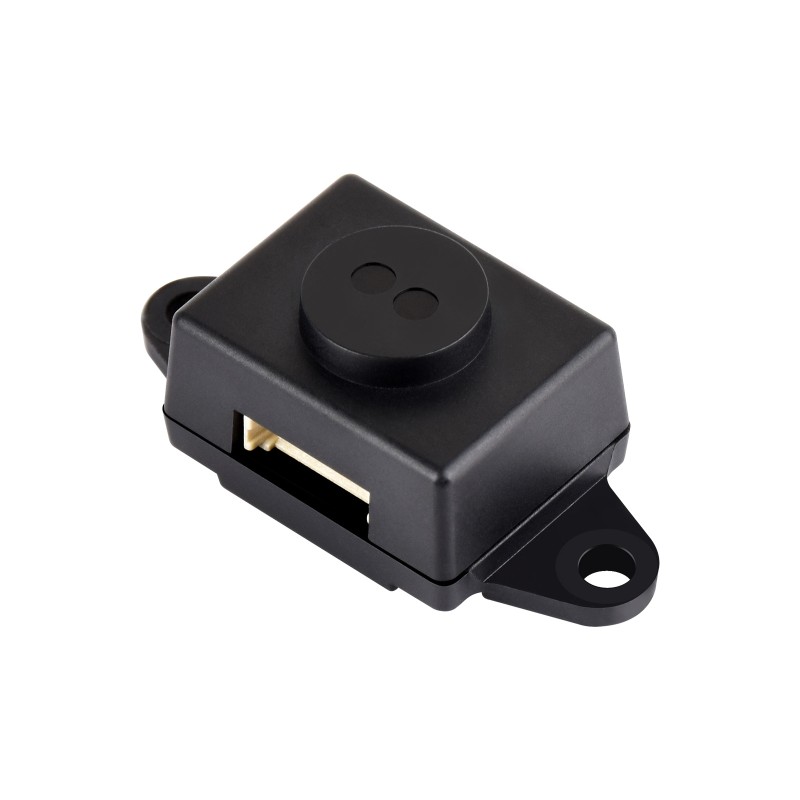

Main view
search
  • Main view
  • Bottom view
  • Connector close-up
  • Bottom view – top perspective
  • Front view – top perspective
ID: 1202588
zł82.84
Tax included

zł67.35 tax excl.

Time of Flight laser distance sensor based on a single-point D-TOF laser sensor, supporting UART communication, designed for non-contact distance measurement in embedded systems and robotics. Waveshare TOF MINIF Range Sensor

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

TOF Mini-F Laser Range Sensor is a compact distance sensor using Time of Flight (TOF) technology, intended for precise, non-contact distance measurement. The module is based on a single-point D-TOF laser sensor, which determines distance by measuring the time taken for a light pulse to travel from the emitter to the target and back to the receiver.

Communication with the host controller is provided via a UART interface, allowing easy integration with microcontrollers, single-board computers, and embedded systems. The TOF measurement principle ensures stable results regardless of object color or surface texture, while the absence of mechanical components contributes to high reliability and long service life.

The sensor is suitable for use in mobile robotics, obstacle avoidance systems, distance measurement applications, automation, IoT devices, and educational projects where fast, repeatable distance measurement in a compact form factor is required.

Features

  • Sensor
    • Sensor type: Laser Time of Flight
    • Measurement technology: Single-point D-TOF
    • Measuring range: 0.02 m ~ 20 m
    • Measurement accuracy: <1 m ±20 mm, >1 m ±2%
    • Field of view (FOV): 3° ±0.5°
    • Refresh rate: 30 Hz
    • Ambient light tolerance: up to 100K lux
    • Laser safety class: Class 1
    • Laser wavelength: 940 nm
  • Interface and communication
    • Communication interface: UART
    • Baud rate: 115.2 Kbps
    • Logic level: 3.3 V
    • Connector type: JST SH1.25 4-pin
  • Power supply
    • Supply voltage: 4 V ~ 5.6 V
    • Power consumption: 170 mW
    • Operating current: 34 mA at 5.0 V
  • Operating conditions
    • Operating temperature: -20°C ~ +70°C
    • Operating humidity: 35% ~ 80% RH
    • Storage temperature: -40°C ~ +80°C
  • Physical properties
    • Enclosure material: PC
    • Dimensions: 35.5 x 16.5 x 13.5 mm
    • Weight: 3.6 g

Kit includes

  • 1x TOF Mini-F Range Sensor
  • 1x SH1.25 4-pin cable, 100 mm
