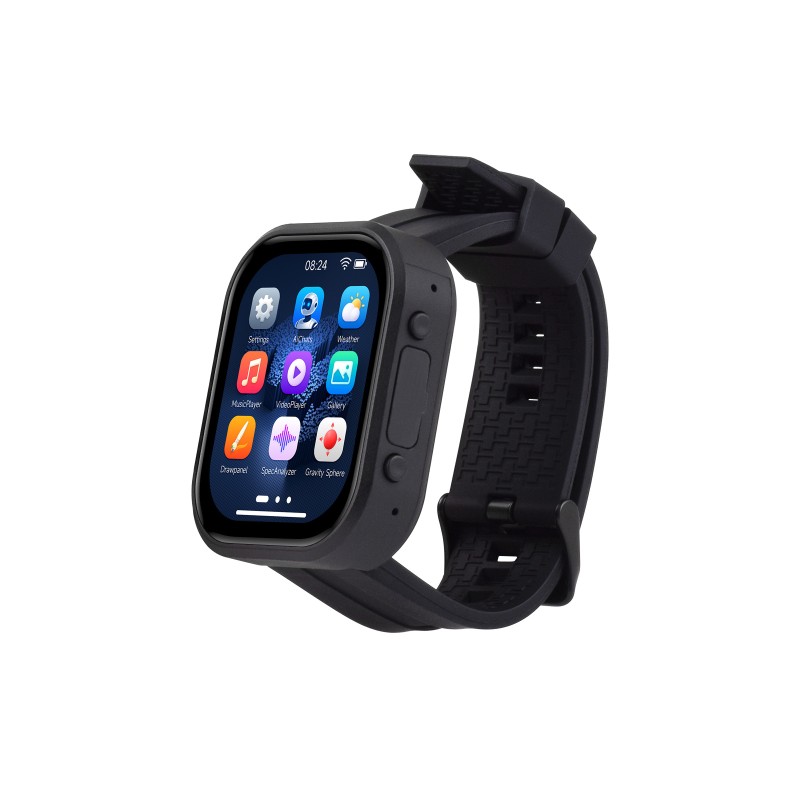

ESP32-S3 development board with 2.06-inch AMOLED touch display and battery for smartwatch applications - Waveshare 31957
ID: 1199742
zł145.04
Tax included
zł117.92 tax excl.
ESP32-S3-Touch-AMOLED-2.06 is a complete development platform for designing wearable devices with an AMOLED display, touch control, audio, wireless connectivity, and AI features. Thanks to its compact design and built-in battery, it is suitable as a foundation for smartwatches, data loggers, and IoT devices.
Description
Smartwatch development board based on the ESP32-S3R8 microcontroller with a dual-core Xtensa LX7 240 MHz processor, integrated with a 2.06-inch capacitive AMOLED display with a resolution of 410 × 502 px, enclosed in a compact housing with strap mounting capability. The module is equipped with Wi-Fi and Bluetooth 5 (LE) connectivity, a 6-axis IMU, RTC, audio codec, as well as a TF card slot and an integrated 3.7 V lithium battery (MX1.25). It supports offline voice interactions and cooperation with large online language models (e.g., DeepSeek, Doubao). Thanks to the AMOLED display and support for ESP-IDF and Arduino, the board is dedicated to building modern HMI interfaces and intelligent wearable devices.
Features
- Microcontroller ESP32-S3R8 (Xtensa LX7, 2×240 MHz)
- 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 32 MB Flash
- AMOLED display 2.06″, 410 × 502 px, 16.7M colors
- Built-in CO5300 controller (QSPI) and FT3168 touch IC (I2C)
- Viewing angle 178°, brightness 600 cd/m², contrast 100000:1
- 6-axis IMU QMI8658 (accelerometer + gyroscope)
- RTC PCF85063 powered by battery via AXP2101
- Audio codec ES8311 + echo cancellation chip ES7210
- Support for Wi-Fi 2.4 GHz (802.11 b/g/n) and Bluetooth 5 (LE)
- USB Type-C port for power and communication
- BOOT and PWR buttons, UART, I2C, USB pads
- MicroSD (TF) card slot
- Support for offline speech recognition, integration with AI platforms
- Battery power 3.7 V (MX1.25 lithium battery included)
- Case with strap mount, strap length: 250 mm
- Device dimensions: 50.8 × 42 × 13.6 mm
Included
- ESP32-S3-Touch-AMOLED-2.06 ×1
- Watch strap ×1
- MX1.25 lithium battery 3.7 V ×1
