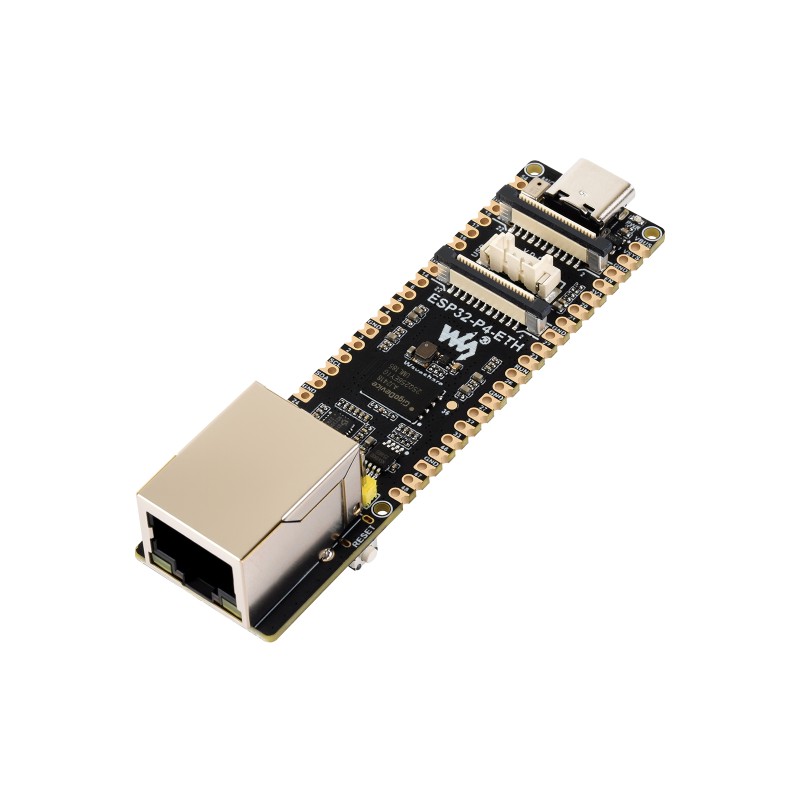

  • Main view
  • Top view
  • Bottom view
  • Angled view - front of the board
  • Angled view - back of the board
ID: 1200128
zł69.24
Tax included

zł56.29 tax excl.

Development board based on the high-performance ESP32-P4 microcontroller, equipped with a 100 Mb/s RJ45 Ethernet port and a wide range of multimedia and communication interfaces. The Waveshare 32086 version includes only the ESP32-P4-ETH board without soldered pin headers, intended for custom assembly and integration in HMI, edge computing and IoT projects. Waveshare ESP32-P4-ETH

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-P4-ETH is a compact and flexible development board designed for applications requiring high computing performance, multimedia processing and stable wired network communication. The board is powered by the ESP32-P4 microcontroller with a dual-core 32-bit RISC-V architecture, offering advanced capabilities for image, audio and data processing.

The board features a 100 Mb/s RJ45 Ethernet port providing reliable network connectivity, as well as a USB Type-C port used for power supply and programming. It is equipped with 32 MB PSRAM integrated in the ESP32-P4NRW32 chip and 32 MB NOR Flash memory, enabling the development of multimedia, HMI and edge AI applications.

Available interfaces include MIPI-CSI for camera connection, MIPI-DSI for display support, USB OTG 2.0 High Speed and a TF (microSD) card slot with SDIO 3.0 interface. This version does not include factory-soldered pin headers, allowing flexible selection and mounting of connectors depending on project requirements.


  1. ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
  2. 100M RJ45 Ethernet port
  3. 32MB Nor Flash
  4. Display interface - MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screens
  5. Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
  6. Type-C port - for power supply, program burning
  7. Onboard microphone
  8. Speaker header - MX1.25 2P connector, supports 80 2W speaker
  9. 4PIN USB header - USB OTG 2.0 High Speed interface
  10. PoE module & power supply header
  11. BOOT button - Press it when powering on or resetting to enter download mode
  12. RST Reset button
  13. Power indicator
  14. TF card slot - SDIO 3.0 interface protocol

Features

  • Microcontroller: ESP32-P4
  • Architecture: 32-bit RISC-V, dual-core
  • PSRAM memory: 32 MB (integrated in ESP32-P4NRW32)
  • Flash memory: 32 MB NOR
  • Internal memory: 128 kB HP ROM, 16 kB LP ROM, 768 kB HP L2MEM, 32 kB LP SRAM, 8 kB TCM
  • Network connectivity: 100 Mb/s RJ45 Ethernet
  • USB: USB Type-C (power supply and programming), USB OTG 2.0 High Speed
  • Multimedia interfaces:
  • MIPI-DSI (2-lane) - display interface
  • MIPI-CSI (2-lane) - camera interface
  • Integrated ISP, hardware H.264 encoder, JPEG codecs, PPA
  • Audio: built-in microphone, MX1.25 speaker connector (8 Ω / 2 W)
  • External memory: TF (microSD) card slot, SDIO 3.0
  • GPIO: 2 x 20 pin headers, 27 programmable GPIO lines
  • Security: Secure Boot, Flash encryption, cryptographic accelerators, TRNG, hardware privilege separation
  • Power supply: USB Type-C
  • Mounting: no soldered pin headers
  • Applications: HMI, edge computing, edge AI, multimedia, automation, IoT

Kit includes

  • ESP32-P4-ETH development board - 1 pc
  • 20-pin pin headers - 2 pcs (for self-soldering)
